YOKOGAWA SC202G - Customer Maintenance Parts List

Customer
Maintenance
Parts List
©Copyright 2007, 1st Edition: Apr, 2007 (YK)
Subject to change without notice.
CMPL 12D08B02-03E
2nd Edition : Aug.2007 (YK)

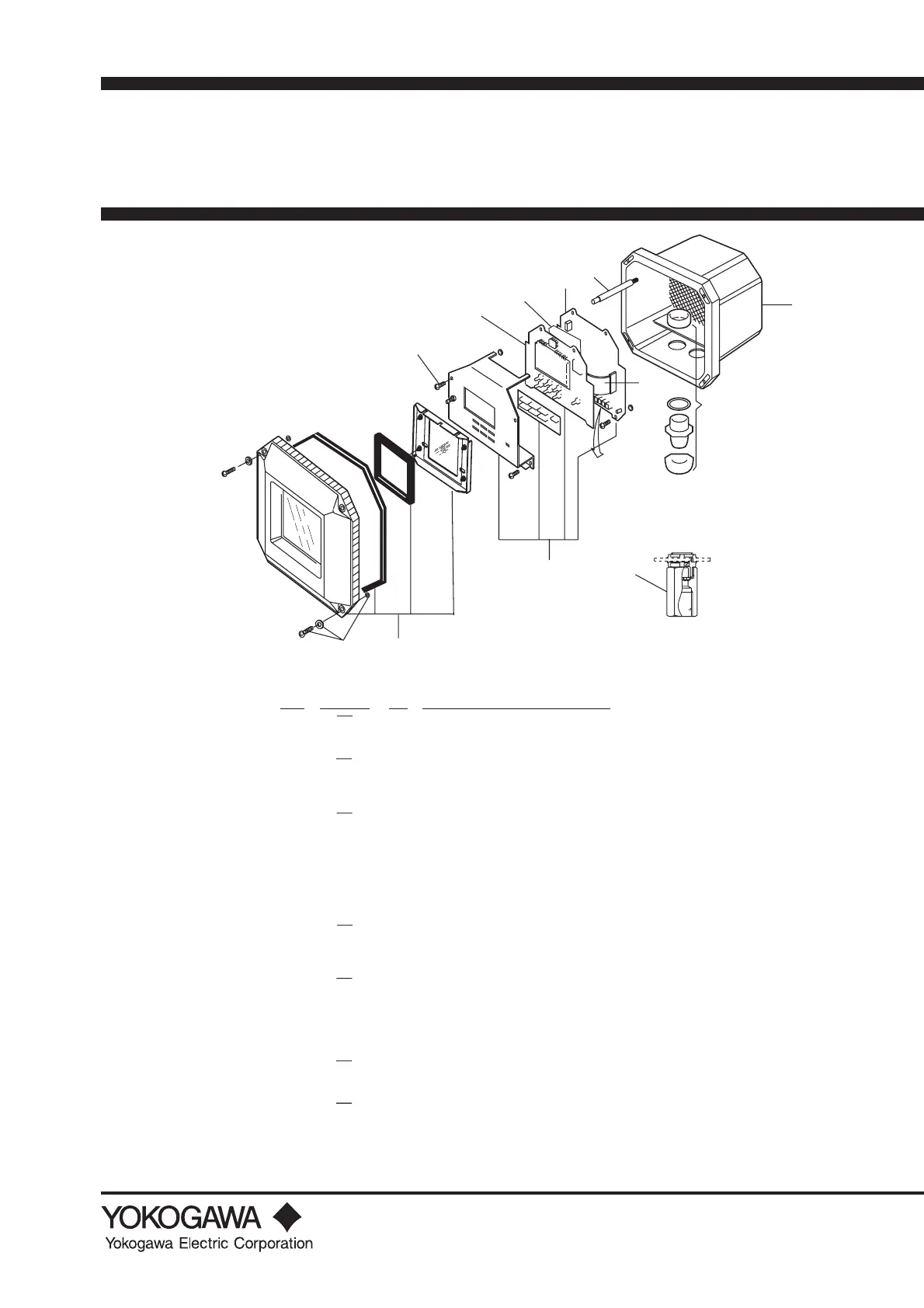

Model SC202G [Style: S3]
Conductivity and Resistivity Transmitter
1
5
2
8
9
10
14
Item Part No. Qty Description
1 Cover Assembly
K9315CA 1 Polyurethane Coating
K9315CN 1 Epoxy-polyester Coating
2 Internal Works Assembly with amplifier assembly
K9661CD 1 For mA + HART
K9661CE 1 For FF
K9661CF 1 For Profibus
3 Housing Assembly
K9661HA 1 Polyurethane Coating
K9661HB 1 Epoxy-polyester Coating
4 L9811FV 2 Cable Gland Assembly
5 K9660AQ 1 Flat Cable
6 A1726JD 1 Pin Terminal Unit 3 terminals type
7 K9184AA 1 Screw Terminal Unit when /TB specified
8 K9661HR 2 Stud
*9 Analog Board Assembly
K9661SA 1 For mA + HART
K9661SC 1 For FF/Profibus
*10 1 Digital/Display Board
K9661CV 1 For mA + HART
K9661CW 1 For FF/Profibus
11 K9660YQ 1 Screw Assembly to fix amplifier
12 K9660YP 1 Stainless steel screw assembly to fix cover
13 Adapter Assembly
K9414DH 1 For G1/2 screw when /AFTG specified (2 units).
K9414DJ 1 For 1/2NPT screw when /ANSI specified (2 units).
*14 Comm. Board Assembly
K9661MC 1 For FF
K9661NC 1 For Profibus
* Do not exchange these parts. Call service personnel.
