IM 12D08B02-01E
Appendix 2-3
Cables, terminals and glands
The SC202 is equipped with terminals suitable for the connection of finished cables in the O.D. range:
6 to 12 mm. The glands will form a tight seal on cables with an outside diameter in the range of 6 to 12
mm. Requirement of connecting with external instruments shown below.

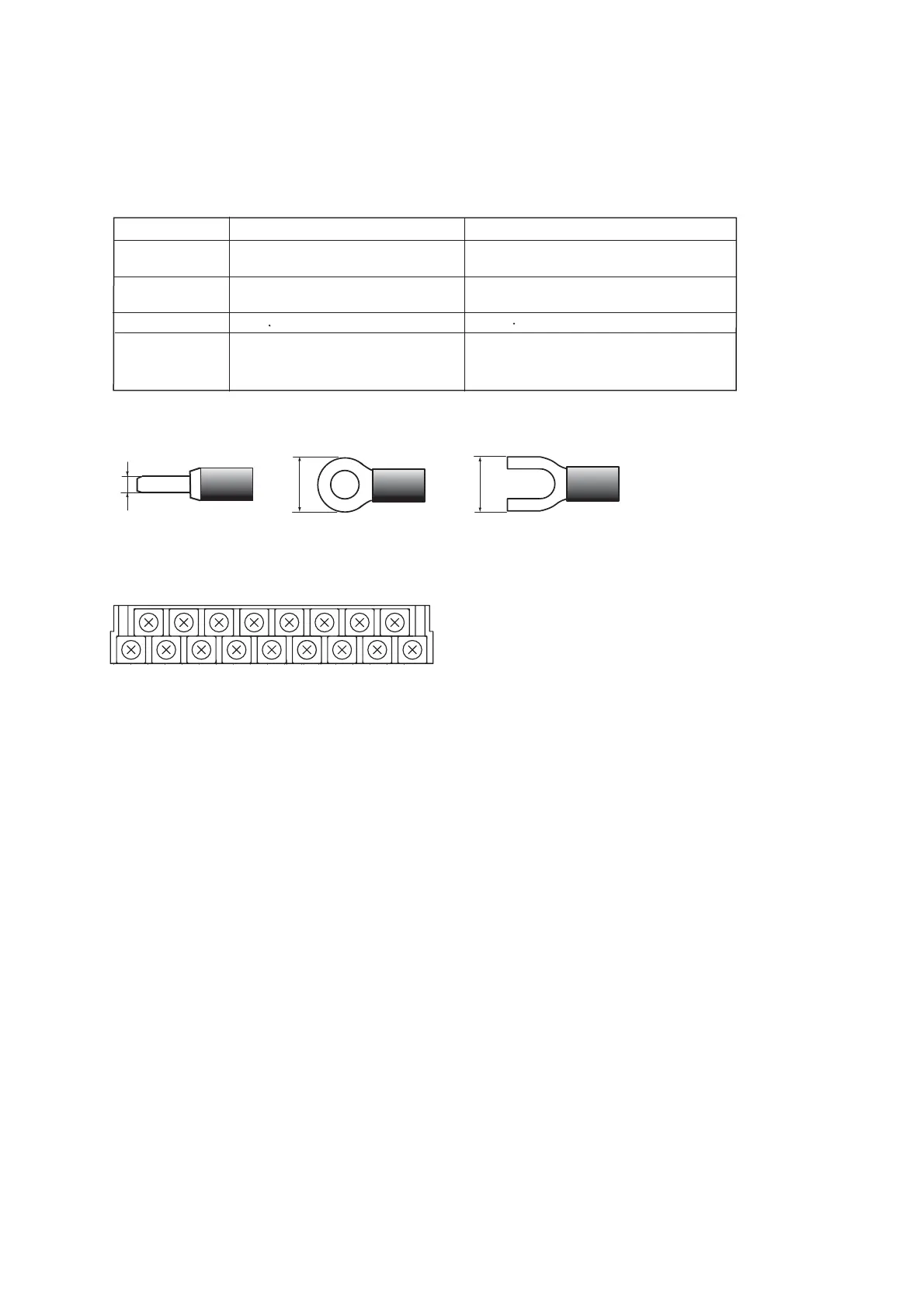

Terminal for pin cable terminal
Pin-shaped crimp contact
with sleeve insulator
max. 2.5 mm
0.5 N m or less
Weidmuller Co., Ltd. made:
H0.34/10, H0.5/12, H1/12, H1.5/12S
Screw terminal (option /TB)
Ring-shaped or fork-shaped
crimp contact
Crimp contact shown as the figures
under this table, which meets M3 screw
1.35 N m (recommended)
JST, Mfg. Co., Ltd. made:
VD1.25-3 (Ring shape),
VD1.25-S3A (Fork shape)
Crimp contact
for cable
Usable contact
Torque for fixing
Example of
crimp contact
*
*
Note: Other crimp contact may be required , depending on core-cable diameter .
T3.2E.eps
8.3mm or less
8.3mm or less
F3.7.EPS
2.5mm or less
Pin-shaped terminal
Ring-shaped terminal
Fork-shaped terminal
Connection terminal shown below when /TB option specified.
G+ 161412
-
151311
To Next Page
