4-9

IM WT5000-01EN

When the Advanced Frequency Filter Setting Is On

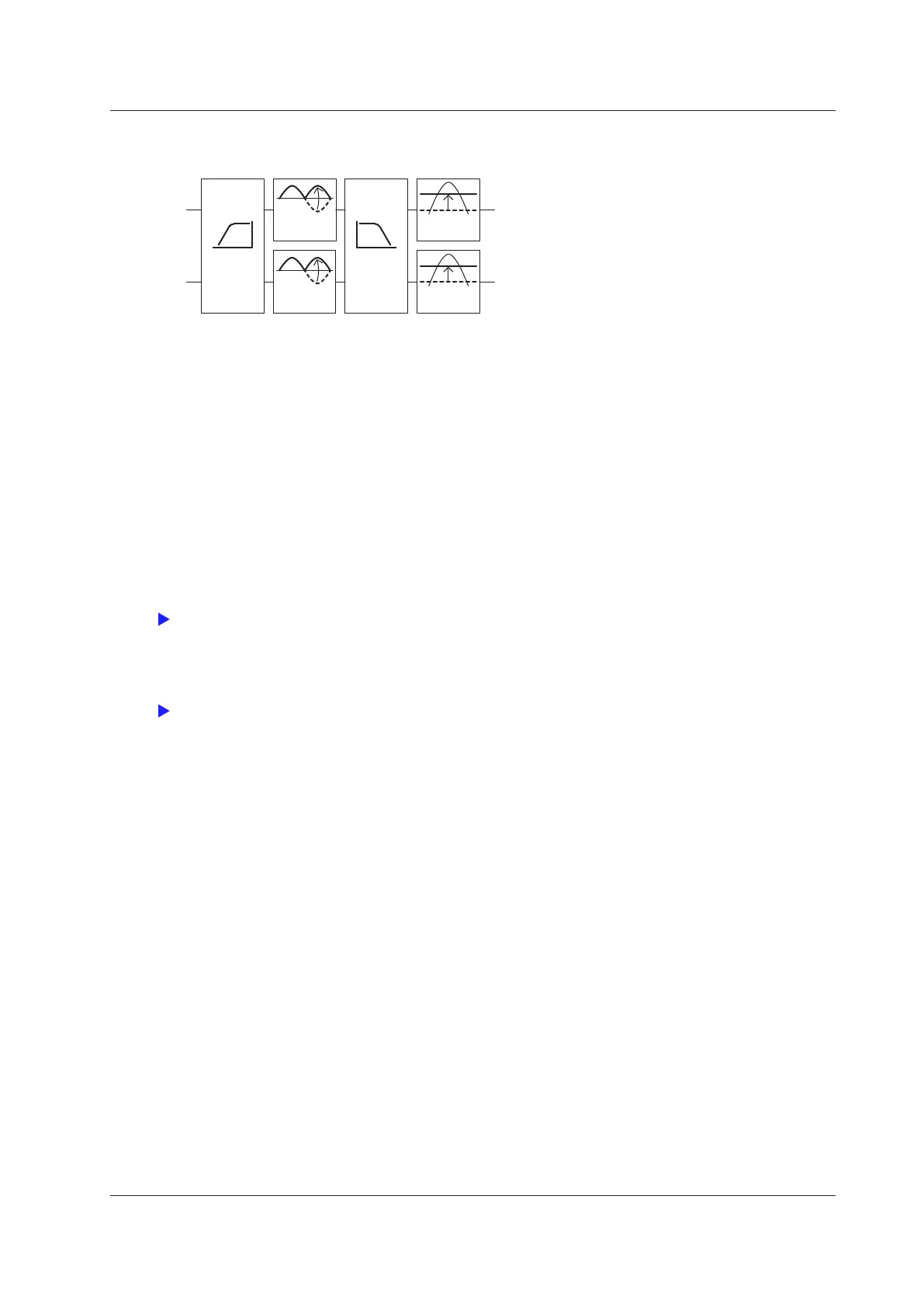

The frequency filter consists of a high-pass filter, a rectifier, a low-pass filter, and a cross level.

Level

Rectifier

HPF

Sync Src

FreqU

Sync Src

FreqI

LPF

HPF

• Turning the Frequency Filter (HPF) On and Off (Freq Filter)

Turn the frequency filter (HPF) on or off.

• HPF Cutoff Frequency (CutOff)

Set the HPF cutoff frequency in the following range.

0.1 Hz, 1 Hz, 10 Hz, 0.1 kHz to 100.0 kHz (in 0.1 kHz steps)

• Voltage Rectifier and Current Rectifier (Voltage Rectifier/Current Rectifier)

Select whether to rectify the voltage and current (on/off).

* If rectifier is set to ON, reactive power Q, phase difference Φ, and QΣ measurements may change. See

appendix 1 in the Getting Started Guide, IM WT5000-03EN.

• Turning the Frequency Filter (LPF) On and Off (Freq Filter)

This is the same as turning the frequency filter on and off in the input settings (basic measurement

conditions). The setting is shared.

Click here.

• LPF Cutoff Frequency (CutOff)

This is the same as the frequency filter cutoff frequency in the input settings (basic measurement conditions).

The setting is shared.

Click here.

• Voltage Cross Level and Current Cross Level (Voltage Level/Current Level)

You can set the voltage cross level and current cross level in the following ranges.

• When the rectifier is off: −100.0% to 100.0%

• When the rectifier is on: 0.0% to 100.0% (absolute value)

• Setting All Input Elements Collectively

If you select the top cell of each item in the table, you can set the item collectively on all input elements.

4 Input Settings (Advanced/Options)
