6 - 2
Operator's Station
Tachometer/Hourmeter
The tachometer/hourmeter is used to view the engine's speed (RPM). The hourmeter displays
the machine's operating hours. The machine's service and maintenance schedule is based
on the machine hours.
4-in-1 Gauge/3-in-1 Gauge
This gauge gives the operator a variety of engine operating conditions. The 4-in-1 gauge
displays the engine's coolant temperature, the engine oil pressure, the fuel tank level and
the battery voltage. The 3-in-1 gauge is used on machines fueled using CNG/LPG and
displays the engine's coolant temperature, the engine oil pressure, and the battery voltage.

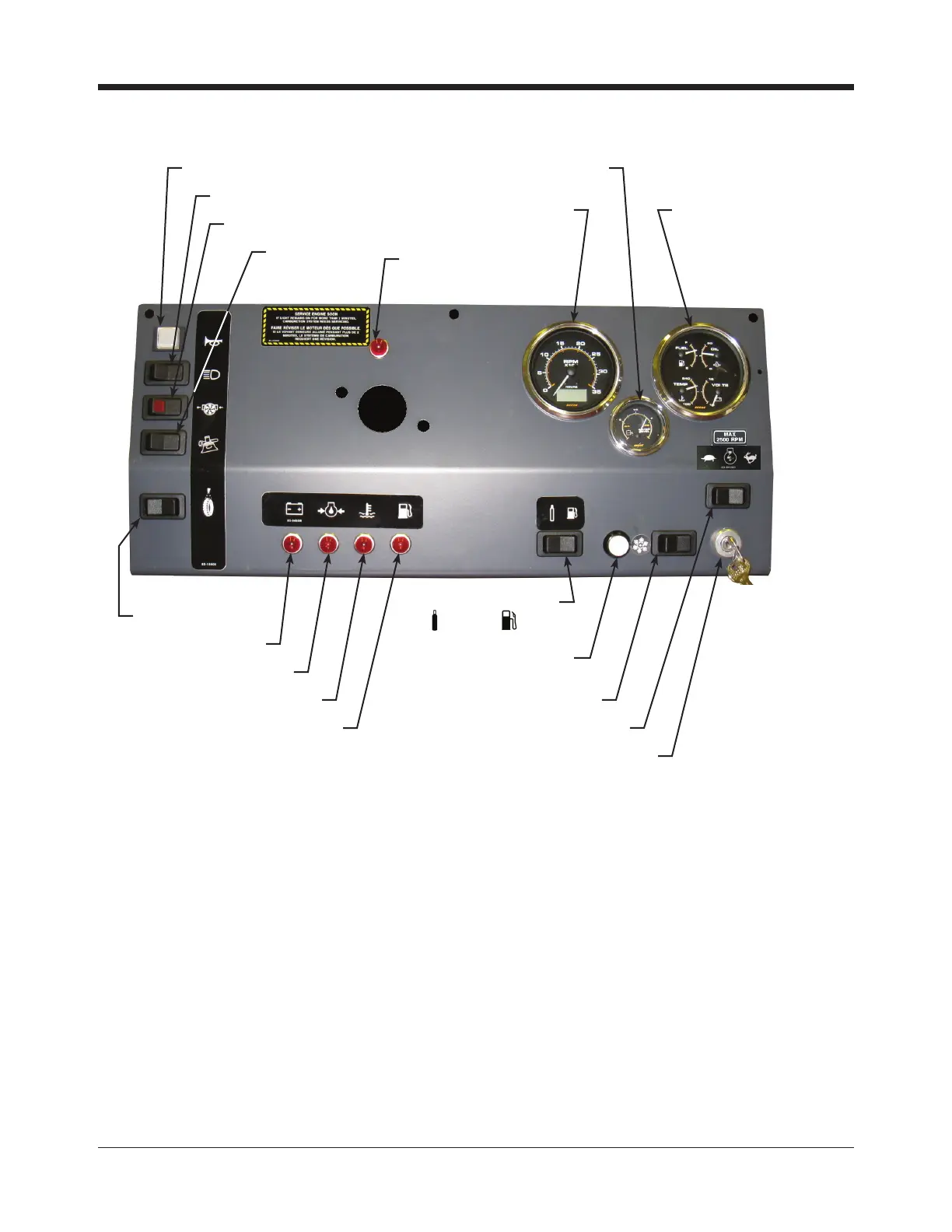

Figure 6.2 Instrument Panel
Board Brush
Wash Water Pump (Option)
Lights
Horn
Tachometer /
Hour Meter
4-in-1 / 3-in-1
Gauge
Malfunction Indicator
Light (MIL)
Ice Making Water Level Gauge (Option)
Engine Temperature Light
Oil Pressure Light
Alternator Light
Low Fuel Light (Option)
Fuel Selector Switch
CNG / LPG
Snow Breaker
Manual Override
Hydraulic Snow Breaker
Engine Speed Switch
Ignition
Tire Wash (option)
Revised Jan/12
