Water System
8.
Water System
A. Pipe A (Figure 8.2) supplies water from the wash water tank to the conditioner.
B. Hose B (Figure 8.1) carries water picked up in the conditioner, via pipe B,
from the water pump back to the wash water tank. The water ows through
the ltering screen at which point the water can be recirculated.
C. Hose C (not shown) attached to pipe C (Figure 8.2) supplies water through
the ice making water valve from the ice making water tank to conditioner.
Optional Connection Valve
D. Wash water transfer valve D (Figure 8.2) may be opened to connect the wash
water tank to the ice making water tank for additional ice making water
capacity. Flush wash water tank clean before opening the valve when using
this system. Important: Do not open this valve until the ice making water
tank is half empty. Tank distortion can occur if the valve is opened while
the tank is full.

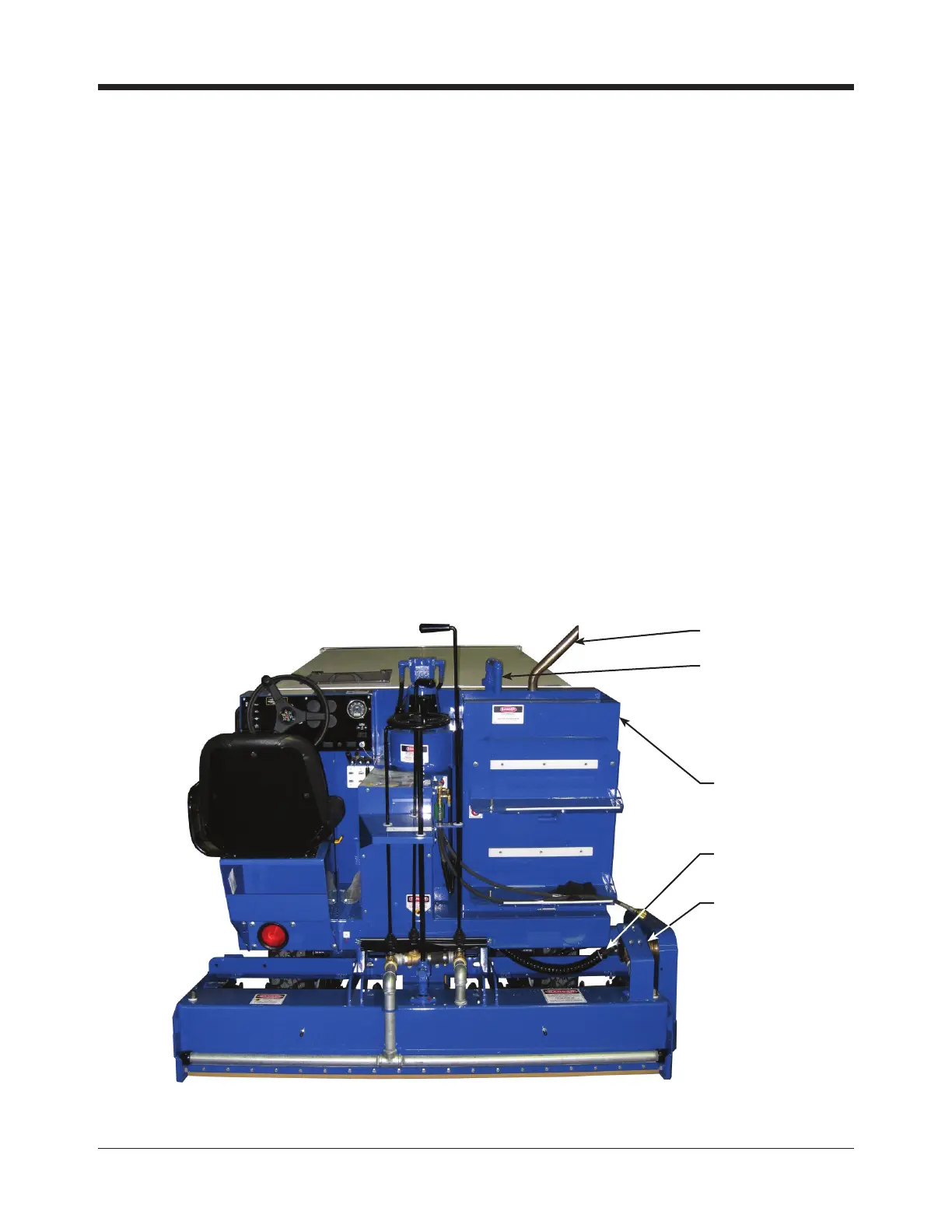

Figure 8.1 Water System
Wash Water Tank
Wash Water Pump
Wash Water
Return Hose (B)
Wash Water Return
Exhaust Pipe
