Maintaining the Cutting Blade
Holding and Securing the Blade
Blade Holding Bar (5K-78890) Blade (5K-33630)
Bolt Tightening Sequence

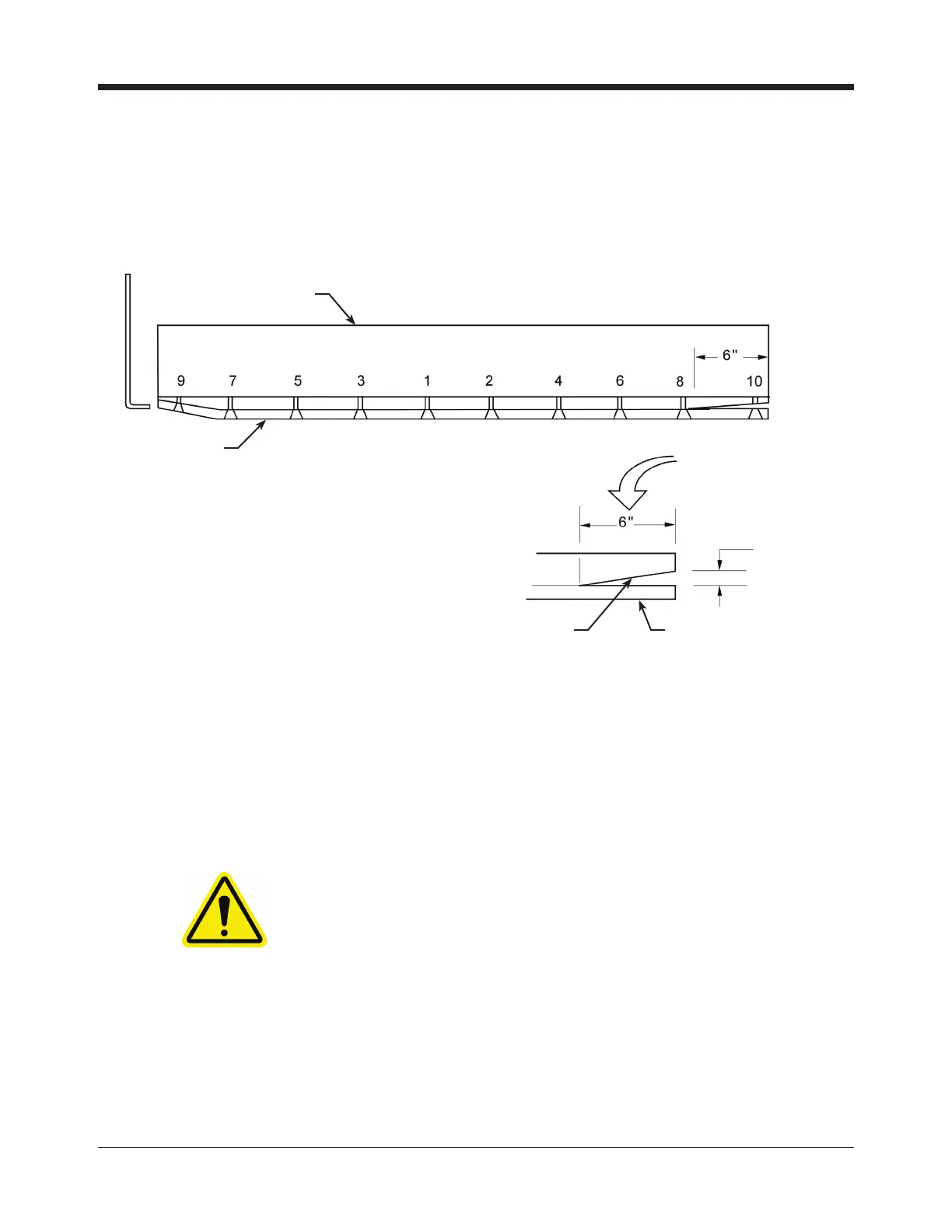

Figure 9.4 Blade Holding Bar
The ends of blade holding bar are machined upward approximately 0.08" so that one cut of
the ice is feathered into the adjoining cut.
When attaching blade, tighten two middle bolts rst, then work to outside.
WARNING!
Blade is extremely sharp. Avoid being cut by handling
as much as possible in scabbard. Place blocks under
conditioner while changing the blade.
0.08"
Blade Holding Bar
Blade
Machined Surface on Blade Holding Bar Blade
