9 - 6
Maintaining the Cutting Blade

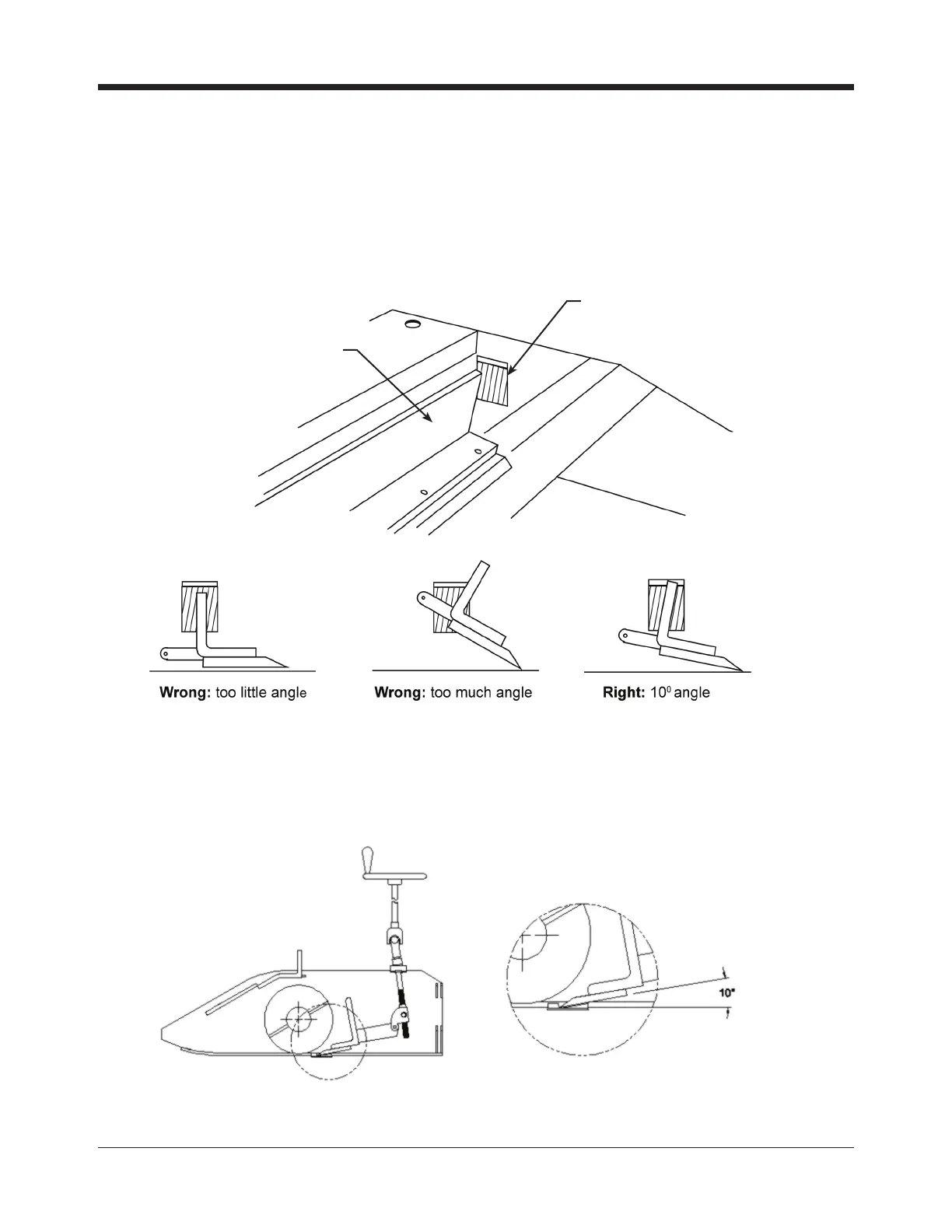

Blade Angle Adjustment Decal
A blade angle decal is located on the inside of the conditioner left side plate (see Figure
9.6). When the blade holding bar is lined up, parallel to the series of lines, the blade angle
is approximately 10
°
.
Figure 9.6 Blade Angle Adjustment Decal
Figure 9.7 Blade Angle Adjustment Tool
The blade angle gauge (84-01100) may also be used. Place the angled face of the tool on
the underside of the blade. When the at edge of the tool is parallel to the runners, the blade
is angled correctly (see Figure 9.7).
Blade Holding Bar
Blade Angle Decal
Blade Angle Decal
