ZANTIA ITACA - 4 Instructions for Use; Display

38
Mod. ITACA-TROIA rev 01
Instructions for use
translated from the original text
IT IT
FR
FR
ES ES
EN EN
4 INSTRUCTIONS FOR USE

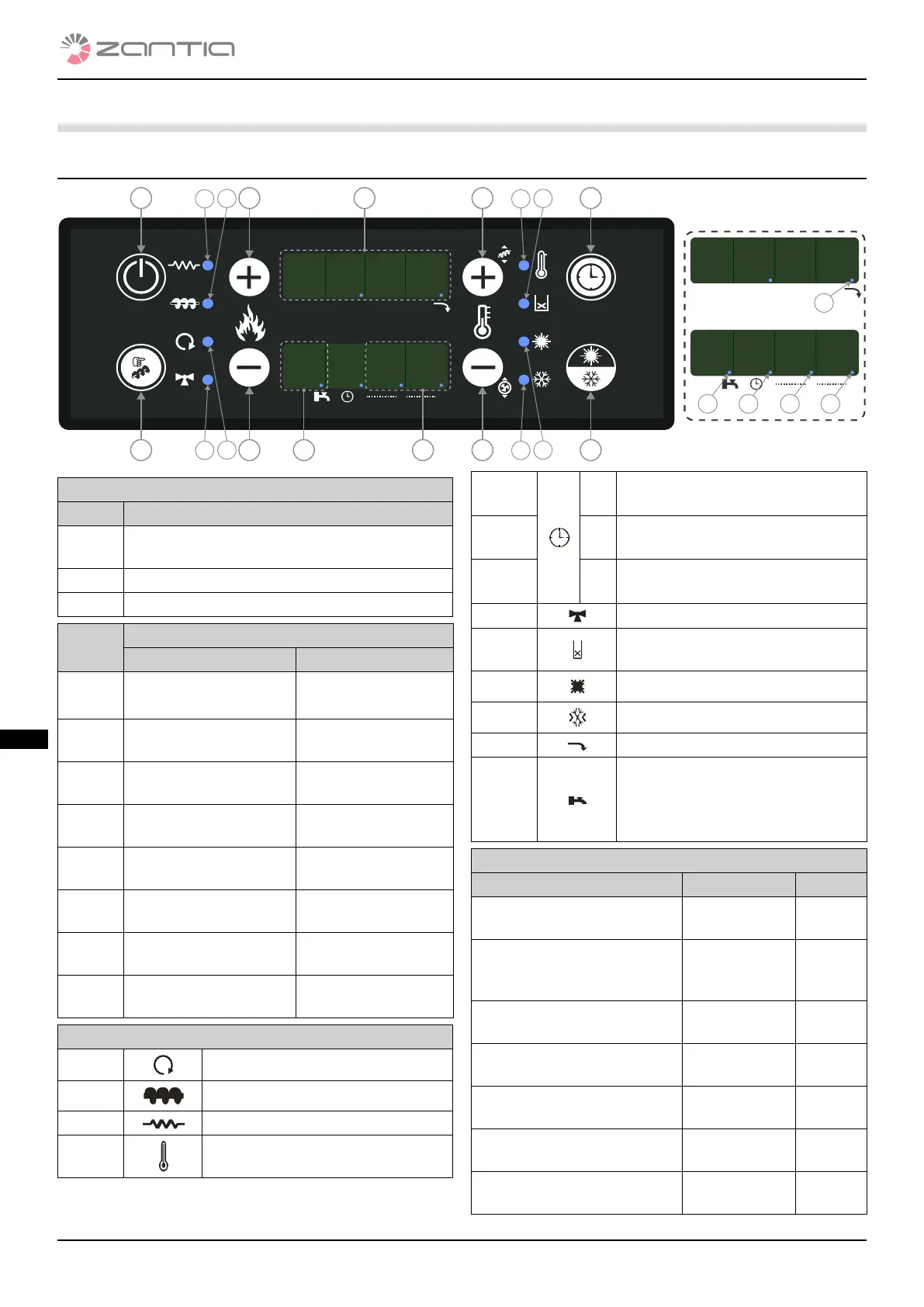

4.1 DISPLAY
ESC
SET DISP
1
G S W
1850
3 8 75
K1 L3 L2
L8 L1
L4 L9
G S W
1850
3 8 75
L12
L7L6L5L13
L11 L10
K2 K3D1 K4
K7K6 D2 D3 K8K5
Data displayed on the main screen:
Display Displayed info
D1 Time, operating status, error, menu, sub-menu,
data value
D2 Power, data code
D3 Main temperature, data code
Key Function
Click Press and hold
K1 Exit menu ON / OFF / reset
Block status
K2 Change combustion
power (+)
-
K3 Change thermostat (+)/
data increase
Pellet feeding
correction
K4 - Chrono time slot
enabling
K5 User 2 menu access /
data saving
Pellet manual loading
K6 Change combustion
power (-)
-
K7 Change thermostat (-)/
data decrease
Smoke fan correction
K8 Displays Summer/winter
operation selection
Led
L1 LED On: pump active
L2
LED On: auger in ON interval
L3
LED On: glow plug ON
L4 LED On: thermostat temperature
reached
L5
G
LED On: daily programming
L6
S
LED On: weekly programming
L7
W
LED On: weekend programming
L8
LED On: valve active
L9
LED On: no material in the tank
L10 LED On: summer mode selected
L11
LED On: winter mode selected
L12
LED On: pellet loading motor ON
L13 LED On: domestic water required
(closed contact).
(Only for hydraulic systems that use
a ow switch)
Alarms
Description System Status Code
Safety thermostat triggered:
signal also when stove is o
Block status Er01
Safety pressure switch
triggered: signal with
combustion fan on
Block status Er02
Switch-o due to low-
temperature smoke
Block status Er03
Switch-o due to water
overtemperature
Block status Er04
Switch-o due to smoke
overtemperature
Block status Er05
Open pellet thermostat
(brazier back-draught)
Block status Er06
Encoder error: no encoder
signal
Block status Er07
