AFMNA0AA – EPS-BLI HYG – User Manual Page – 9/75
3 DRAWINGS
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
QUOTE SENZA TOLLERANZA/Dim. without tolerance:PESO/Weight:DUREZZA/Hardness:
TECNICO/Technician:
NOTE:
Notes:
FORMATO/Size:DIMENS./Dim.: COD. PROD./Part number:SCALA/Scale:
RUGOSITA'/Roughness:
(UNI-ISO 468/UNI 4600) (ISO 13715)
SPIGOLI/State of edges:
RAGGI NON QUOTATI/Radius not dim.:
SMUSSI NON QUOTATI/Chamfer not dim.:
TRATTAMENTO TERMICO/Thermal treatment: TRATTAMENTO SUPERFICIALE/Surface treatment:
mm
SFORMI FACCIA GEN./Taper not dim.:
DISEGNO NUM./Drawing n.:
VISTO/Visa:
DATA/Date:
PAGINA/Page: SERIE/Serie:
DESCRIZIONE/Description:
± 1
Ra 3.2
-0.5
+0.1
1°
PULITO DAI RESIDUI DI LAVORAZIONE
CLEANED FROM PROCESSING REMNANTS
A.C.
TIPO DI MATERIALE/Material type:
This drawing is a ZAPI s.p.a. property. Its reproduction is prohibited except for a written authorization. The only allowed use is that relative to the repairs of ZAPI products.
POVIGLIO (RE) - ITALY
PESO SPEC./Density:
From 0.3 to 0.7X45°
From R 0.3 to R 0.7
1:2
A3 /
HYSTER YALE EPS-BLI + BOISE + SUMITOMO
1/1 SER
14/03/18
AFMNA70B

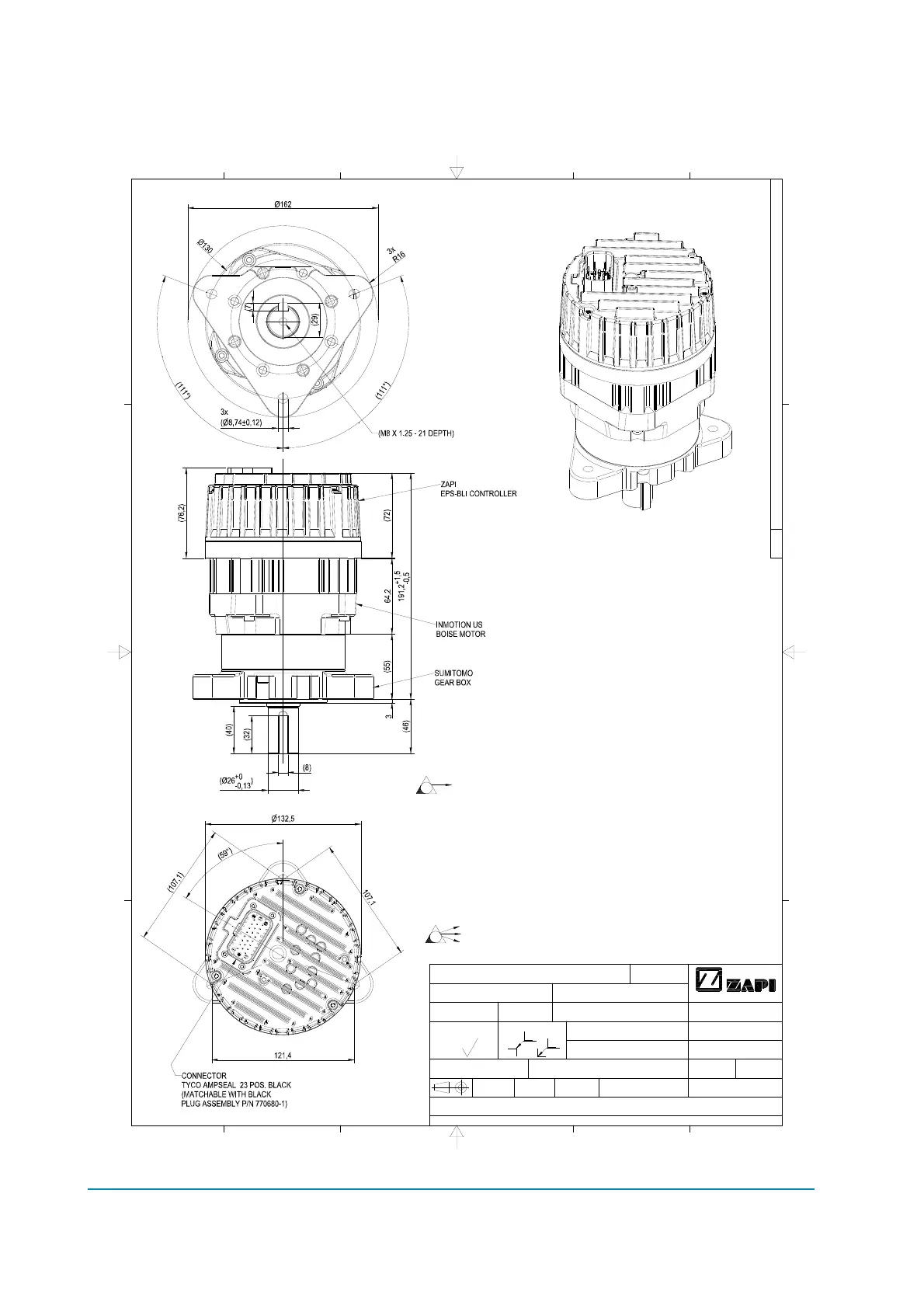

Isometric View ( 1 : 2 )
ZAPI P/N: F07267A
HYG P/N: 8827292
MODEL: HYG EPS-BLI 24V 50A WITH MOTOR
WEIGHT OF THE ASSEMBLY: 6.470 Kg
ASSY CONSISTING OF:
1) ZAPI STEERING CONTROLLER
MODEL: EPS-BLI 24V 50A WITH MOTOR
2) INMOTION US MOTOR
MODEL: BOISE MOTOR 24V 50A
600W 3000 RPM S2 1h
3) SUMITOMO GEAR BOX
MODEL: CNVMS-5087-51
RATIO: 1 : 43
OPERATING TEMPERATURE RANGE: FROM - 10°C TO + 40°C
MAX CONTINUOUS TORQUE: 89 Nm OUTPUT OR 2.2 Nm INPUT AT 1450 RPM
MAX PULSIVE TORQUE: 192 Nm (3 secs MAXIMUM, 6 hrs LIFETIME)
01
01
01
ADDED TECHNICAL DATA.
Figure 3-1.
