Zebra 105Se User Manual

Note: If only one pair of lights is flickering, it indicates that the
adjustment was not successful. Go back to step 1 and start
over.
8. Open the printhead.
9. Pull the media out of the printer until a label is positioned under the
printhead. Move the ribbon back to its normal position.
Note: Be sure that label is positioned between the upper and lower
Media Sensors.
10. Close the printhead.
11. Press the MODE key to print a Media and Sensor Profile and save the
new values (see Figure 7.4.).
12.PerformtheMediaCalibrationprocedurein“ConfigurationandCali-
bration.”
7-6 Zebra S-Series User’s Guide

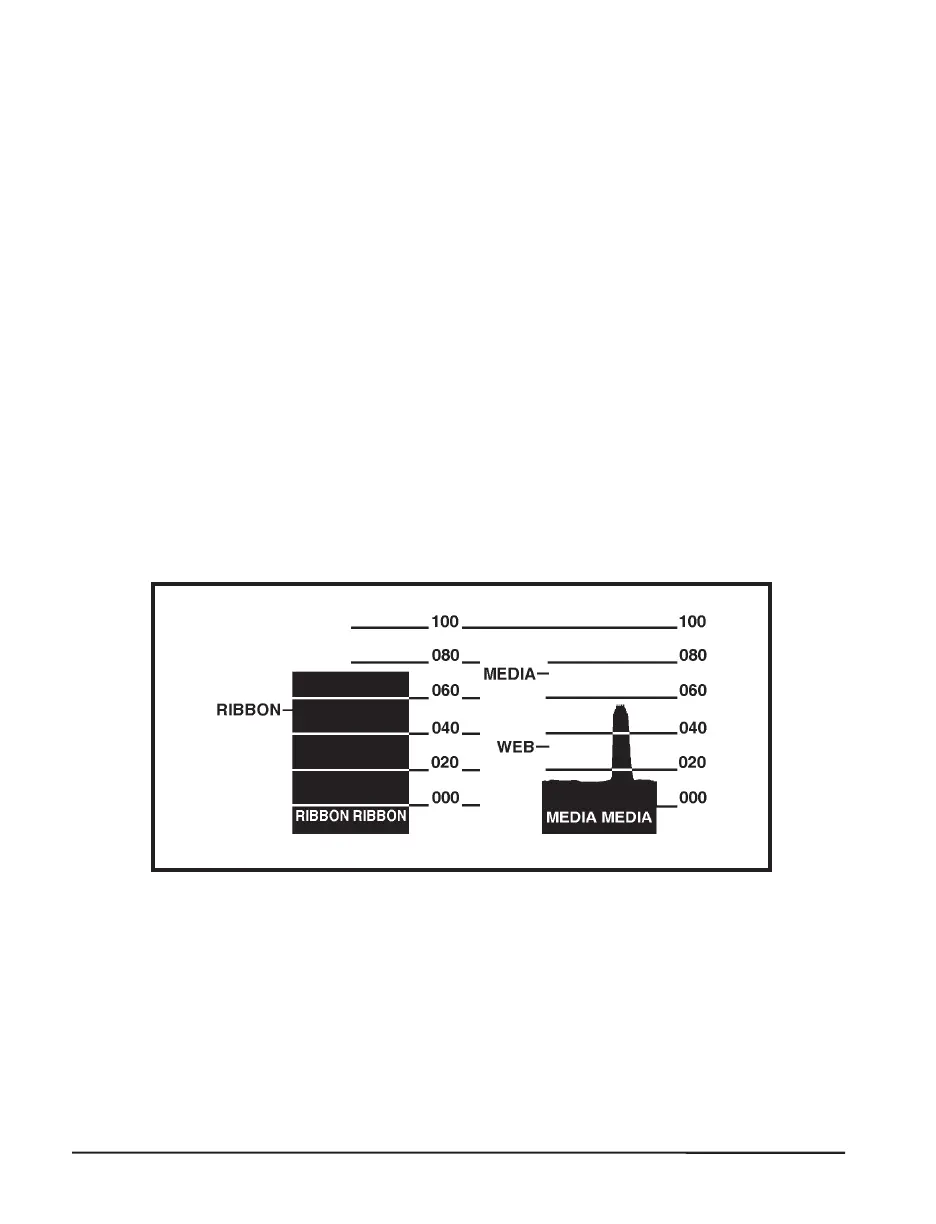

Figure 7.4 Media Sensor Profile Sample Printout
74

Zebra 105Se Specifications

General

Print Resolution	203 dpi
Print Method	Thermal transfer
Maximum Print Width	4.09 inches (104 mm)
Maximum Print Length	39" (991 mm)
Media Width	1" (25.4 mm) to 4.5" (114 mm)
Connectivity	RS-232, Parallel
Operating Temperature	40° F (5° C) to 105° F (40° C)
Power Requirements	115V or 230V
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20% to 85% non-condensing
Media Thickness	0.0025 to 0.008 inches (0.06 to 0.2 mm)
