Zebra GK888t User Manual

71
Maintenance
Replacing the Printhead
12/23/10 GK888t™ User Guide P1030829-001

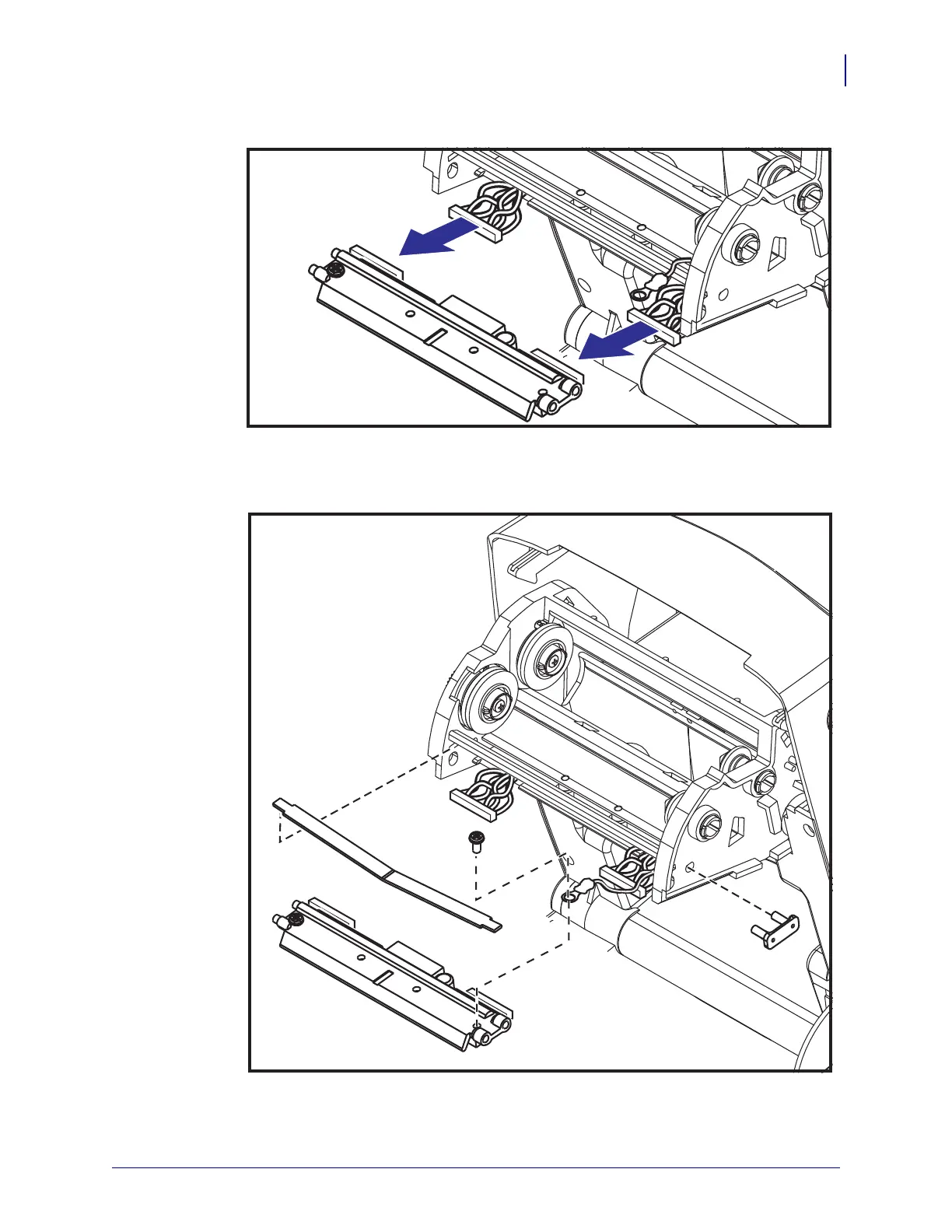

6. Unplug both bundles of printhead wires from their connectors.
Replacing the Printhead
The new print head comes with the clip and ground screw attached.
1. Align the printhead and bracket to plug the left and right connectors into the black and
white wire bundles.

Zebra GK888t Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Resolution	203 dpi (8 dots/mm)
Maximum Print Width	4.09 inches (104 mm)
Memory	8 MB Flash
Connectivity	USB, Serial, Parallel
Media Sensors	Reflective and transmissive
Media Handling	Roll-to-roll, fanfold, tag stock
Media Types	tag stock
Ribbon Ratio	1:1
Programming Languages	EPL2, ZPL
Power Requirements	2.5A
Storage Temperature	-40° F to 140° F/-40° C to 60° C
Humidity	20 to 85% non-condensing
