Zebra Z Series ZM600 User Manual

Introduction
Control Panel
10
79695L-001 Rev. A ZM400/ZM600 User Guide 3/27/07
Control Panel
The control panel contains the lights that indicate basic operation and the buttons that you may
need to press during basic operation. The control panel buttons and lights are labeled in
Figure 5. Descriptions for each are located in Table 1 and Table 2.

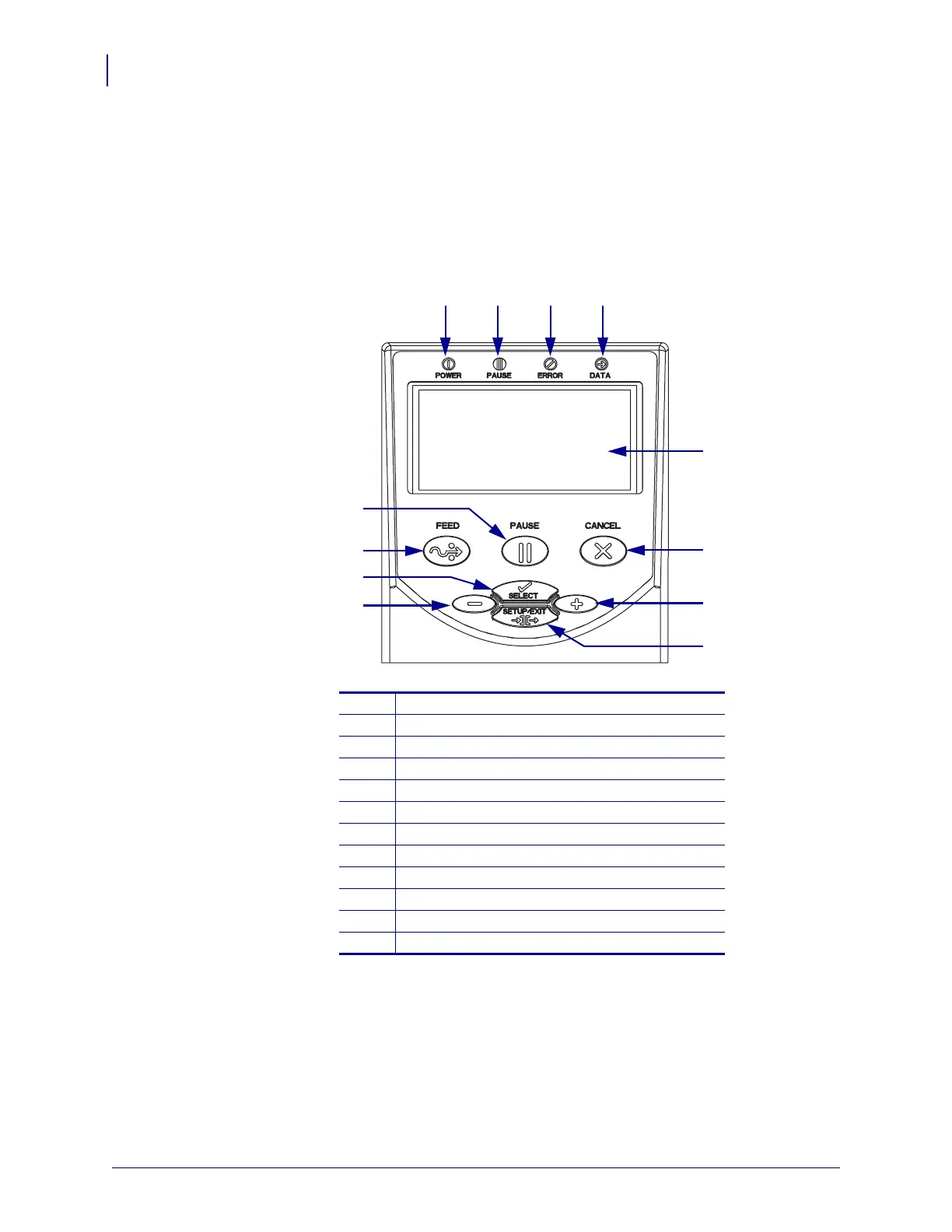

Figure 5 • Control Panel
1
Power LED
2
Pause LED
3
Error LED
4
Data LED
5
LCD
6
CANCEL button
7
PLUS (+) button
8
SETUP/EXIT button
9
MINUS (–) button
10
SELECT button
11
FEED button
12
PAUSE button
1 2 3 4
5
6
7
8
11
12
10
9

Zebra Z Series ZM600 Specifications

General

Memory	16 MB SDRAM; 8 MB Flash
Print Method	Thermal transfer and direct thermal
Print Width	4.09 inches (104 mm)
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Connectivity	USB, Serial, Parallel, Ethernet
Media Sensors	Reflective Transmissive
Media Types	die-cut, continuous, thermal, tag
Ribbon Width	2 in./51 mm to 4.33 in./110 mm
Ribbon Length	450 m/1476 ft
Optional Connectivity	ZebraNet 10/100 Print Server
Operating Temperature	40°F to 104°F/5°C to 40°C
Storage Temperature	-40°F to 140°F/-40°C to 60°C
Humidity	20% to 85% non-condensing
Power Requirements	90-265 VAC, 47-63 Hz
