Zebra Z Series ZM600 User Manual

53
Operations
Adjust Printhead Pressure
3/27/07 ZM400/ZM600 User Guide 79695L-001 Rev. A
Adjust Printhead Pressure
You may need to adjust printhead pressure if printing is too light on one side, if you use thick
media, or if the media drifts from side to side during printing.
See Figure 10. The ZM400 pressure adjustment dials have four possible settings designated by
blocks of increasing size embossed on the print mechanism. The smallest block (fully
counterclockwise) is considered position 1, and the largest block (fully clockwise) is
considered position 4. The ZM600 dials have seven settings instead of four.

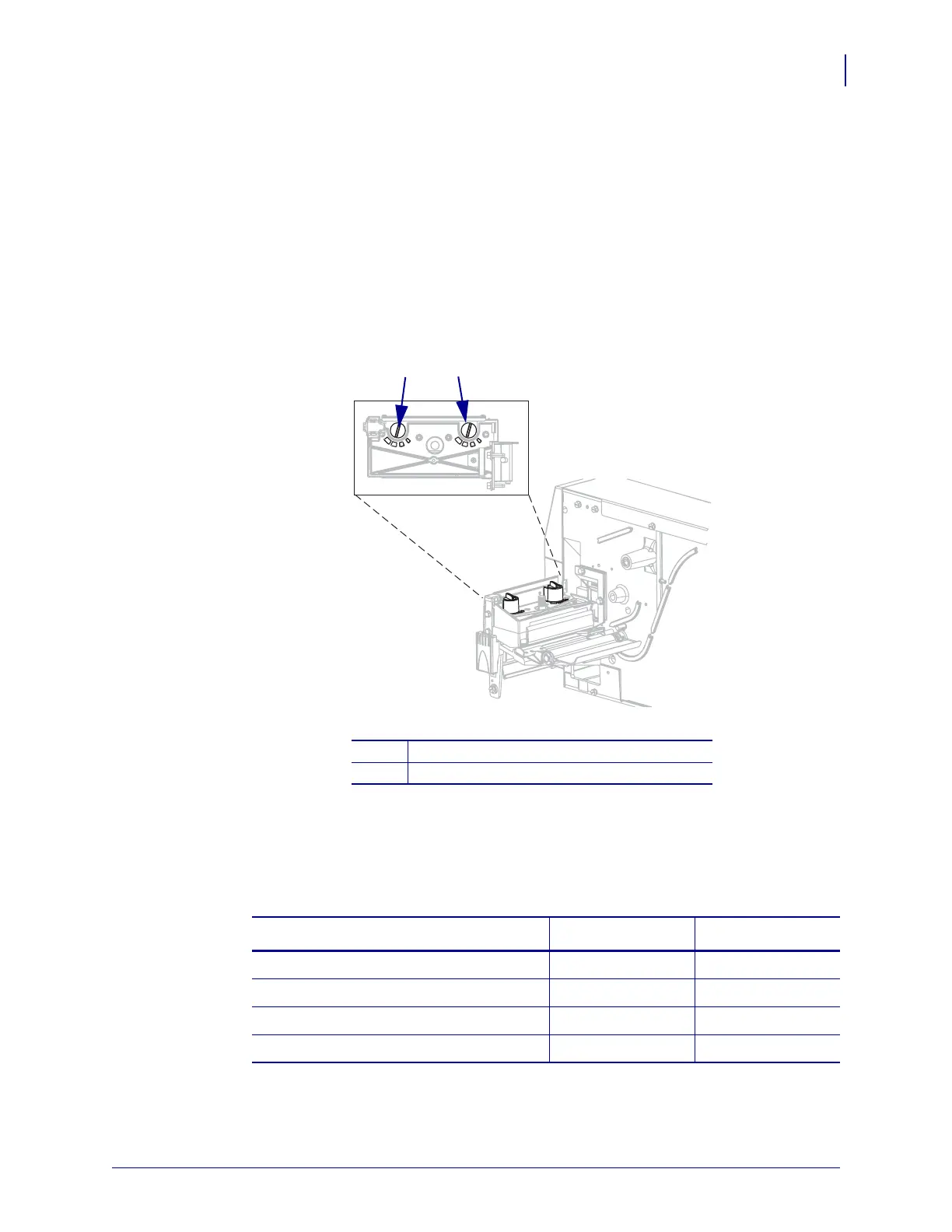

Figure 10 • Printhead Pressure Adjustment Dials
To set printhead pressure, complete these steps:
1. Use Table 10 or Table 11 to select the initial dial settings for your media, depending on
which printer you have.
1
Outside dial
2
Inside dial
1
2
Table 10 • ZM400 Printhead Pressure
Media Width
Inside Dial Outside Dial
1 in. (25.4 mm)
31
2 in. (51 mm)
41
3 in. (76 mm)
32
3.5 in. and up (89 mm and up)
33

Zebra Z Series ZM600 Specifications

General

Memory	16 MB SDRAM; 8 MB Flash
Print Method	Thermal transfer and direct thermal
Print Width	4.09 inches (104 mm)
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Connectivity	USB, Serial, Parallel, Ethernet
Media Sensors	Reflective Transmissive
Media Types	die-cut, continuous, thermal, tag
Ribbon Width	2 in./51 mm to 4.33 in./110 mm
Ribbon Length	450 m/1476 ft
Optional Connectivity	ZebraNet 10/100 Print Server
Operating Temperature	40°F to 104°F/5°C to 40°C
Storage Temperature	-40°F to 140°F/-40°C to 60°C
Humidity	20% to 85% non-condensing
Power Requirements	90-265 VAC, 47-63 Hz
