Zebra Z Series ZM600 User Manual

37
Operations
Load Media
3/27/07 ZM400/ZM600 User Guide 79695L-001 Rev. A
Additional Steps for Peel-Off Mode (with or without Liner Take-Up)
After completing Beginning Steps for all Print Modes and Printer Options on page 33,
continue with this section to operate the printer in Peel-Off mode with or without liner take-up.
Your printer must have the Peel option, the Liner Take-Up option, or the Rewind option
installed. See Print Modes and Printer Options on page 30 for more information.
For additional procedures related to the rewind option, see Routine Maintenance for the
Rewind Option on page 96.
To operate the printer in Peel-Off mode, complete these steps:

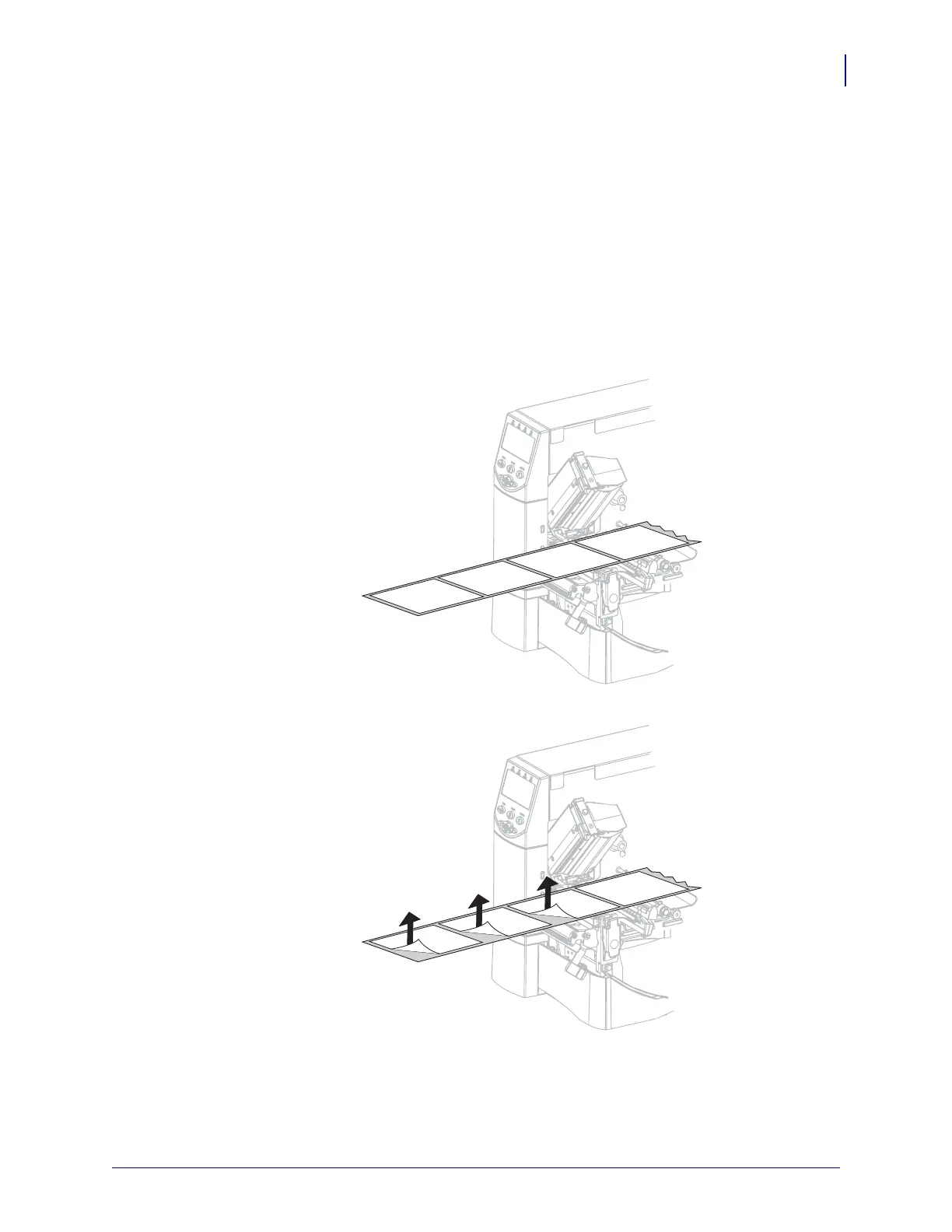

1. Extend the media approximately 18 in. (500 mm) out of the printer.
2. Remove the exposed labels so that only the liner remains.

Zebra Z Series ZM600 Specifications

General

Memory	16 MB SDRAM; 8 MB Flash
Print Method	Thermal transfer and direct thermal
Print Width	4.09 inches (104 mm)
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Connectivity	USB, Serial, Parallel, Ethernet
Media Sensors	Reflective Transmissive
Media Types	die-cut, continuous, thermal, tag
Ribbon Width	2 in./51 mm to 4.33 in./110 mm
Ribbon Length	450 m/1476 ft
Optional Connectivity	ZebraNet 10/100 Print Server
Operating Temperature	40°F to 104°F/5°C to 40°C
Storage Temperature	-40°F to 140°F/-40°C to 60°C
Humidity	20% to 85% non-condensing
Power Requirements	90-265 VAC, 47-63 Hz
