Operations
Load Ribbon
3/27/07 ZM400/ZM600 User Guide 79695L-001 Rev. A

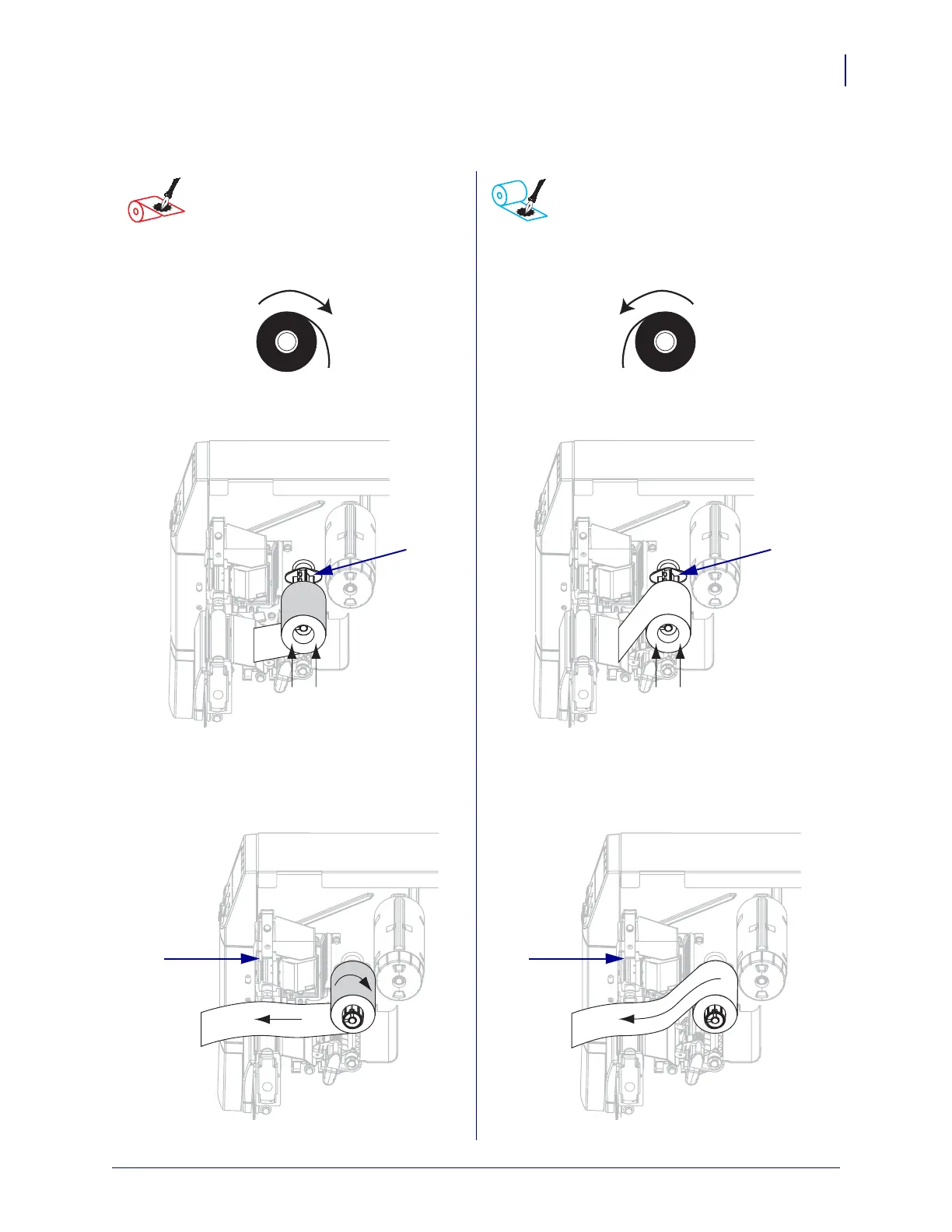

3. Insert the ribbon into the printer. In this step, follow the instructions for the Thermal
Transfer option installed in your printer.
Ribbon Coated Outside
(black ribbon spindle)
Ribbon Coated Inside
(gray ribbon spindle)
a. Hold the ribbon with the loose end unrolling
clockwise.
a. Hold the ribbon with the loose end unrolling
counterclockwise.
b. Place the roll of ribbon on the ribbon supply
spindle (
1) and push it all the way back.
b. Place the roll of ribbon on the ribbon supply
spindle (
1) and push it all the way back.
c. Pull the end of the ribbon under the printhead
assembly (
1) and out the front of the printer.
Extend the ribbon approximately 24 in.
(610 mm) out of the printer.
c. Pull the end of the ribbon under the printhead
assembly (
1) and out the front of the printer.
Extend the ribbon approximately 24 in.
(610 mm) out of the printer.
1 1
1 1

Zebra Z Series ZM600 Specifications

General

Memory	16 MB SDRAM; 8 MB Flash
Print Method	Thermal transfer and direct thermal
Print Width	4.09 inches (104 mm)
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Connectivity	USB, Serial, Parallel, Ethernet
Media Sensors	Reflective Transmissive
Media Types	die-cut, continuous, thermal, tag
Ribbon Width	2 in./51 mm to 4.33 in./110 mm
Ribbon Length	450 m/1476 ft
Optional Connectivity	ZebraNet 10/100 Print Server
Operating Temperature	40°F to 104°F/5°C to 40°C
Storage Temperature	-40°F to 140°F/-40°C to 60°C
Humidity	20% to 85% non-condensing
Power Requirements	90-265 VAC, 47-63 Hz
