122 Description
G-30-1529-en OPMI® VISU 160 on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 09. 10. 2006

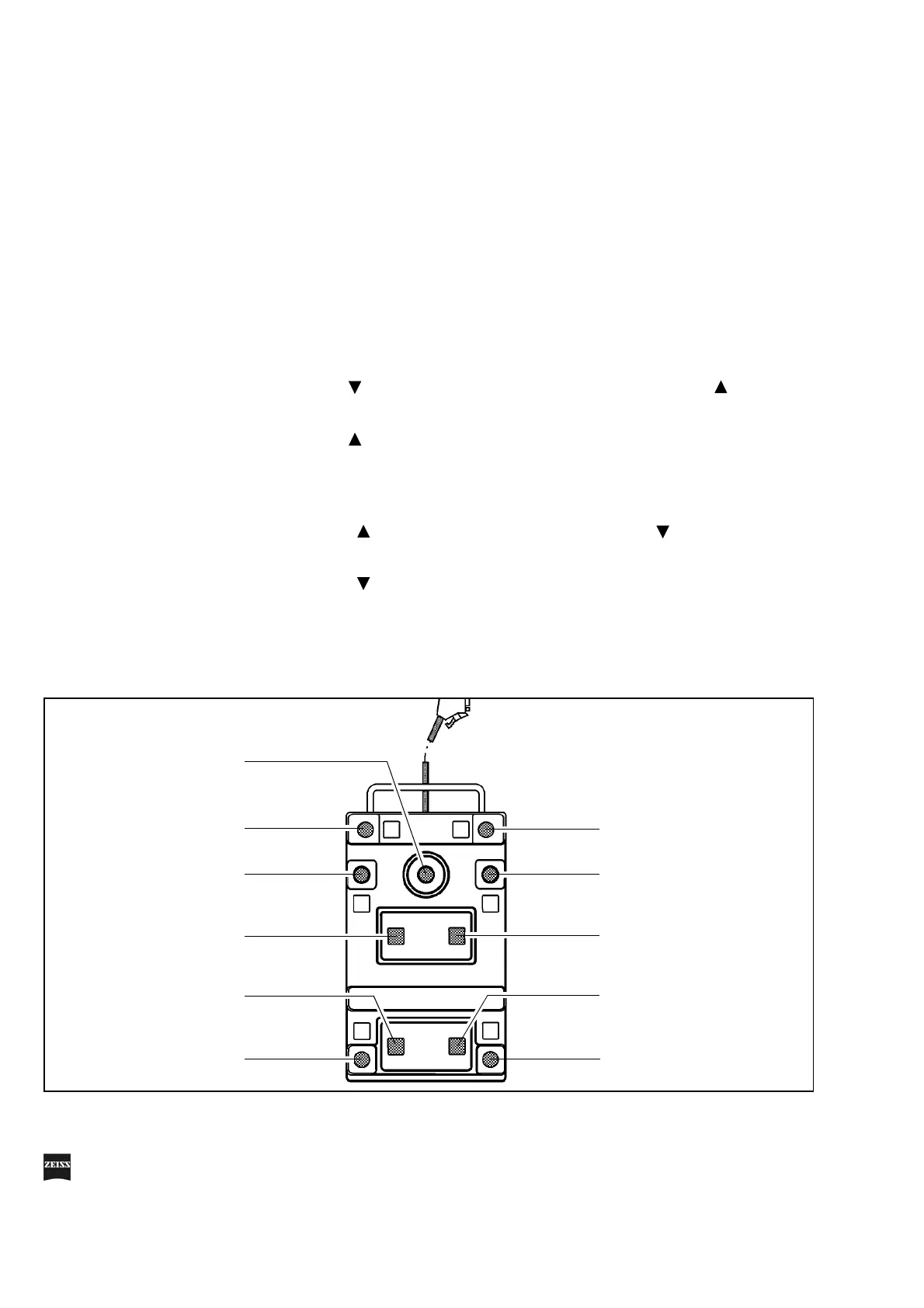

The illustration shows the standard assignment of functions to the foot
control panel. On request, our service staff can change the assignment of
the focus/zoom functions and that of button (10).
1 Joystick for X-Y coupling
2 Reducing the lamp brightness
3 Recentering of the X-Y coupling and focus starting position (optional:
control of Stereo Digital Inverter IIe / 3e from the company Oculus).
The button is freely configurablepage 167.
4 ZOOM Reducing magnification (optional: FOCUS Reducing
working distance)
5 ZOOM Increasing magnification
6 On/Off of the lamp
7 No function
8 FOCUS Increasing working distance, (ZOOM Reducing magnifi-
cation)
9 FOCUS Reducing working distance
10 Controlling external units using the Remote function (option: release
of 35 mm camera) The button is freely configurable.
11 Increasing the lamp brightness
11
10
9
8
7
2
3
4
5
6
1
