76 Description
G-30-1529-en OPMI® VISU 160 on S8, S81 & S88 Suspension Systems Issue 5.0
Printed on 09. 10. 2006
7 Brightness control
Brightness can be adjusted using the two keys (7) on the control
panel.
Note:
If the suspension system has two lamp housings, you can also adjust
the brightness of lamp 1 by pressing the appropriate button on the foot
control panel.
8 Yellow indicator lamp
– Lights when the main lamp has failed. The backup lamp is on.
– Blinks when the backup lamp has failed.
9 Green indicator lamp
Indicates which illumination system is on.

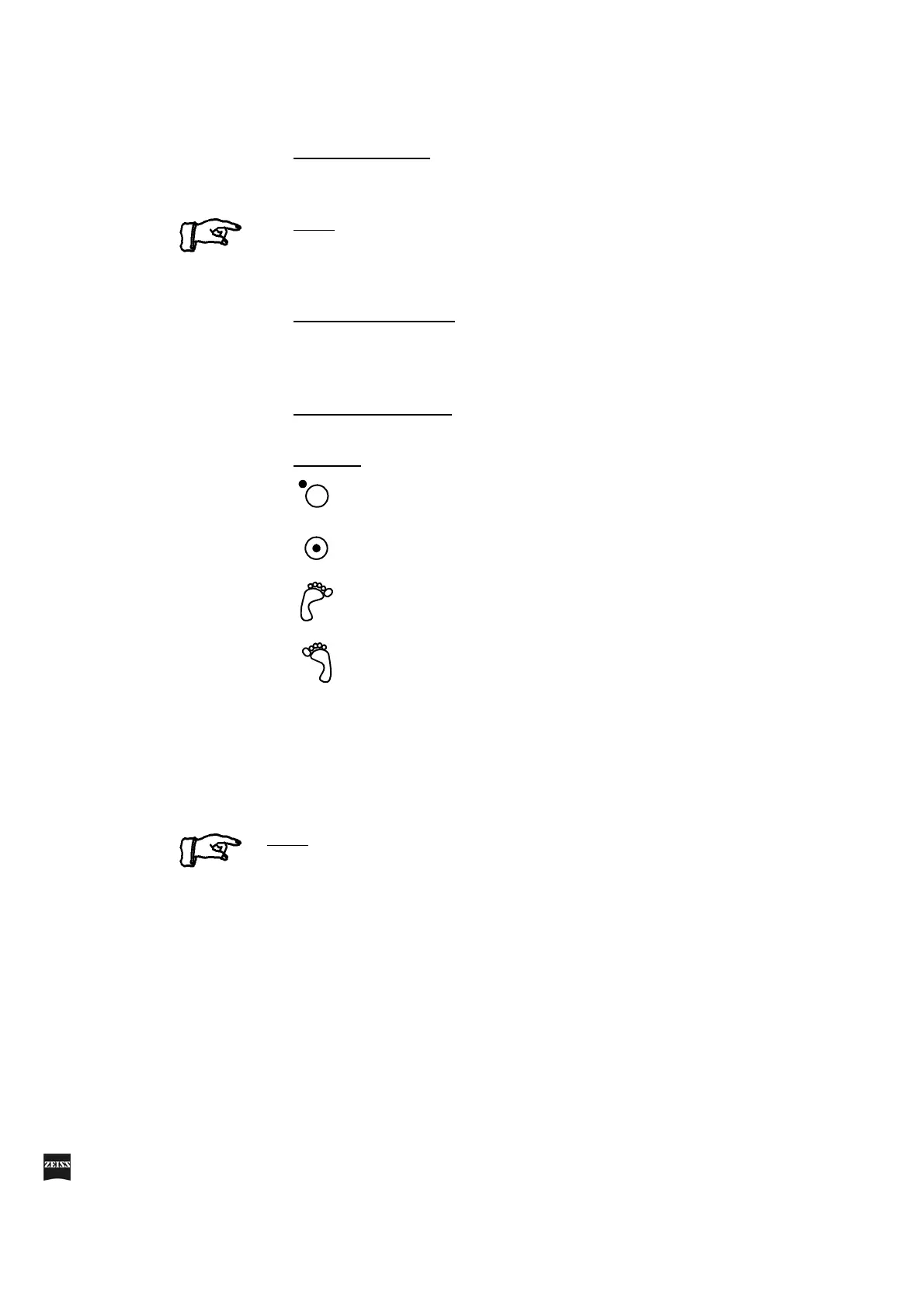

10 Selector:
After the instrument and one of the illumination systems have been
switched on:
– If the yellow indicator lamp is lit, the main lamp has failed.
– If the yellow indicator lamp blinks, the backup lamp has failed.
Note:
If two lamp housings are available, you can set the selector switch in such
a way
– that one illumination system each can be switched on the left-hand
and right-hand side of the foot control panel,
– or that both illumination systems can be switched on the left-hand or
right-hand side of the foot control panel.
Illumination is off.
Illumination is on.
Illumination can be switched on/off on the left-hand side of
the foot control panel.
Illumination can be switched on/off on the right-hand side of
the foot control panel.
