Zenith XBR411 - Page 85

3-108
CD/DVD ?

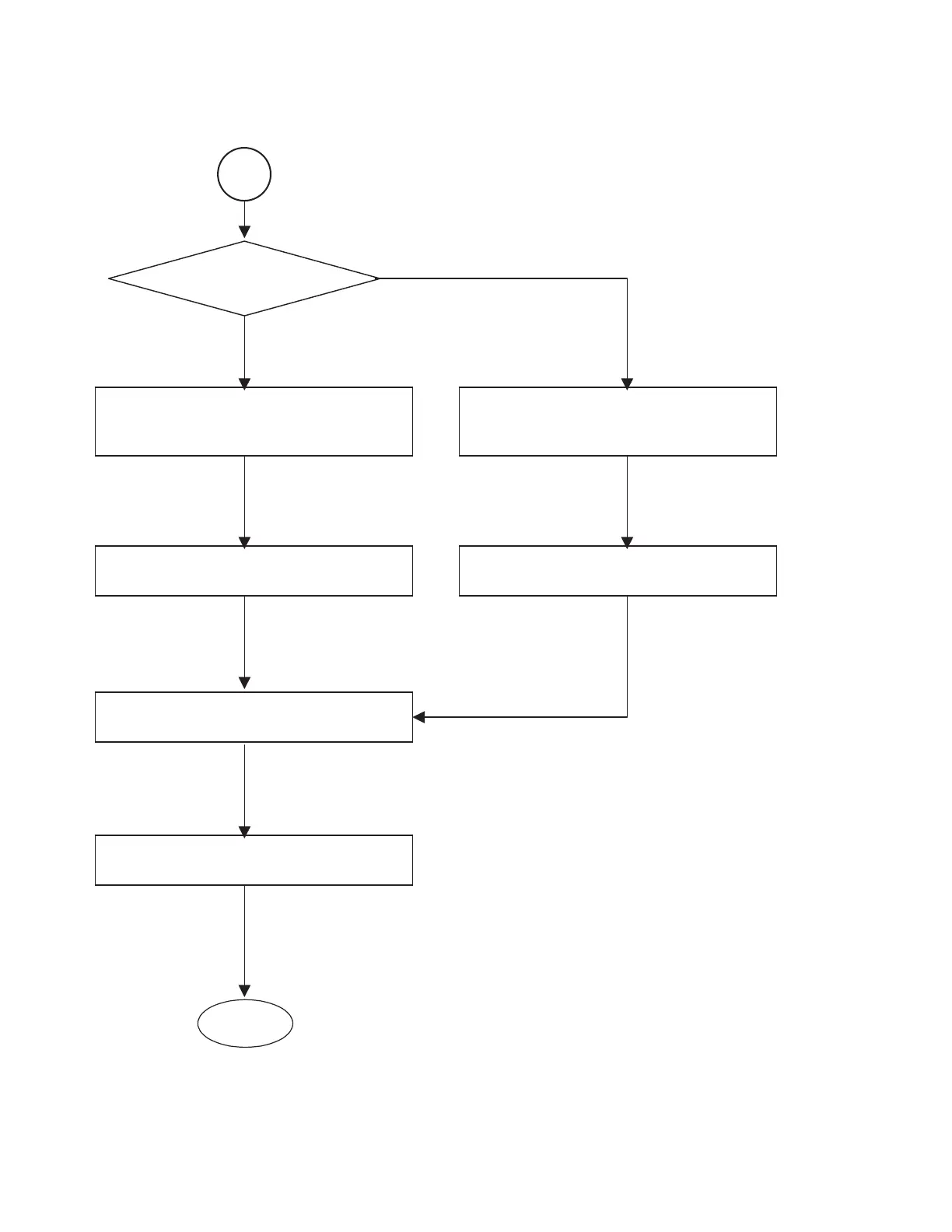

Select Mode: DVD, Test and perform
Test from 4. LD Test of ‘How to use
Test tool’
Select Mode: DVD, Test and perform
Test from 4. LD Test of ‘How to use
Test tool’
Check the input of LDEN-DVD.
(pin 17 of CN102 :‘H ’)
Check the input of LDEN-DVD.
(pin 17 of CN102 :‘H ’)
Check the input of VRDC.
(pin 34 of CN102)
Check the input of FPD.
(pin 19 of CN102)
END
E
