Page 20

TO GET ASSISTANCE, CALL: 919-774-7667

ZENITH PUMPS

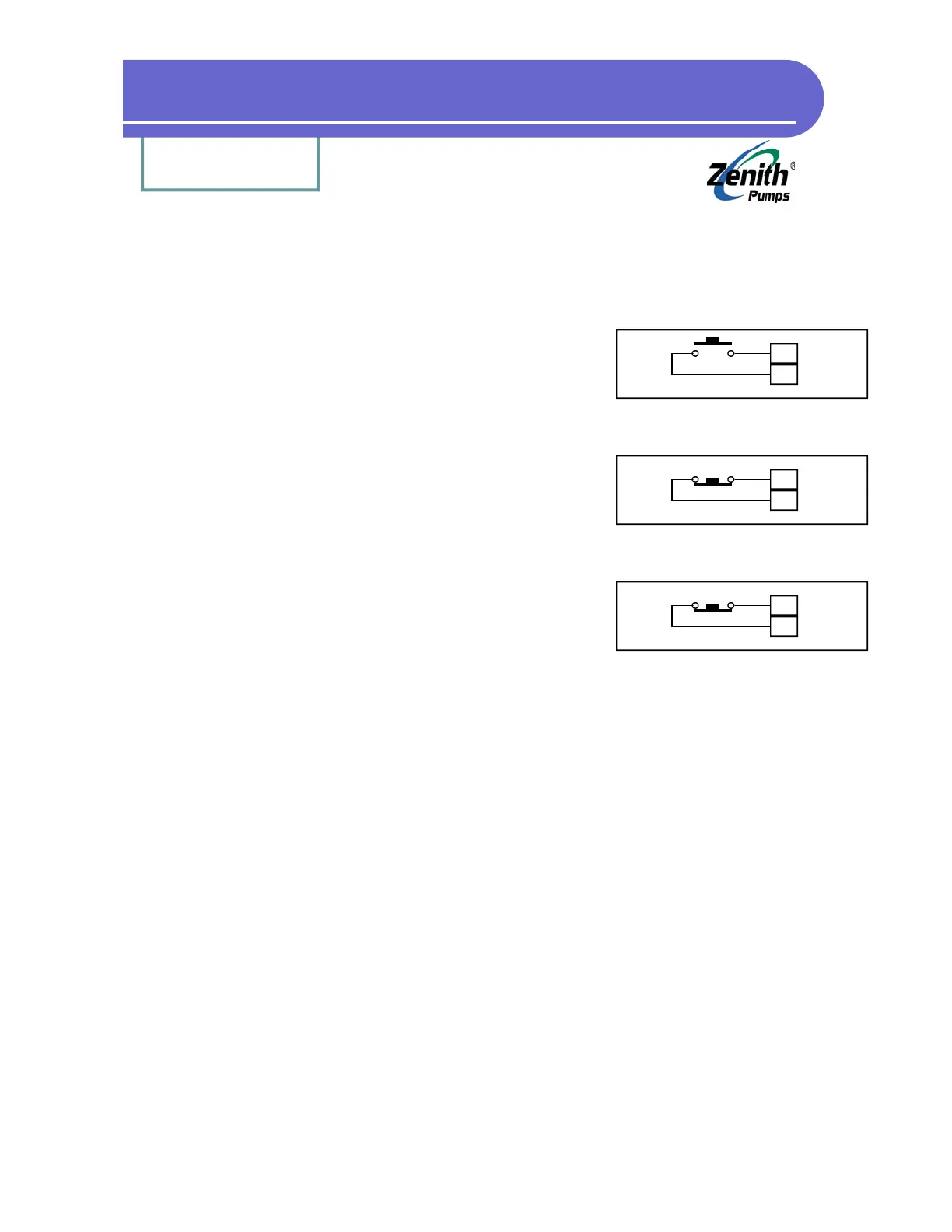

Connect Run/Stop Buttons

1. Run Button:

• Use a momentary button

• Connect the button to J3 connector Pin 12 and Pin 13

• When closed, ZeDrive will ramp up based on Accel-

eration Time defined in Code 16

2. Stop Button:

• Use a momentary button

• Connect the button to J3 connector Pin 11 and Pin 12

• When opened, ZeDrive will ramp down to zero speed

based on Deceleration Time defined in Code 17

3. Emergency Stop Button:

• Use a momentary button

• Connect the button to J3 connector Pin 14 and Pin 15

• When opened, ZeDrive will stop immediately
