Introduction
Stand-alone
The IP Gateway can also be placed as a stand-alone unit.

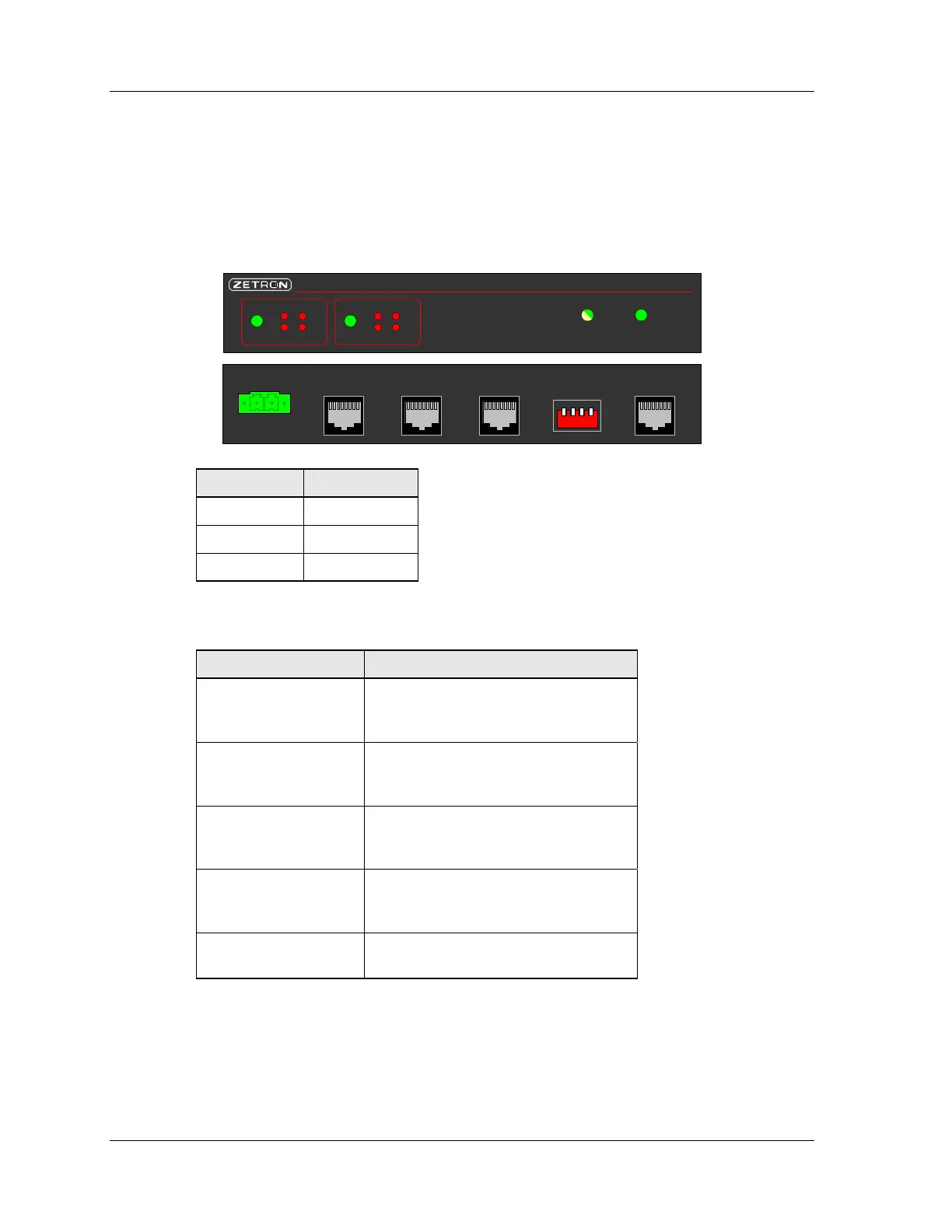

Figure 3 – Stand-alone IP Gateways
Network Power
Model 6300 IP Gateway
Status IP Radio
TX
RX
Link 1
Status
TX
RX
Link 2
IP Radio
+13.5VDC/GND
A B C D
Tone Remote NetworkRadio A Radio B
+13.5VDC/GND
A B C D
Balanced Audio
Network
Link 2Link 1
Parameter Description
Height: 1.25 inches
Width: 7.5 inches
Depth: 10 inches
Inputs and Outputs
Parameter Description
COR Input Active < 0.8V
Inactive > 2.0V
10K ohm pull-up to 5.0V
PTT Output PTT <10 ohms to ground active,
<100 na to ground when inactive
Sinks 50 ma @ 12VDC
General Purpose I/O
(configured for input)
Active < 1.0V
Inactive > 3.6V
10K ohm pull-up to 5.0V
General Purpose I/O
(configured for output)
Open-drain
Active 10 ohm or less to ground
Sinks 50 ma @ 12VDC
Serial Data I/O Selectable RS-232 levels or TTL levels.
Handshake signals are not supported.
