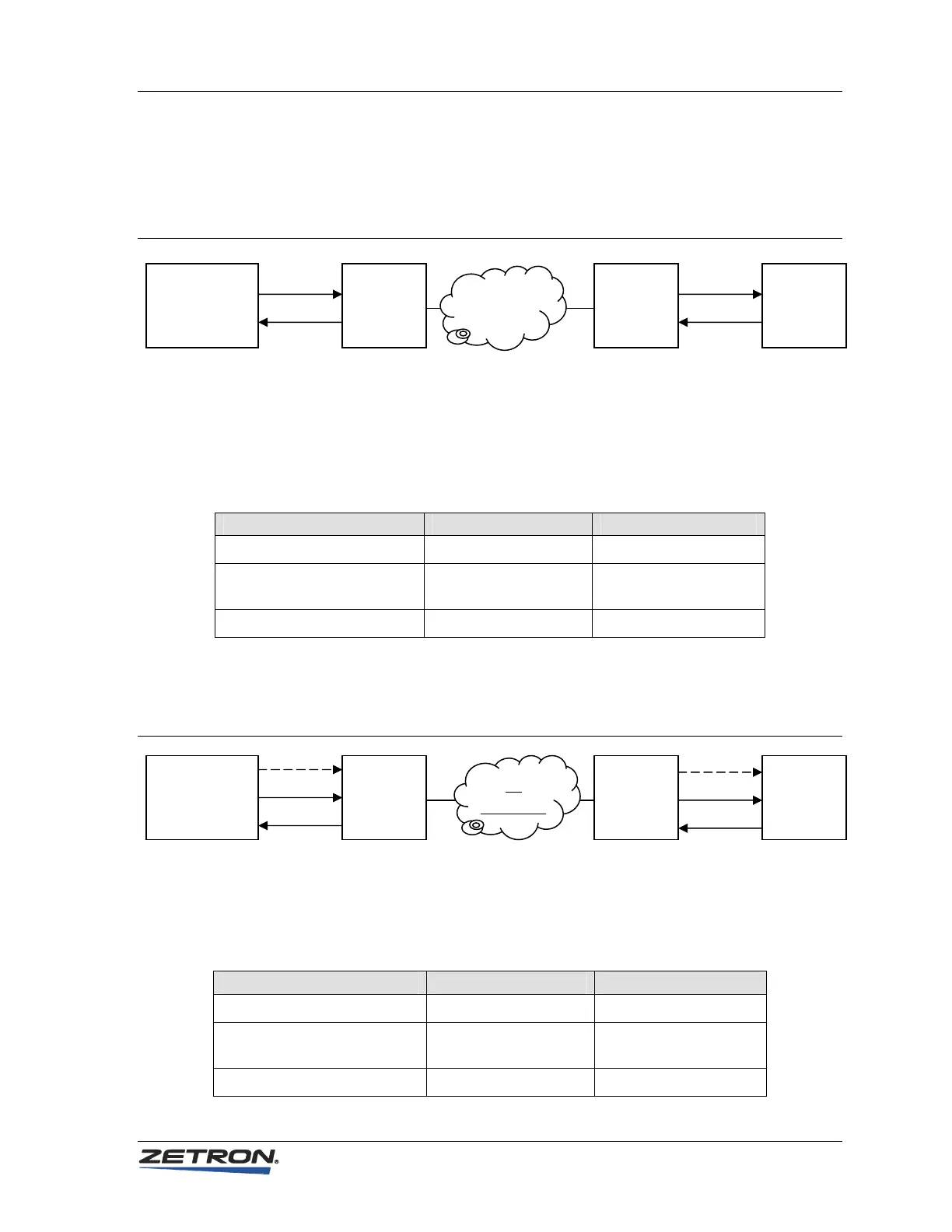

4-Wire/Tone Remote Control Configuration
4-Wire/Tone Remote Control Configuration
In a four-wire scenario, radio control is accomplished by in-band tones, such as tone
remote control. In this scenario the Model 6300’s COR and PTT signals are not used.
Because of this VOX detection must be relied upon to detect the presence of incoming
audio so as to initiate a VoIP connection with the remote paired link. When VOX is used,
it is important to enable Full Duplex operation, because otherwise a reply to a
transmission that occurs during the VOX hold time will not be heard (disabling Full
Duplex disables the ability to send voice in both directions simultaneously).
Parameter M6300 #1 Setting M6300 #2 Setting
Full Duplex Enable Enabled Enabled
Remote PTT Keying &
Analog-to-VoIP Audio Gating
VOX VOX
VOX Hold Time Set to maximum Set to maximum
6-Wire/Local Control Configuration
In a six-wire scenario, radio control is accomplished by the use of an external PTT signal
rather than by in-band control tones. In this scenario the Model 6300’s COR and PTT
signals are used in the path from the control equipment to the radio, and VOX is used in
the path from the radio to the control equipment. Because VOX is used, it is important to
enable Full Duplex operation.
Parameter M6300 #1 Setting M6300 #2 Setting
Full Duplex Enable Enabled Enabled
Remote PTT Keying &
Analog-to-VoIP Audio Gating
COR VOX
VOX Hold Time (N/A) Set to maximum
Radio
Control
Equipment
Radio
Rx Audio Pair
M6300
#1
T
x Audio Pair
PTT COR
Rx Audio Pair
IP
Network
M6300
#2
T
x Audio Pair
PTT
Radio
Control
Equipment
Radio
M6300
#1
Rx Audio Pair
Tx Audio Pair
IP
Network
M6300
#2
Rx Audio Pair
Tx Audio Pair
