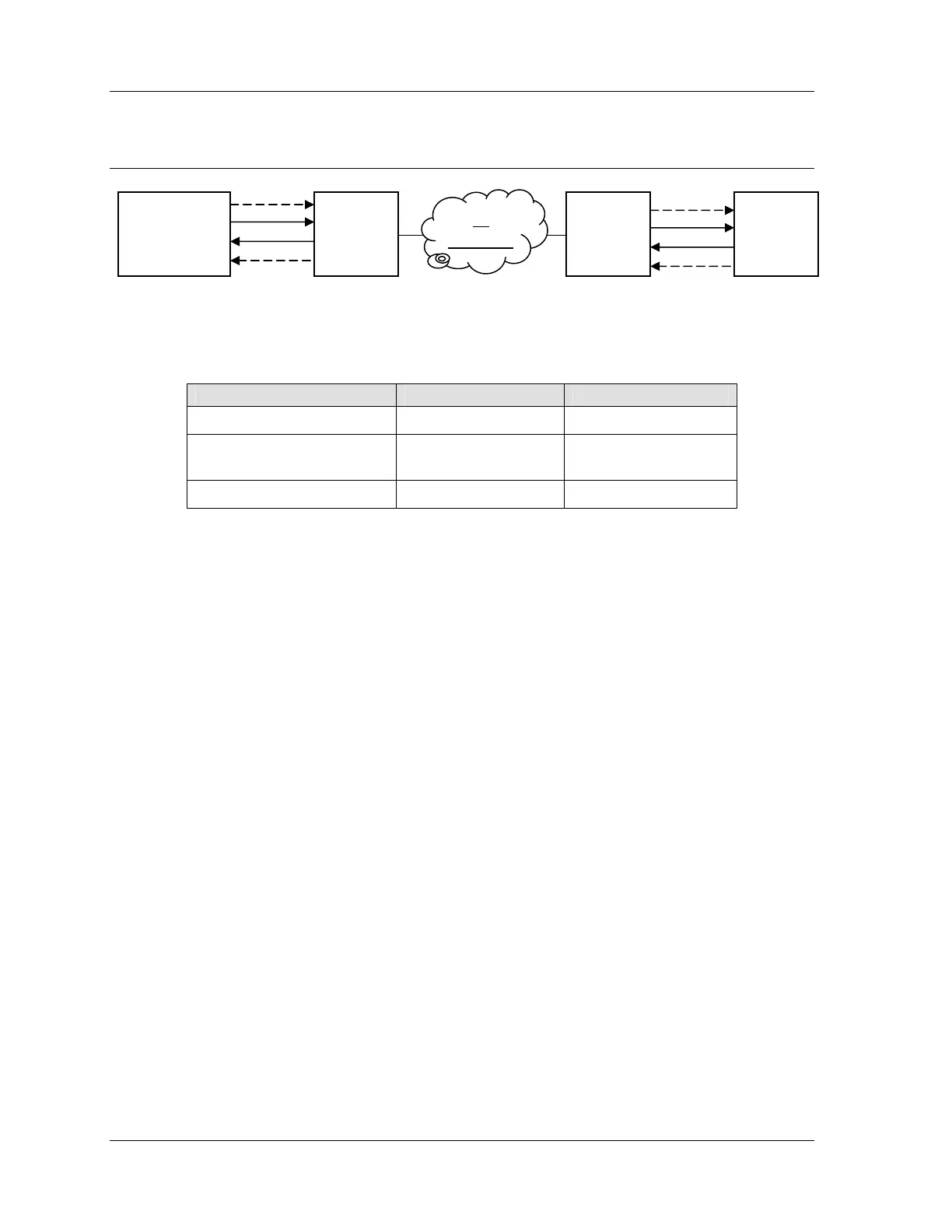

Recommended Analog Line Settings
8-Wire/E&M Control/Radio Bridging Configuration
30 025-9631D.1
In this scenario, radio control is accomplished by the use of an external PTT signal rather
than by in-band control tones. Because two radios are being bridged the Model 6300’s
COR and PTT signals are used in both directions. Because VOX is not used, it is not
necessary to enable Full Duplex operation.
Parameter M6300 #1 Setting M6300 #2 Setting
Full Duplex Enable (as needed) (as needed)
Remote PTT Keying &
Analog-to-VoIP Audio Gating
COR COR
VOX Hold Time (N/A) (N/A)
Radio Radio
M6300
#1
M6300
#2
PTT
IP
Rx Audio Pair
COR
Tx Audio Pair
PTT
T
x Audio Pair
Network
Rx Audio Pair
COR
To Next Page
