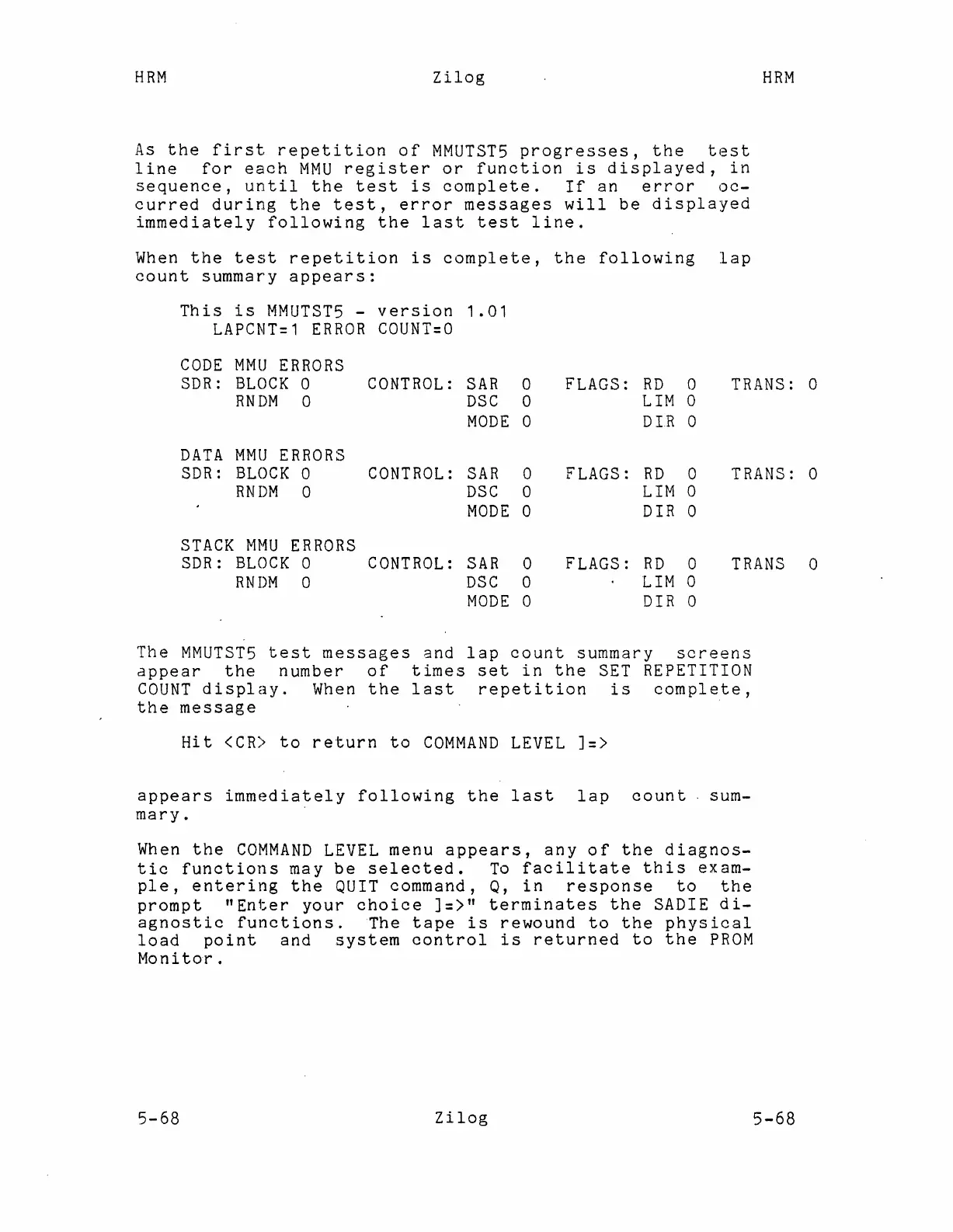

As the first repetition of MMUTST5 progresses, the test
line for each MMU register or function is displayed, in
sequence, until the test is complete. If an error oc-
curred during the test, error messages will be displayed
immediately following the last test line.
When the test repetition is complete, the following lap
count summary appears:
This
is MMUTST5 -
version
1 .01
LAPCNT=1
ERROR COUNT=O
CODE
MMU ERRORS
SDR:
BLOCK 0
CONTROL:
SAR 0 FLAGS: RD
0 TRANS:
0
RNDM
0
DSC 0
LIM
0
MODE
0
DIR
0
DATA MMU ERRORS
SDR:
BLOCK 0
CONTROL: SAR 0 FLAGS:
RD 0 TRANS: 0
RNDM
0
DSC
0
LIM
0
MODE
0 DIR
0
STACK M~1U
ERRORS
SDR: BLOCK
0
CONTROL: SAR
0
FLAGS: RD
0
TRANS
0
RNDM
0
DSC
0
LIM
0
MODE 0
DIR 0
The
MMUTST5 test messages
and lap count summary
screens
appear the
number
of
times set in the
SET
REPETITION
COUNT display.
When the last repetition
is
complete,
the message
Hit
<CR>
to return to
COMMAND
LEVEL
]=>
appears
immediately following the last lap
count
sum-
mary.
When the COMMAND LEVEL menu appears, any of the diagnos-
tic functions may be selected. To facilitate this exam-
ple, entering the QUIT command, Q, in response to the
prompt "Enter your choice ]=>" terminates the SADIE di-
agnostic functions. The tape is rewound to the physical
load point and system control is returned to the PROM
Monitor.
