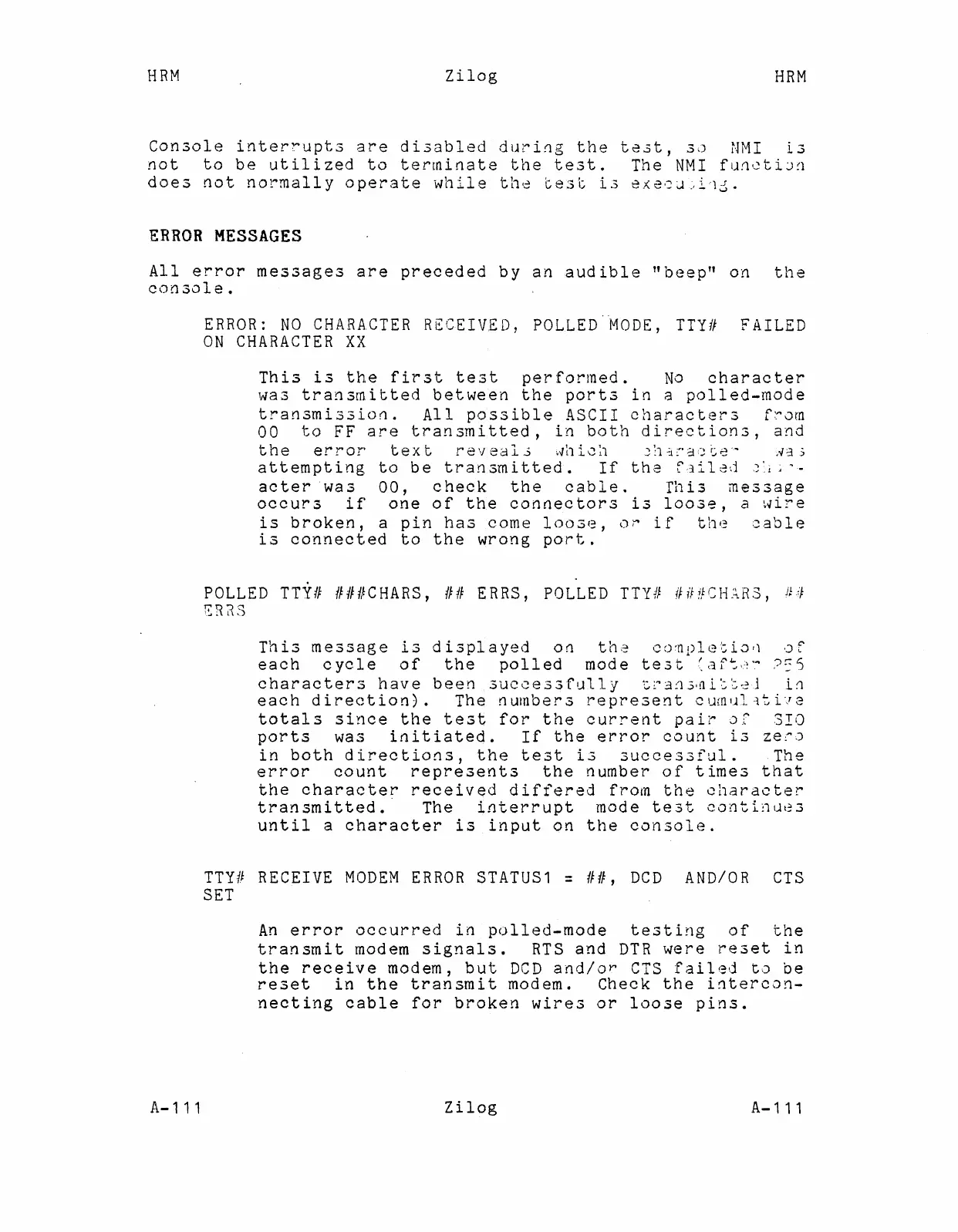

Console interrupts are disabled during the te3t, so NMI is
not to be utilized to terminate the test. The NMI fun('ti~:l
does not normally operate ~..jhile the cesc i3 ex:e,:;u.,il,:!;.
ERROR MESSAGES
All error messages are preceded by an audible "beep" on the
console.
ERROR: NO CHARACTER RECEIVED, POLLED MODE, TTY# FAILED
ON CHARACTER XX
This is the first test performed. No character
was transmitted between the ports in a polled-mode
transmissi.on. All possible ASCII characters f:.--om
00 to FF are transmi.tted, in both direction::;, and
the error' tex t reveal..:; ,,,11 iC~1 '::1-:t('::3::: Ge"~ :/'3 >
attempting to be transmitted. If the f d i 1 ;.~ d; '" l ; ~.
acterwas 00, check the cable. This message
occurs if one of the connectors is loose, a wire
is bra ken, a pin has come I 0003 e, 0 r- 1f the :~ abI e
is connected to the wrong port.
POLLED TTY# ###CHARS, ## ERRS, POLLED TTY# ##YCHARS, fl#
SR~S
This message is displayed on th,~ co~npll~::.io'1 ·.)f
each cycle of the polled mode test (af~0- ?~5
cha r act er s have bee n s uc c e s :3 f IJ 11Y t. ~'" ::1 :1 .3' ni 'c, 'c- ~= j i n
eac h d1r ect ion) . Th e n um be r 03 rep res ent c urn III 17:, 1·J e
totals since the test for the current pair of 310
ports was initiated. If the error count 103 ze:o
in both directions, the test i3 successful. The
error count represents the number of times that
the character received differed from the character
transmitted." The interrupt mode test contin~~3
until a character is input on the console.
TTY# RECEIVE MODEM ERROR STATUS1 = ##, DCD AND/OR CTS
SET
An error occurred in polled-mode testing of the
transmit modem signals. RTS and DTR were reset in
the receive modem, but DCD and/or CTS failed to be
reset in the transmit modem. Check the 1~tercon-
necting cable for broken wires or loose pins.
A-111
Zilog
A-111
