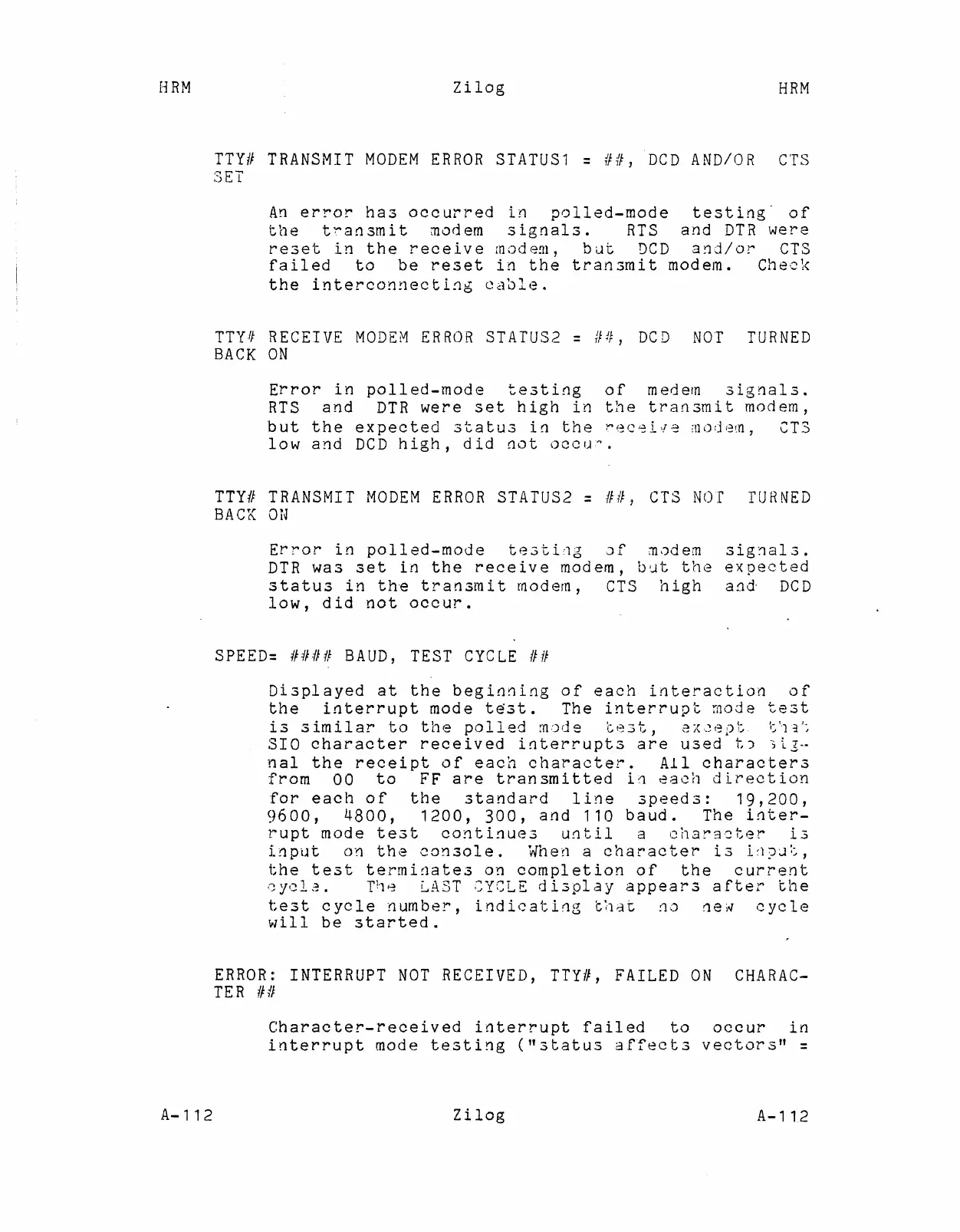

TTYO TRANSMIT MODEM ERROR STATUS1 : ##, DCD AND/OR CIS
SET
An erro~ has occurred in polled-mode testing of
the t~ansmit modem signals. RTS and DTR were
reset in the receive modem, but nCD and/or CTS
failed to be reset in the transmit modem. Check
the interconnecti~g cable.
TTY# RECEIVE MODEM ERROR STATUS2 : ##, DCD NOT TURNED
BACK ON
Error in polled-mode testing of medem signals.
RTS and DTR were set high in the transmit modem,
but the expected statu3 in the ~ec~i{e modem, CT3
low and DeD high, did not occu~.
TTY# TRANSMIT MODEM ERROR STATUS2 : on, CTS Nor TURNED
BACK ON
Error in polled-mode te3ti~g ~f modem
DTR was set in the receive modem, b~t the
status in the transmit modem, CTS high
low, did not occur.
SPEED: #### BAUD, TEST CYCLE U#
sig:1a13.
expected
aDd DCD
Displayed at the beginning of each interaction of
the interrupt mode test. The interrupt mode test
is similar to the polled mode te3t, ex~ept t~~~
SIO character received interrupts are used tJ 3i3~
nal the receipt of each character. All characters
from 00 to FF are transmitted in ~ach direction
for each of the standard line speeds: 19,200,
9600, 4800, 1200, 300, and 110 baud. The inter-
rupt mode test continues until a character is
Input 0"(1 the console. When a character is L1:J~::-',
the test terminates on completion of the current
oyala. Th8 LAST CYCLE display appears after the
test cycle number, indicating that no ne~ cycle
\o1il1 be started.
ERROR: INTERRUPT NOT RECEIVED, TTY#, FAILED ON CHARAC-
TER tIff
Character-received interrupt failed to occur in
interrupt mode testing ("status affects vectors" :
A-112
Zilog
A-112
