ZiLOG System 8000 Hardware Reference Manual

HRM
Zilog
HRM
SWITCH
POSITION
LINE
S1
S2
VOLTAGE
90·109
115
115
110·130
115
230
210-229 230 115
230·250
230
230
~
I 230VI
I
I
WARNING:
IMPROPER VOLTAGE SWITCH
SETTING COULD CAUSE SYSTEM
DAMAGE. THE
SETTIUG IS TO
BE PERFORMED BY 2:1LOG FIELD
PERSONNEL ONLY.
)
l:::::::::=::===========================================================J!
00290

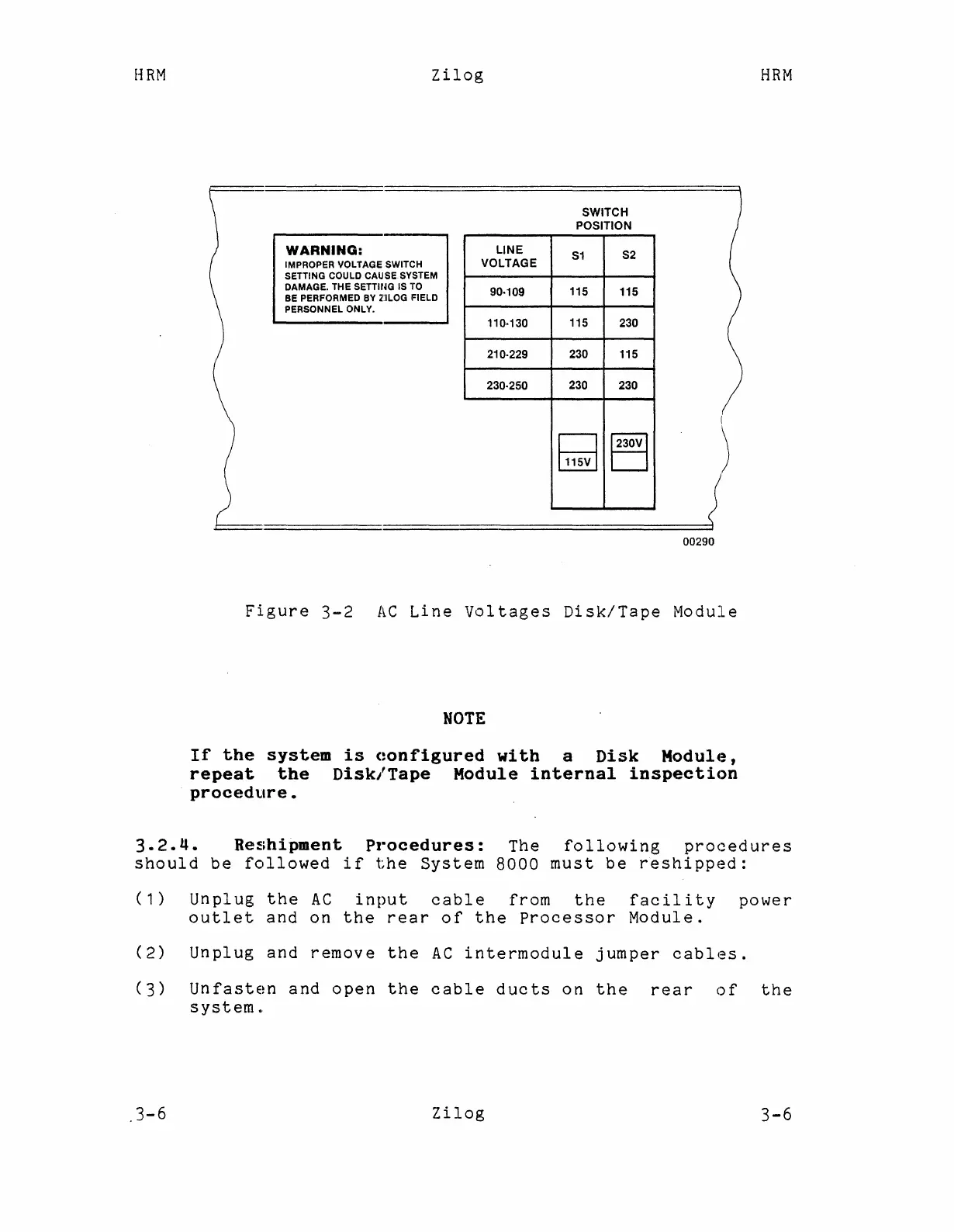

Figure 3-2 AC Line Voltages Disk/Tape Module
NOTE
If the system is (~onfigured wi th a Disk Modulf~,
repeat the Disk/Tape Module internal inspectic)n
procedure.
3.2.4. Reshipment Procedures: The following procedures
should be followed if the System 8000 must be reshipped:
( 1 )
Unplug the
AC input
cable
from the facility power
outlet and
on the rear of the Processor
Module.
(2)
Un pI ug and
remove the
AC intermodule jumper
cabll=s.
( 3)
Un fasten and open
the
cable ducts on
the
rear
of
the
system ..
3-6
Zilog
3-6
