ZiLOG System 8000 Hardware Reference Manual

HRM
Zilog
HRM

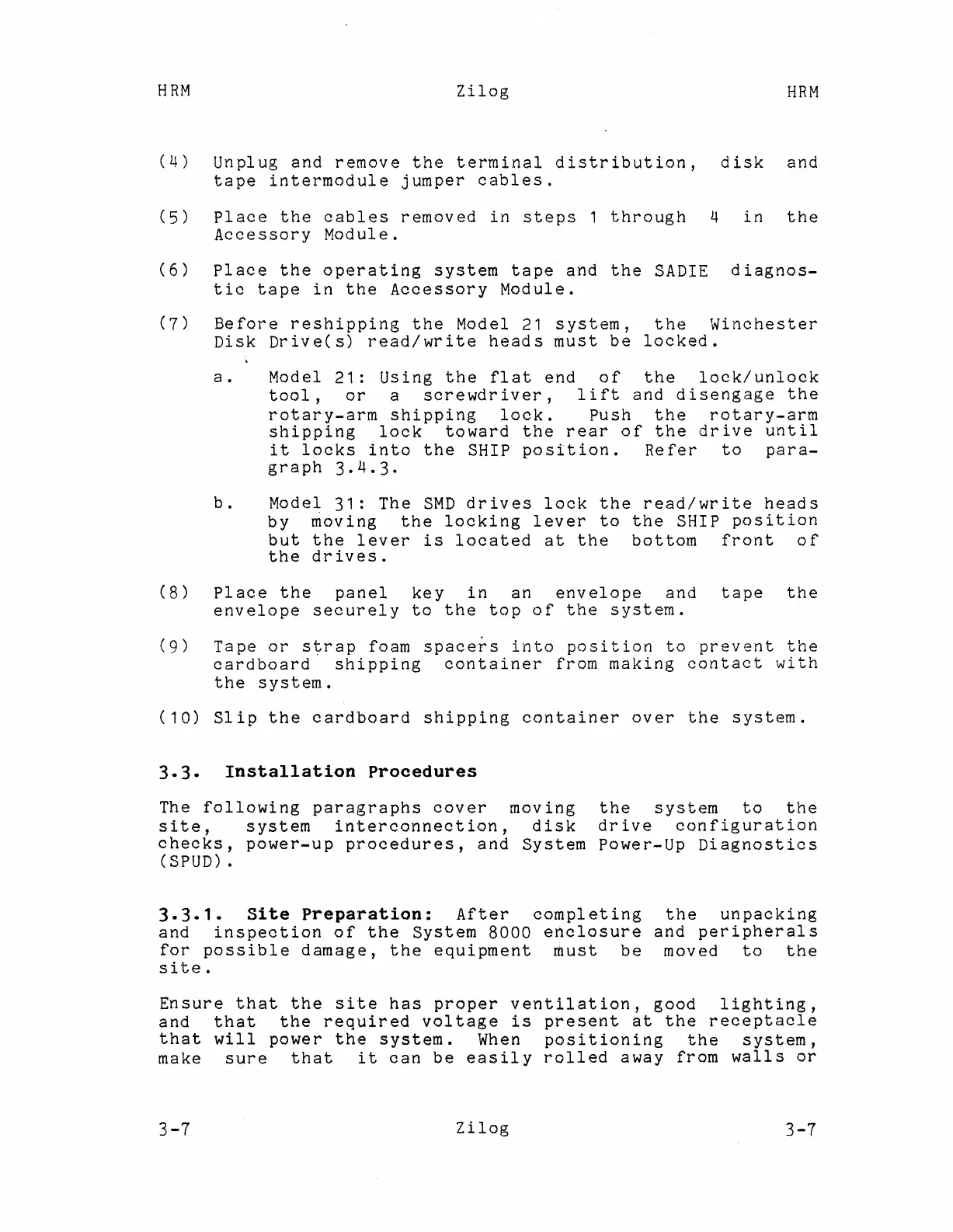

(4) Unplug and remove the terminal distribution, disk and
tape intermodule jumper cables.
(5) Place the cables removed in steps
Accessory Module.
through 4 in the
(6) Place the operating system tape and the SADIE diagnos-
tic tape in the Accessory Module.
(1) Before reshipping the Model 21 system, the Winchester
Disk Drive(s) read/write heads must be locked.
a. Model 21: Using the flat end of the lock/unlock
tool, or a screwdriver, lift and disengage the
rotary-arm shipping lock. Push the rotary-arm
shipping lock toward the rear of the drive until
it locks into the SHIP position. Refer to para-
graph 3.4.3.
b. Model 31: The SMD drives lock the read/write heads
by moving the locking lever to the SHIP position
but the lever is located at the bottom front of
the drives.
(8) Place the panel key in an envelope and tape the
envelope securely to the top of the system.
(9) Tape or strap foam spacers into position to prevent the
cardboard shipping container from making contact with
the system.
(10) Slip the cardboard shipping container over the system.
3.3. Installation Procedures
The following paragraphs cover moving the system to the
site, system interconnection, disk drive configuration
checks, power-up procedures, and System power-Up Diagnostics
(SPUD) .
3.3.1. Site Preparation: After completing the unpacking
and inspection of the System 8000 enclosure and peripherals
for possible damage, the equipment must be moved to the
site.
Ensure that the site has proper ventilation, good lighting,
and that the required voltage is present at the receptacle
that will power the system. When positioning the system,
make sure that it can be easily rolled away from walls or
3-7
