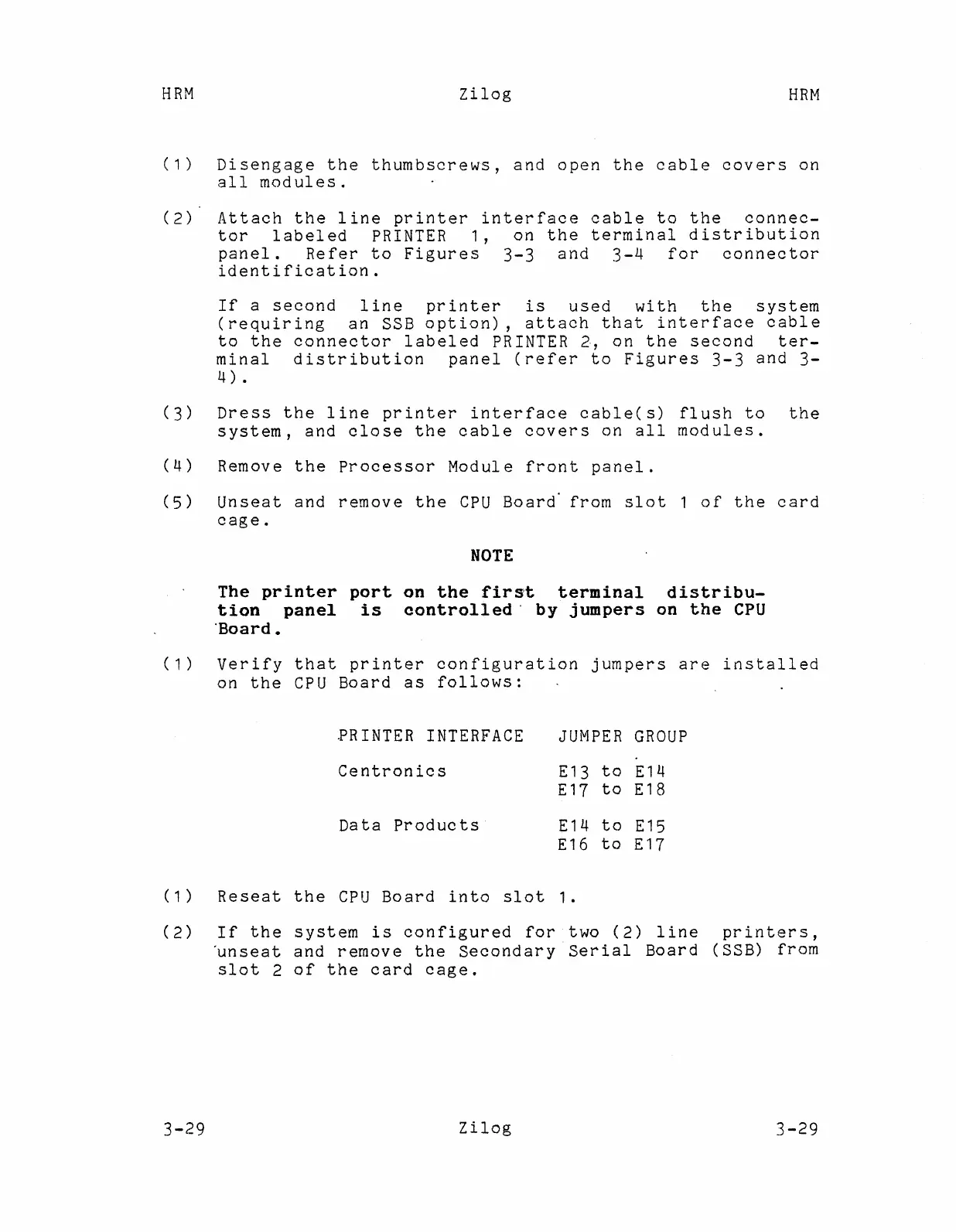

Page #80 background image
HRM
Zilog
HRM
(1)
Disengage
the
thumbscrews,
and
open
the
cable
covers
on
all
modules.
(2)
Attach
the
line
printer
interface
cable
to
the
connec-
tor
labeled
PRINTER
1,
on
the
terminal
distribution
panel.
Refer
to
Figures
3-3
and
3-4
for
connector
identification.
If
a
second
line
printer
is
used
with
the
system
(requiring
an
SSB
option),
attach
that
interface
cable
to
the
connector
labeled
PRINTER
2,
on
the
second
ter-
minal
distribution
panel
(refer
to
Figures
3-3
and
3-
4 ) .
(3)
Dress
the
line
printer
interface
cable(s)
flush
to
the
system,
and
close
the
cable
covers
on
all
modules.
(4)
Remove
the
Processor
Module
front
panel.
(5)
Unseat
and
remove
the
CPU
Board'
from
slot
1
of
the
card
cage.
NOTE
The
printer
port
on
the
first
terminal
distribu-
tion
panel
is
controlled'
by
jumpers
on
the
CPU
'Board.
(1)
Verify
that
printer
configuration
jumpers
are
installed
on
the
CPU
Board
as
follows:
PRINTER
INTERFACE
Centronics
Data
Products
JUMPER
GROUP
E13
to
E14
E17
to
E18
E14
to
E15
E16
to
E17
(1)
Reseat
the
CPU
Board
into
slot
1.
(2)
If
the
system
is
configured
for
two
(2)
line
printers,
'unseat
and
remove
the
Secondary
Serial
Board
(SSB)
from
slot
2
of
the
card
cage.
3-29
Zilog
3-29
