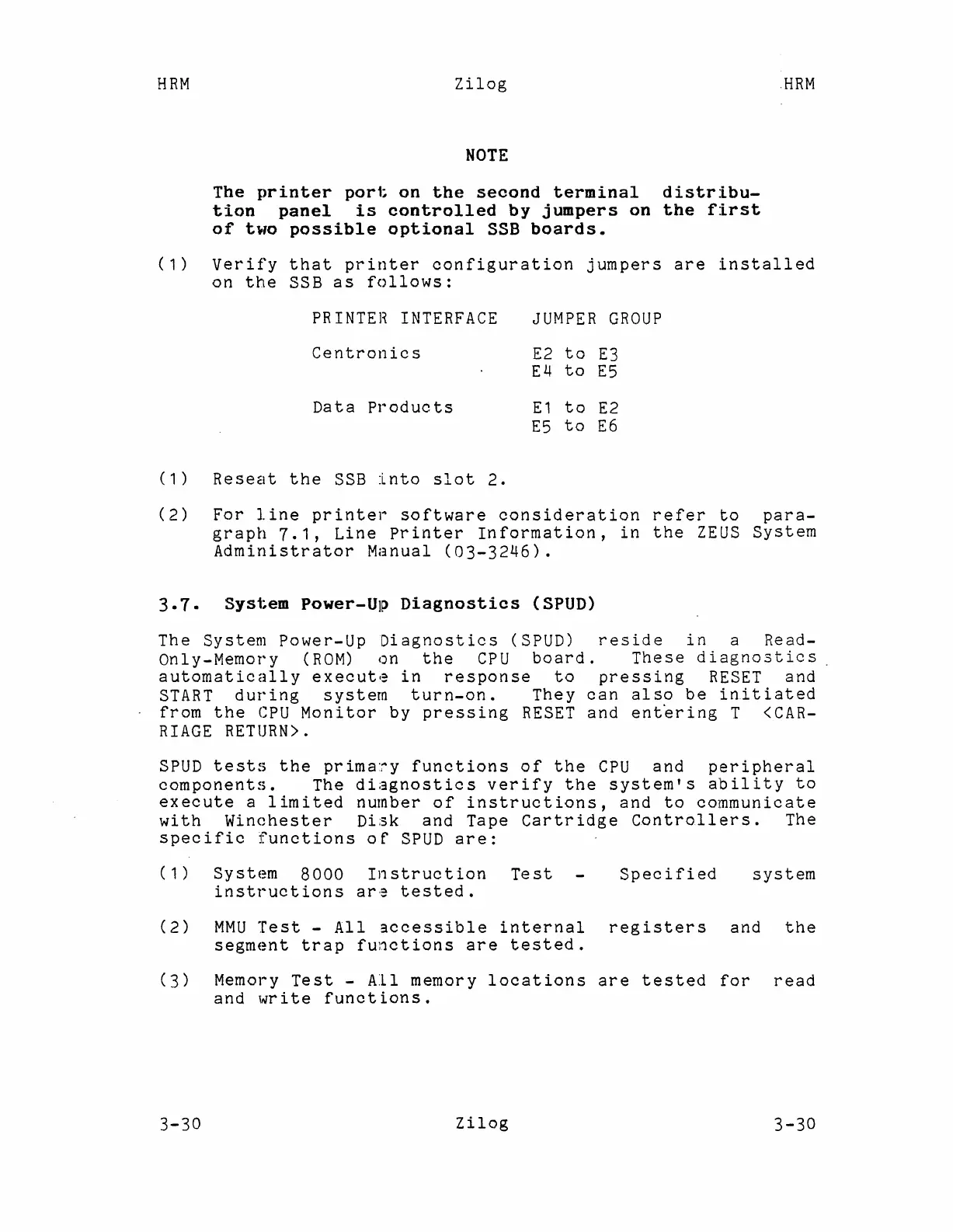

NOTE
.HRM
The printer port on the second terminal distribu-
tion panel is controlled by jumpers on the first
of t~ro possible optional SSB boards.
(1) Verify that printer configuration jumpers are installed
on the SSB as follows:
PRINTER INTERFACE
Centronics
Data pr'oducts
( 1) Res eat the SSB :L n to s lot 2.
JUMPER GROUP
E2 to E3
E4 to E5
E1 to E2
E5 to E6
(2) For line printer software consideration refer to para-
graph 7.1, Line Printer Information, in the ZEUS System
Administrator Manual (03-3246).
3.7. Sys1~em Power-Up Diagnostics (SPUD)
The System power-Up Diagnostics (SPUD) reside in a Read-
Only-Memory (ROM) on the CPU board. These diagnostics
automatically execute in response to pressing RESET and
START during system turn-on. They can also be initiated
from the CPU Monitor by pressing RESET and entering T <CAR-
RIAGE RETURN).
SPUD tests the prima~y functions of the CPU and peripheral
components. The diagnostics verify the system's ability to
execute a limited number of instructions, and to communicate
with Winchester Disk and Tape Cartridge Controllers. The
specific functions of SPUD are:
(1) System 8000 Instruction Test
instructions are tested.
Specified
system
(2) MMU Test - All 3ccessible internal registers and the
segment trap functions are tested.
(3) Memory Test - All memory locations are tested for read
and write functions.
3-30 2ilog 3-30
