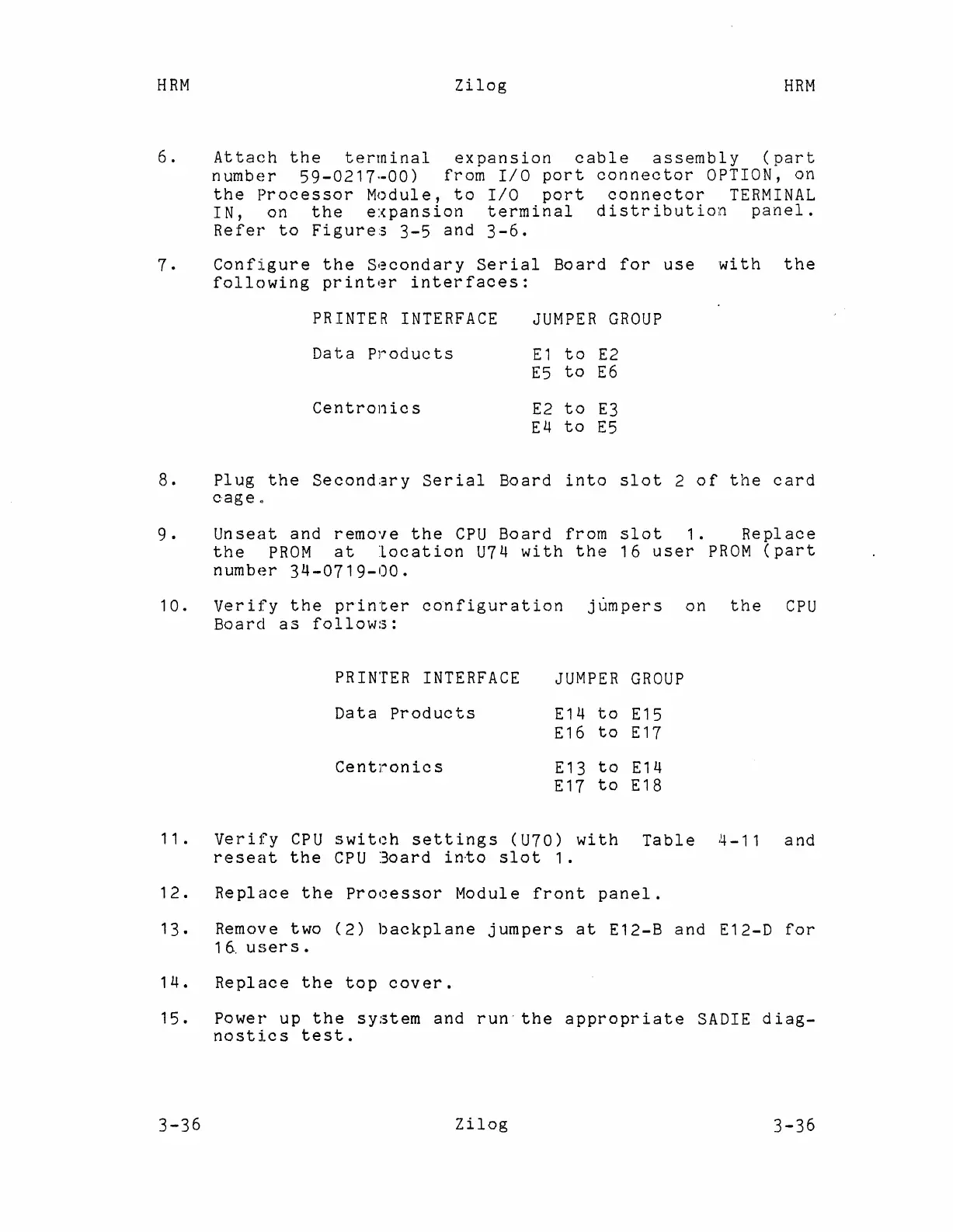

6. Attach the terminal expansion cable assembly (part
number 59-0217·-00) from I/O port connector OPTION, on
the Processor Module, to I/O port connector TERMINAL
IN, on the expansion terminal distribution panel.
Refer to Figures 3-5 and 3-6.
7.
Configure the Sf~condary
Serial
Board for use with
the
following
printl~r
interfaces:
PRINTER
INTERFACE
JUMPER GROUP
Data
Pl'''oducts
E1
to
E2
E5
to
E6
Centronics
E2
to
E3
E4
to
E5
8. Plug
the Secondary
Serial Board
into slot
2
of the card
e-age ..
9. Unseat and remove the CPU Board from slot 1. Replace
the PROM at location U74 with the 16 user PROM (part
number 34-0719-00.
10. Verify the p~inter configuration j0mpers on the CPU
Board as follows:
PRINTER INTERFACE
Data Products
Centr-'on ic s
JUMPER GROUP
E14 to E15
E16
to E17
E13
to E14
E17 to E18
11. Verify CPU switc~h settings (U70) with Table ,4-11 and
reseat the CPU :3oard in-to slot 1.
12. Replace the Processor Module front panel.
13. Remove two (2) backplane jumpers at E12-B and E12-D for
16. users.
14. Replace the top cover.
15. Power up the system and run· the appropriate SADIE diag-
nostics test.
