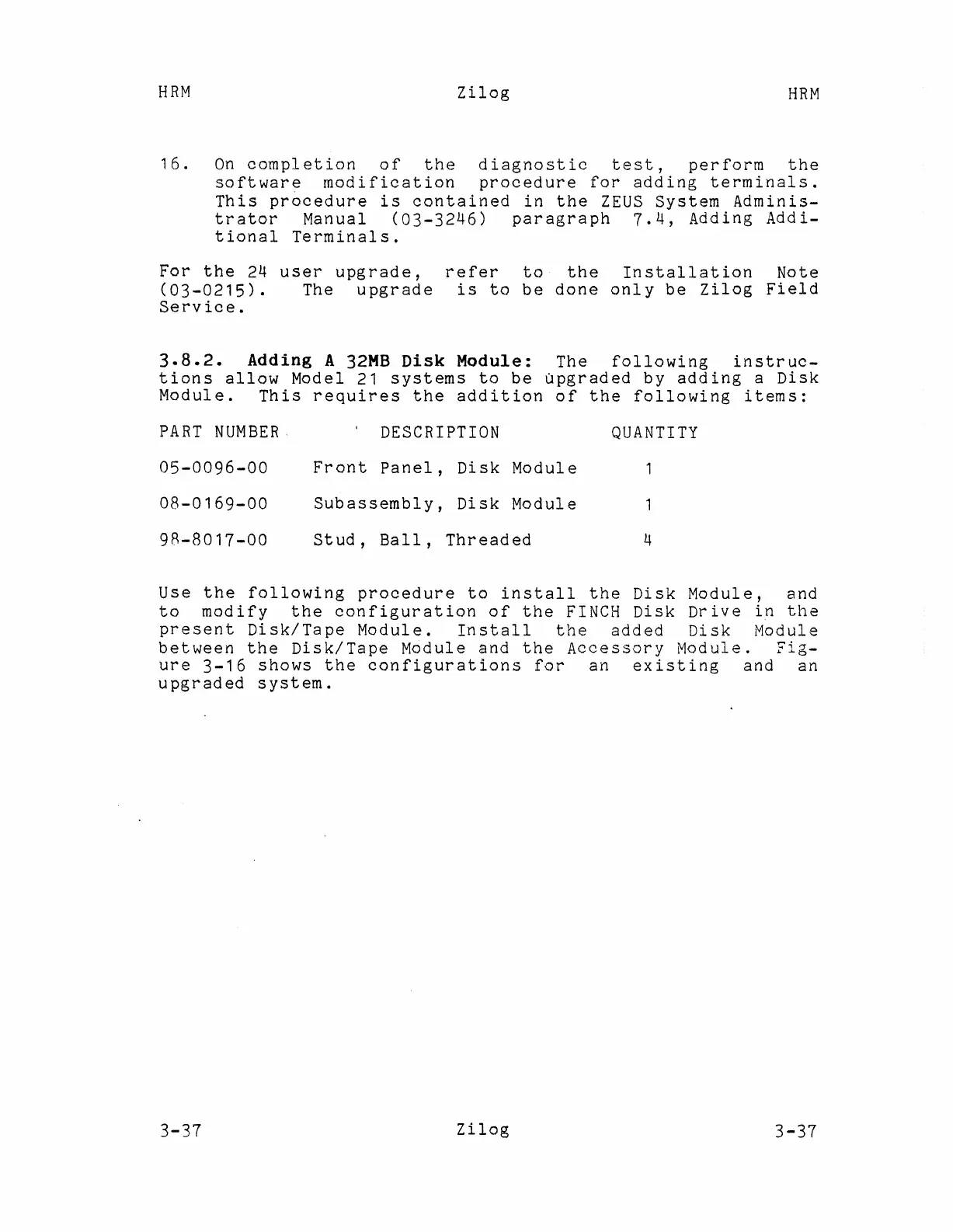

HRM
Zilog
HRM
16.
On
completion
of
the
diagnostic
test,
perform
the
software
modification
procedure
for
adding
terminals.
This
procedure
is
contained
in
the
ZEUS
System
Adminis-
trator
Manual
(03-3246)
paragraph
7.4,
Adding
Addi-
tional
Terminals.
For
the
24
user
upgrade,
(03-0215).
The
upgrade
Service.
refer
to
the
Installation
Note
is
to
be
done
only
be
Zilog
Field
3.8.2.
Adding A
32MB
Disk
Module:
The
following
instruc-
tions
allow
Model
21
systems
to
be
upgraded
by
adding
a
Disk
Module.
This
requires
the
addition
of
the
following
items:
PART
NUMBER
05-0096-00
08-0169-00
98-8017-00
DESCRIPTION
Front
Panel,
Disk
Module
Subassembly,
Disk
Module
Stud,
Ball,
Threaded
QUANTITY
4
Use
the
following
procedure
to
install
the
Disk
Module,
and
to
modify
the
configuration
of
the
FINCH
Disk
Drive
in
the
present
Disk/Tape
Module.
Install
the
added
Disk
Module
between
the
Disk/Tape
Module
and
the
Accessory
Module.
Fig-
ure
3-16
shows
the
configurations
for
an
existing
and
an
upgraded
system.
3-37
