Step 1: Attach the mounting template sticker to the wall, and drill holes according to the mounting paper.
Fix the back plate on the wall using wall mounting screws.
Step 2: Attach the device to the back plate.
Step 3: Fasten the device to the back plate with a security screw.
1.5 Connection Procedure

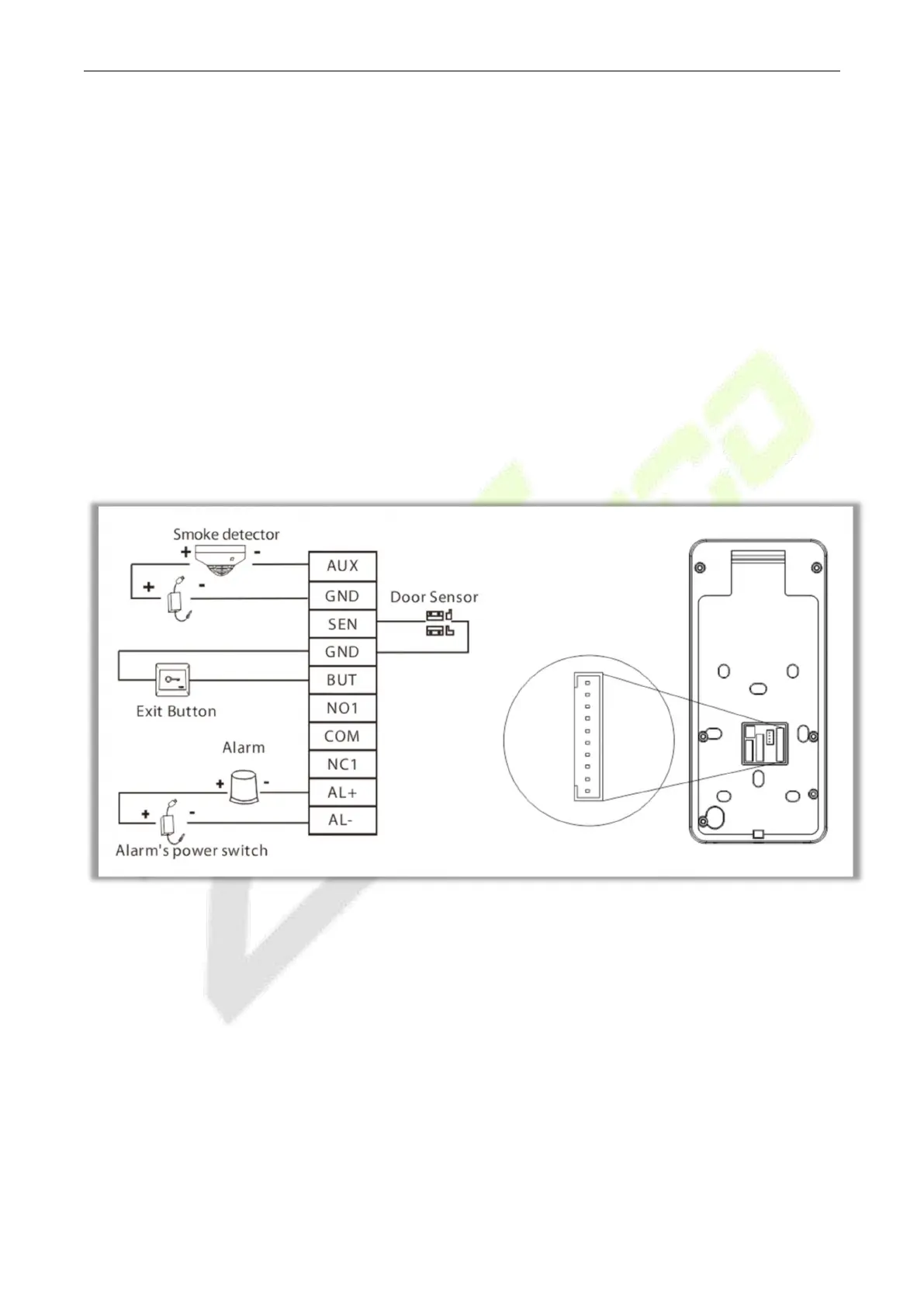

1.5.1 Connecting Auxiliary Devices and Buttons
 Connect the Exit button to the GND and BUT terminals.
 Connect the Door Sensor to the
SEN
and
GND
terminals.
 Connect the Alarm to the AL + and AL- terminals.
 Connect the Auxiliary device to the GND and AUX terminals.
