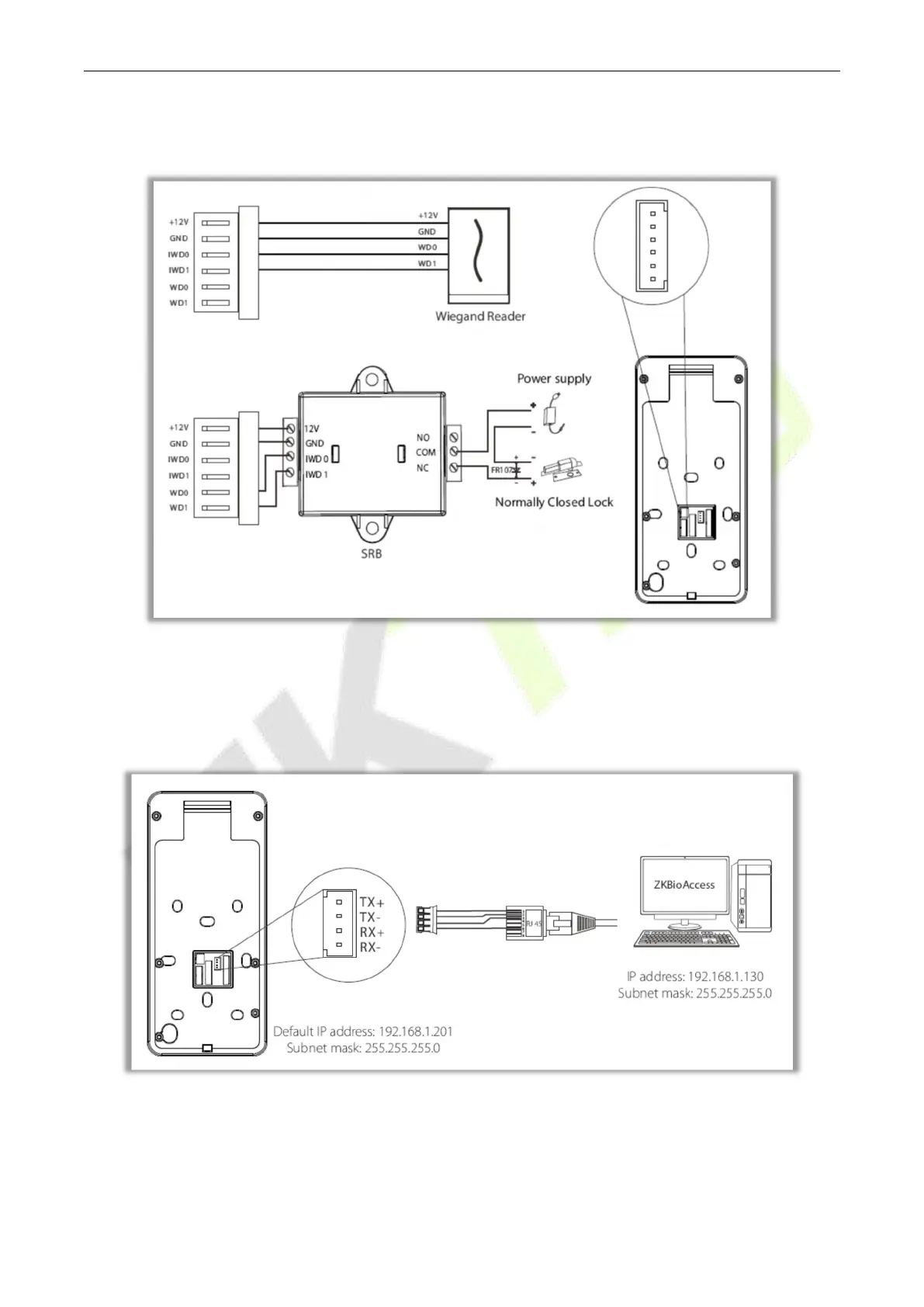

1.5.3 Weigand Reader/SRB Connection
 Connect the WD0 and WD1 terminals to the SRB.
 Connect the IWD0, IWD1, GND, + 12V terminals to the Weigand Reader.
1.5.4 Ethernet Connection
 Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment when
connecting to ZKBioAccess software.
