Zodiac VORTEX-PRO VX40 - VX40 Control Box Interface; VX50 4 WD Control Box Interface

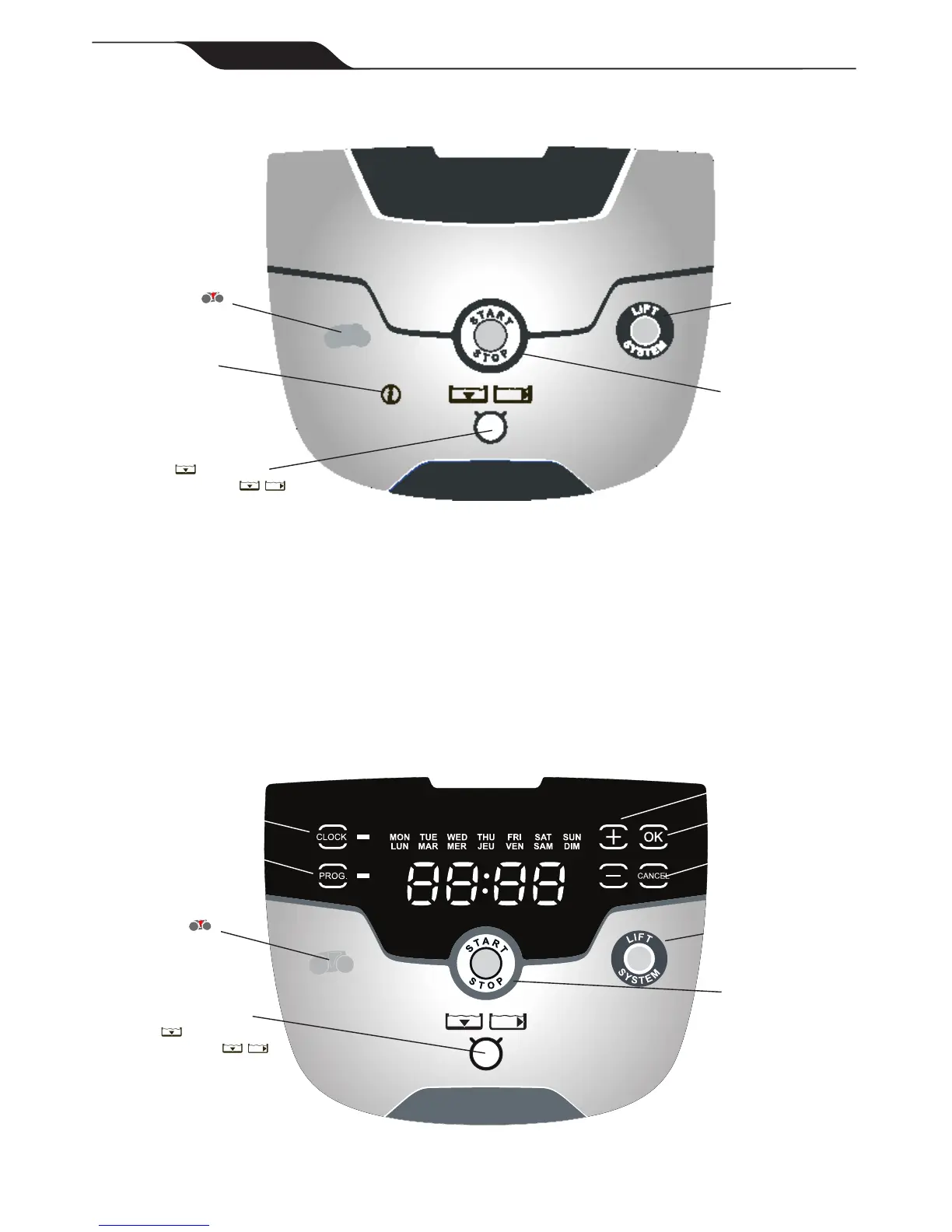

4.2 The VX40 Cleaner Control box
Figure 18. VX40 Control Box
4.3 The VX50 4WD Cleaner Control box
Figure 19. VX50 4WD Control Box
Display Current
Time/ Set Time
Program Cleaning
Cycles / Set Time
Navigate Day/Hour
Remove Cleaner
from Pool
Start/Stop Cleaner
Operation
Cancel Programming
Validate Time Setting
Selection
Select Cleaning Surface
• Floor
• Floor and Walls
Dirty Filter
Indicator
Select Cleaning Surface
• Floor
• Floor and Walls
Start/Stop Cleaner
Operation
Remove Cleaner
from Pool
Cleaner Error
Indicator
Dirty Filter
Indicator
H0516700_REV A
10
