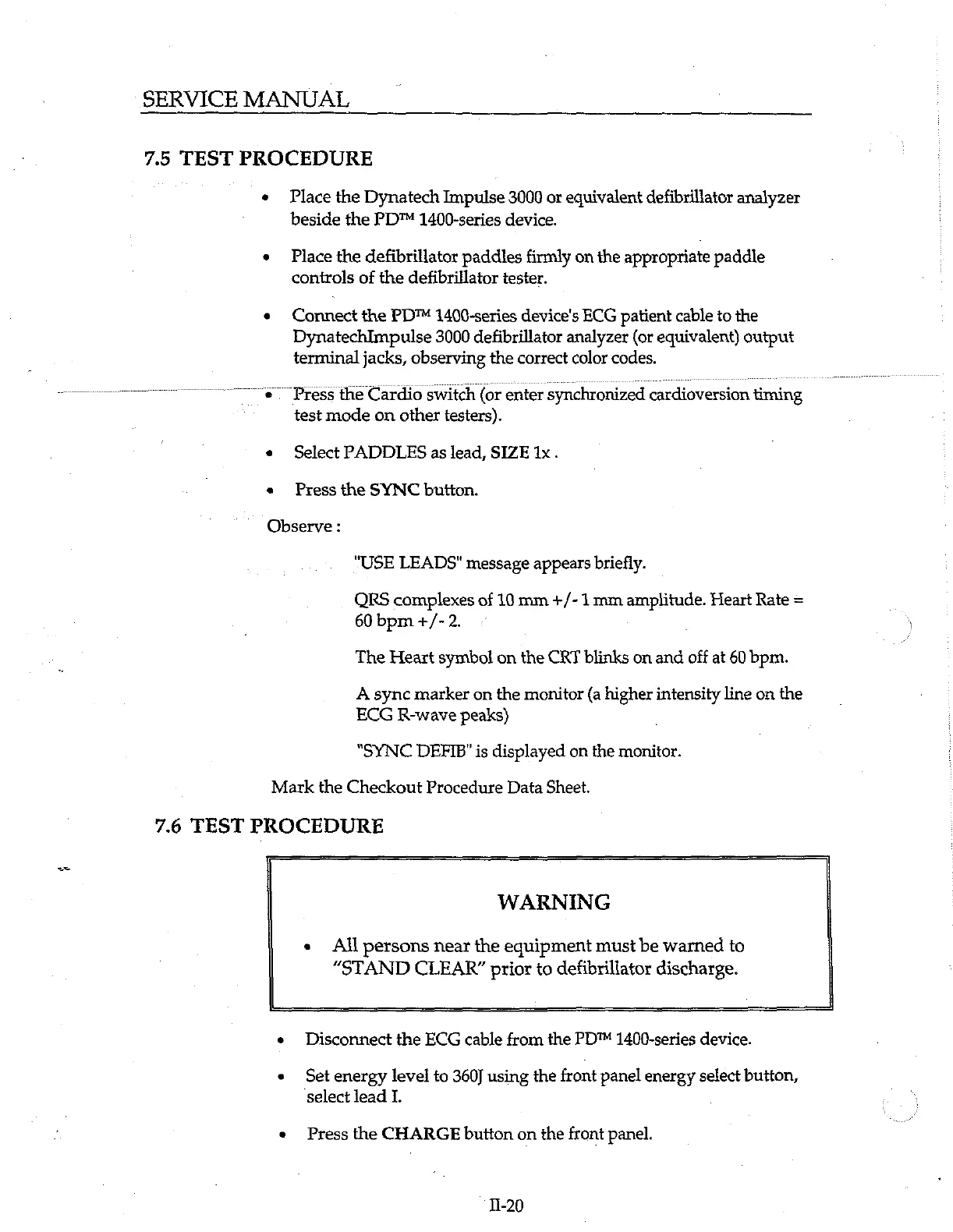

SERVICE MANUAL
7.5 TEST PROCEDURE
Place the Dynatech Impulse 3000 or equivalent defibrillator analyzer
beside the PD™ 1400-series device.
Place the defibrillator paddles firmly on the appropriate paddle
controls of the defibrillator tester.
Connect the PD™ 1400-series device's ECG patient cable to the
DynatechImpulse 3000 defibrillator analyzer (or equivalent) output
terminal jacks, observing the correct color codes.
Press the Cardio switch (or enter synchronized cardioversion timing
test mode on other testers).
Select PADDLES as lead, SIZE 1x.
Press the SYNC button.
Observe :
“USE LEADS" message appears briefly.
QRS complexes of 10 mm +/- 1mm amplitude. Heart Rate =
60 bpm +/- 2.
The Heart symbol on the CRT blinks on and off at 60 bpm.
A sync marker on the monitor (a higher intensity line on the
ECG R-wave peaks)
“SYNC DEFIB" is displayed on the monitor.
Mark the Checkout Procedure Data Sheet.
7.6 TEST PROCEDURE
WARNING
+ All persons near the equipment must be warned to
“STAND CLEAR’ prior to defibrillator discharge.
Disconnect the ECG cable from the PD™ 1400-series device.
Set energy level to 360] using the front panel energy select button,
select lead I.
Press the CHARGE button on the front panel.
11-20
