ZOLL R Series Manual

Taking Measurements
9650-0914-01 Rev. C R Series Non-Invasive Blood Pressure (NIBP) 19
To take a single measurement, press the NIBP button on the R Series front panel.
The R Series unit takes one blood pressure measurement.
Taking STAT Measurements
You can set the R Series unit to take a STAT measurement, which consists of the unit taking as
many blood pressure measurements as possible (up to 10) in five minutes. When the R Series
unit finishes taking a measurement and the cuff deflates, it immediately starts another
measurement.
Whenever practical, allow several minutes between STAT measurement sequences to restore
full circulation to the monitored limb. Before initiating STAT measurements, allow the cuff
pressure to deflate below 15 mmHg which will reset the adult mode safety pressure timer. In
order to meet adult safety regulations, the safety timer will time out if the pressure does not
drop down below 15 mmHg within 180 seconds regardless of how many measurements are
performed within that time period.
WARNING! Repeated use of STAT measurements on the same patient over a short time interval can
affect blood pressure readings, limit circulation to the limb, and cause injury to the
patient.
You cannot set the R Series unit to take STAT measurements while the defibrillator is charged
or charging. Charging the defibrillator aborts all STAT measurements and deflates the cuff.
Starting STAT Measurements
To start STAT measurements, either:
• Press the NIBP button () and hold for two seconds (if the unit is configured to do so), or
• Press the NIBP Stat softkey.
If the NIBP Stat softkey label is not displayed, see “Displaying the NIBP Menu” on page 12.
3
1
SHOCKSHOCK
2
ENERGY
SELECT
ENERGY
SELECT
ANALYZEANALYZE
CHARGECHARGE
OUTPUT
mA
OUTPUT
mA
RATE
ppm
RATE
ppm
4:1
LEAD
SIZE
ALARM
SUSPEND
RECORDER
DEFIB
OFF
MONITOR
PACER
Options Param
Code
Marker
Report
Data
Alarms
11:24
72
ECG
PADS
x1
SpO2%
CPR
0:00
IDLE
Depth
Rate
99
MONITOR
NIBP
ECG
mmHg
CO2
RR
Ɔ
---
---
mmHg
122
80
94
PPI

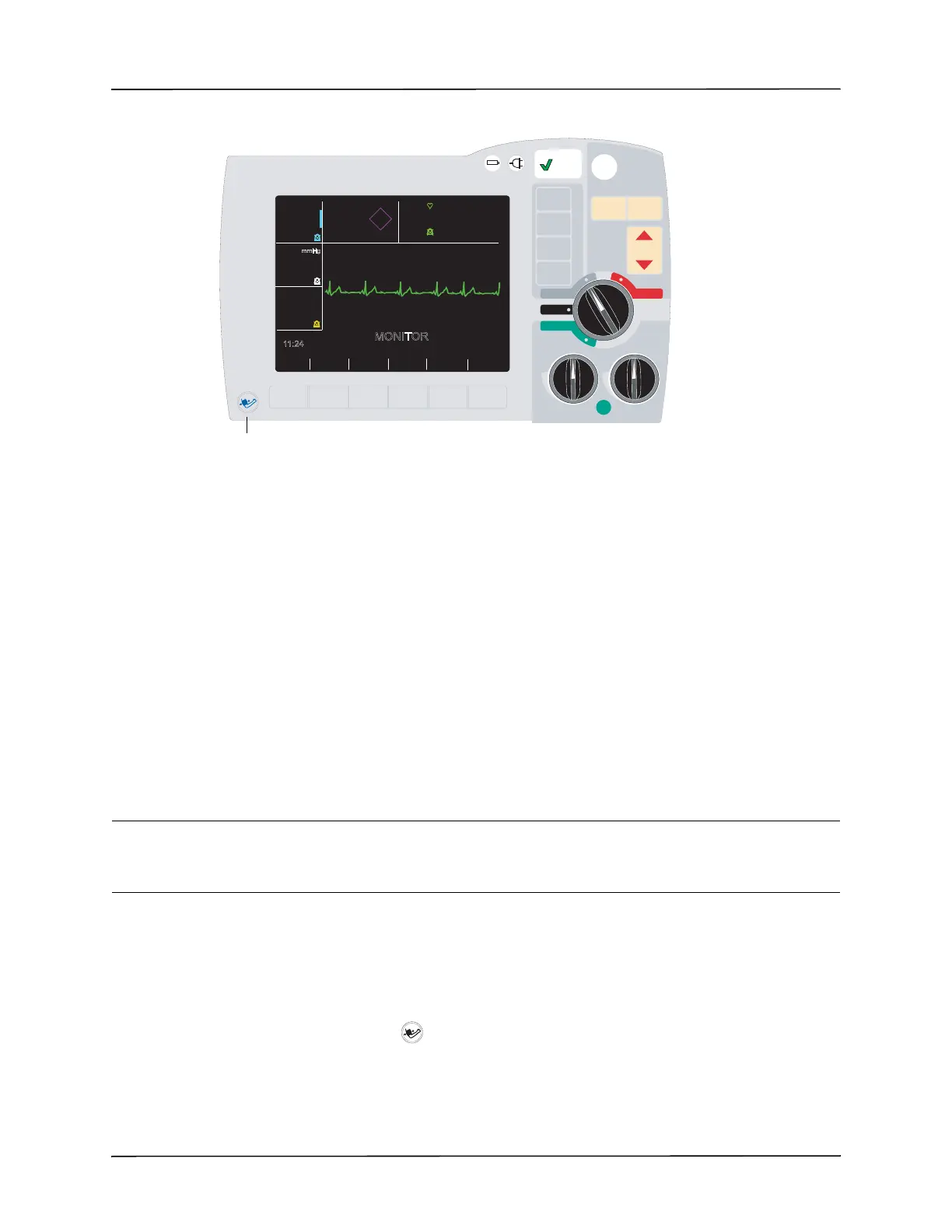

NIBP Button

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
