Printing Data
9650-0914-01 Rev. C R Series Non-Invasive Blood Pressure (NIBP) 23
Viewing Trend Data

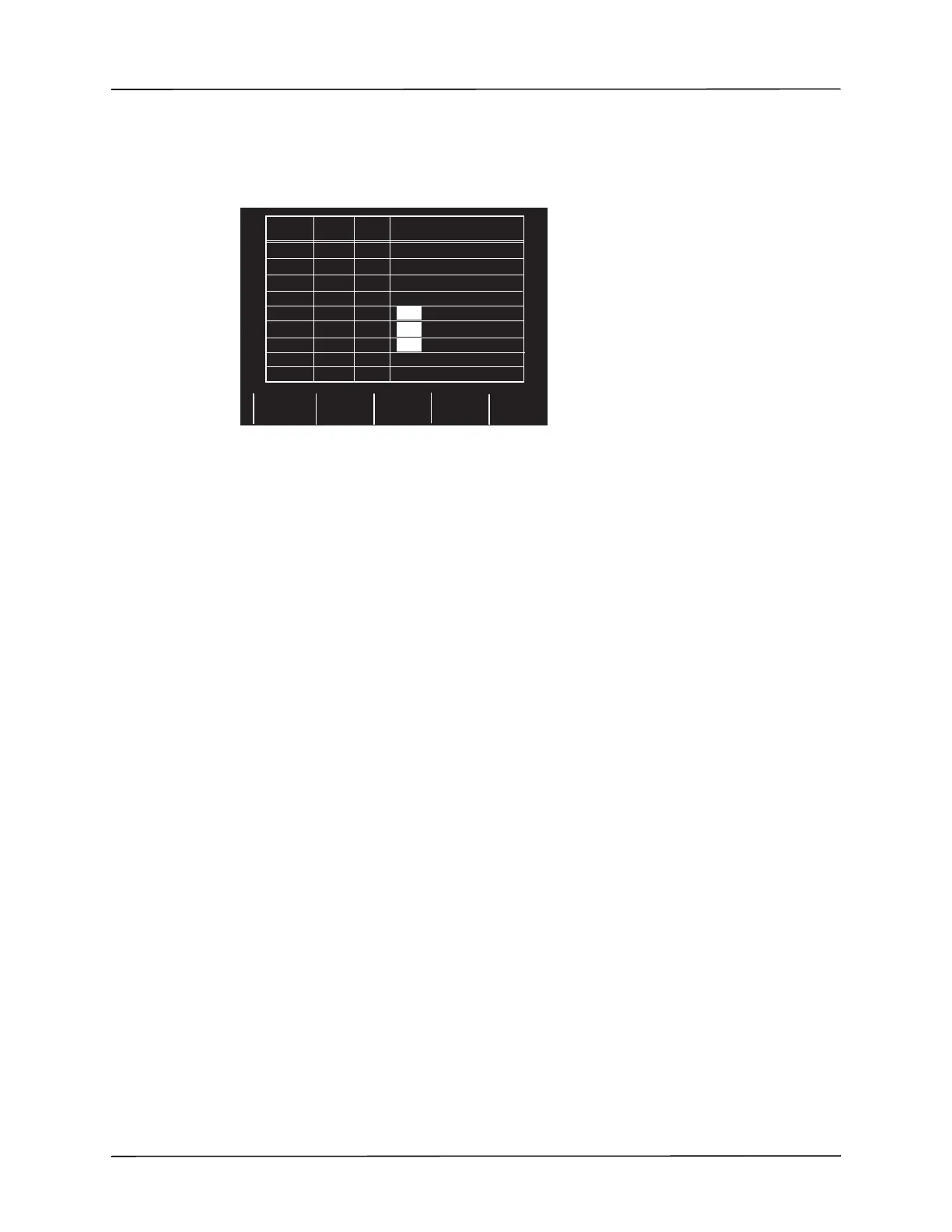

To view the patient’s trend data over the past 4 hours, press the Trend softkey. The time,
HR/PR, and readings will be displayed.
Measurements with alarm values are highlighted; an asterisk (*) shows measurements that
contain artifact.
Press Older to view previous entries if available; press Newer to return to newer entries. The
screen updates automatically during automatic or STAT measurements.
Press the Print softkey to print the displayed measurements.
Press the Return softkey to return to the main menu.
The patient’s trend data is cleared when the R Series unit remains off for more than 10 seconds.
Printing Data
A strip recorder is provided with the R Series unit to document events and data. See the
“Recorder Operation” section of the R Series Operator’s Guide for instructions on how to
record data. If you have already taken NIBP measurements, press the RECORDER button to
print a stripchart that includes the following values for the currently displayed measurement:
• Systolic blood pressure
• Diastolic blood pressure
• Mean blood pressure
• Pulse rate
• Time of measurement
Checkout Procedure
Perform the following checkout procedure daily to ensure that the NIBP option is functioning
properly. This daily checkout procedure also ensures that medical personnel maintain
familiarity with the proper use of the NIBP option.
For more specific instructions on how to accomplish each step listed below, refer to the related
section in this manual.
Perform the daily checkout procedure as follows:
Return
TIME
HR/PR
NIBP mmHg
SYS DIA M
11:22 92 127 81 96
Newer
Older
Print
11:27
11:32
11:37
11:42
11:47
11:52
11:57
12:02
91
91
92
72
86
87
91
92
127 81 96
126 72 99
126 73 100
125 72 99
127 81 96
88 54 65
86 65 72 *
81 53 62
SpO2
%
99
99
98
99
98
99
97
98
99
