Internet (WAN) to LAN Access Rule
Broadband Firewall Router could be according to administrator’s request to create WAN to
LAN Access Rules. You could follow the procedure to setup it.
1. Click Advanced Settings in the top column. Then click Firewall Setup.

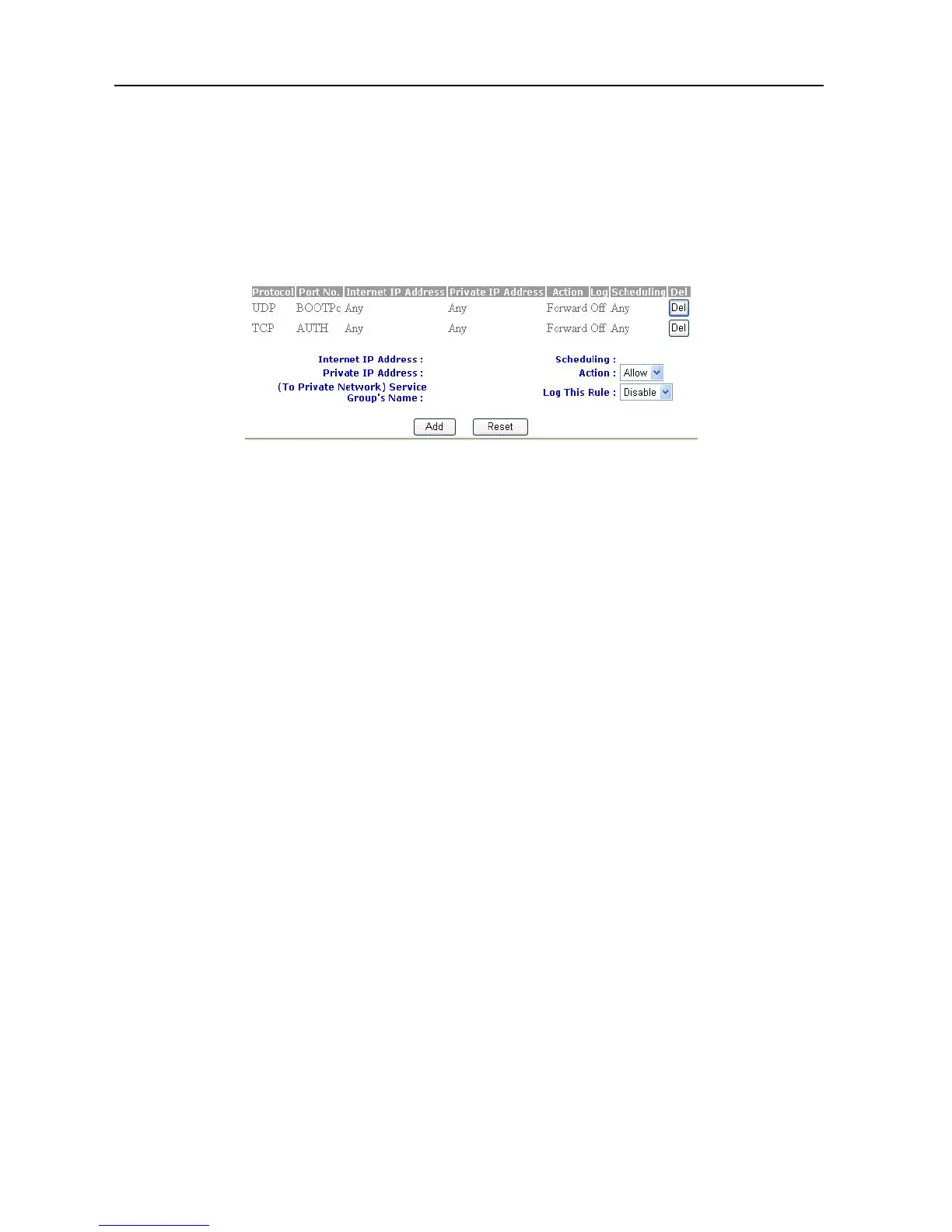

2. Click “Access Rules”, and select the direction Internet (WAN) LAN, then it will
appear a picture as below.
3. Type into the Internet IP Address Group’s name (WAN IP).
4. Type into the Private IP Address Group’s name (LAN IP).
5. Select the Service Group’s name (Port number) from Internet (WAN) to LAN.
6. Select Scheduling to your pre-define name.
7. Select Action to “Allow” or “Deny”.
8. You want to record the “Log” or not.
9. Click “Add”.
10. The setup is now completed.
URL Blocking
The Broadband Firewall Router can be used to restrict users browsing the Home Page. You
can fill in the URL or key word. To setup this restriction, please use the following procedure:
1. Click Advanced Settings in the top column. Then click Firewall Setup.
2. Click “Content Filtering”, and the box pictured below will appear.
40
