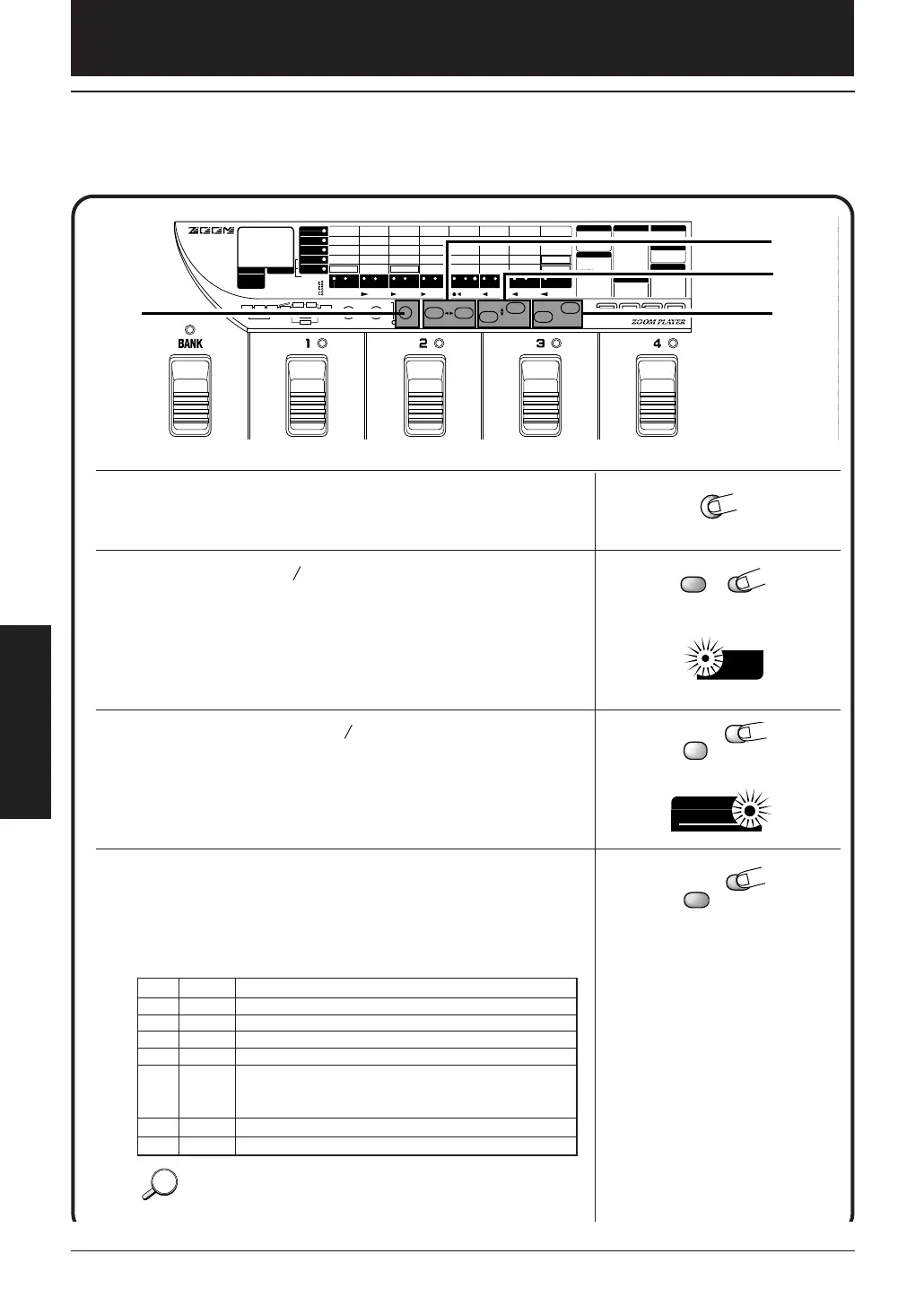

CONTROL THROUGH EXP/VOL PEDAL
Press the EDIT key to enter Edit mode.
Use the MODULE keys to select the TOTAL
module.
The TOTAL module cursor LED will flash. The TOTAL module is
a collection of parameters that set the working of the EXP/VOL
pedal and the connection method of EFF1 and EFF2 , etc.
Using the PARAMETER keys, select Parameter 1
(Pedal Assign) .
This parameter decides what effect module to assign to the
EXP/VOL pedal.
Using the VALUE +/– keys, select the effect module to
control the EXP/VOL pedal.
The relationships between the values shown in the display and
their corresponding effect modules are as follows:
"1: VOL" above controls the volume immediately after the EQ2 effect
module. Be sure to distinguish this from the Master Volume that
controls the final output.
1:OD 1
2:OD 2
3:DIST 1
4:DIST 2
5:BLUES OD
6:FUZZ
7:LEAD
8:METAL
DIST
0:OFF
1:VOLUME
2:WAH
3:DIST
4:EFF1/SFX
6:EFF2
6:REVERB
Pedal Assign
1:EQ1
2:PEDAL WAH
3:AUTO WAH
Pedal Assign
Pedal Mode
Serl/Para
Amp Sim
Master Vol
Type
Time
PreDLY/FB
Tone/Mode
Mix
Type
Depth/Time
Rate/TmFine
Tone/Width/FB
Bal/Clip
Presence
Treble
Mid
Bass
Level
Type
Gain
Tone
Level
ZNR
Type
Freq/Sens
Gain/Mix
Q/Mode
Position
Sens
Attack
Tone
Mode
Patch Level
PEDAL
(MODULE ON/OFF)
TUNER CALIB
435-445Hz
OFF
8 types analog Distortion
Harmonized Pitch Shifter
32 Individual effects
56 programs
VOL
EXP
TUNER
STORE
GROUP EDIT MODULE
PARAMETER
+
–
VALUE
Type
Pitch/Depth/Key
Fine/Rate/Time
Shift/Peak
Mix/Bal/Mode
EQ1/WAH
1:HALL
2:ROOM
3:
PINGPONG
DLY
REVERB
1:
SUPER BENDER
2:PITCH DLY
3:HPS
SFX
1:PEDAL PITCH
2:PITCH SHIFT
3:FLANGER
4:PHASE
5:CHORUS
6:
SLOW ATTACK
7:STEP
8:TREMOLO
9:METALLIC
EFF1
PARM 1
PARM 2
PARM 3
PARM 4
PARM 5
COMP
B1
1:
STEREO CHORUS
2:AUTO PAN
3:MONO DLY
4:
PINGPONG
DLY
EFF2
EQ1/WAH
B2
DIST
B3
EQ2
B4
EFF1/SFX
B1
EFF2
B2
REVERB
B3
TOTAL
♯
♭
EQ1/WAH
BANKGROUP
:USER
:PRESET
:BOTH
U
P
.
EFF1
EFF2
SFX
EFF2EFF1
COMP DIST EQ2 REV
VOL
U.0
1,7
4,6
3,5
2
By using the 3030's in-built EXP/VOL pedal, you can control any effect parameter and EQ2 direct volume in
realtime. For example, you can change the force of the distortion or increase the reverb time during
performance. The parameters that you can control are determined by the effect module assigned to the pedal.
CONTROL THROUGH EXP/VOL PEDAL
Value Control Contents
0 OFF
The function of the EXP/VOL pedal is OFF.
1 VOLUME
The volume immediately after EQ2 can be controlled.
2WAH
Frequency is controlled with PEDAL WAH, and sensitivity with AUTO WAH.
3 DIST
Gain can be controlled.
4 EFF1/SFX
Rate can be controlled with FLANGER, PHASE, SLOW ATTACK, STEP, and
TREMOLO; balance and mix with PITCH SHIFT, CHORUS, METALLIC, and
HPS; pitch with PEDAL PITCH and PITCH DELAY; and time with SUPER
BENDER.
5 EFF2
Rate can be controlled with AUTO PAN, and balance with the other effects.
6 REVERB
Mix can be controlled.
To Next Page
