Zoom 5354 - Page 55


55

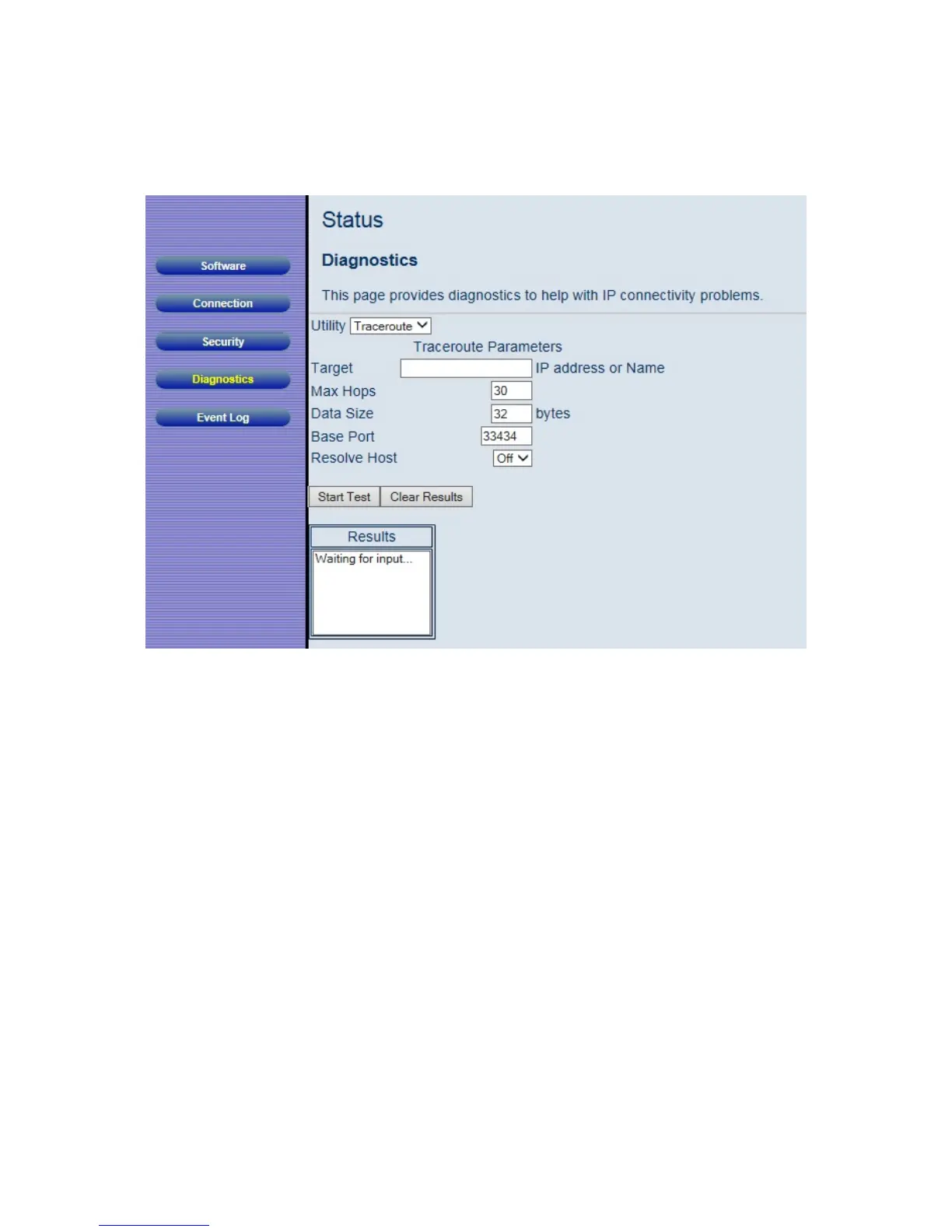

Figure 8. Example of Diagnostics - Traceroute Page
To run either utility:
1 Select the utility from the Utility drop-down list.
2 Make any changes to the default parameters.
3 Select Start Test to begin. The window will automatically be refreshed as the results
are displayed in the Results table.
