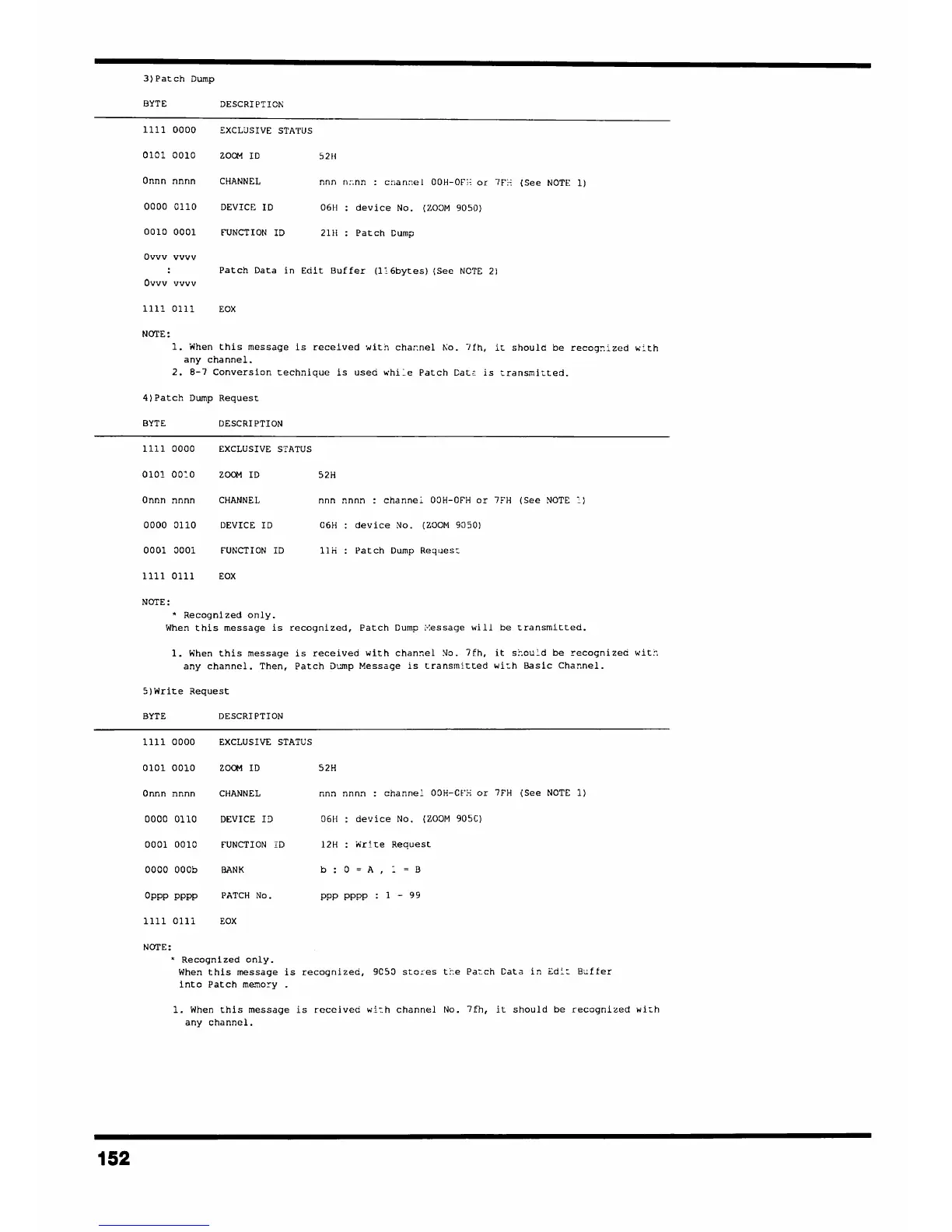

3)Patch Dump
BYTE DESCRIPTICN
1111 0000 EXCLJSIVE STATUS
0101 0010 ZOOM
IC 52H
Onnn nnnn CHANNEL nnn nr.nn
: cfiannel 00H-Or;; or 7Fr: (See NOTE 1)
0000 0110 DEVICE ID 06H : device No. (203M 9050)
0010 0001 FUNCTION Ii) 21H
: Patch Cump
owv vvvv
Patch Data in Edit Buffer (116bytes) {See NCTE
2)
ovvv vvvv
1111 0111 EOX
NOTE
:
1. When this message is received vitn char-nel KO. 7fh, it should be recogz~zed wrth
any channel.
2. 8-7 Conversion technique is usec while Patch Cat: is :ransmi:ted.
4) Patch Dump Request
BYTE DESCRIPTION
1111 0000 EXCLUSIVE STATUS
0101 0010 ZOOM ID 52H
Onnn nnnn CHANNEL nnn nnnn
: channei OOH-OFH or 7FH (See NOTE l:
0000 D110 DEVICE ID 06H : device No. (ZOOM 9050)
0001 DO01 FUNCTION ID llii : Patch Dump Reques:
1111 0111 EOX
NOTE
:
* Recognized only.
When this message
is recognized, Patch Dump Xessage will be transmitted.
1. When this message is received with channel No. 7fh, it sP.ould be recognized wit.-.
any channel. Then, Patch Dmp Message is transmitted wi~h Basic Channel.
S) Write Request
BYTE DESCRIPTION
1111 0000 EXCLUSIVE STATUS
0101 0010 ZOOM ID 52H
Onnn nnnn CHANNEL nnn
0000
0110 DEVICE
I3 0614
0001 0010 FUNCTION TD 12H
0000 OOOb BANK b
:
Oppp pppp PATCH No. PPP
nnnn : channel 00H-CEX or 7FH (See NOTE 1)
: device No. (Z03M 905C)
: Write Request
O=A,
I=B
pppp : 1 - 99
1111 0111 EOX
NOTE:
* Recognized only.
When this message
is recognized, 9053 stoLes tke Patch Cata in Zdi: B~ffer
into Patch memory
.
1. When this message is received wi-h channel No. 7fh, it should be recognized wich
any channel.
