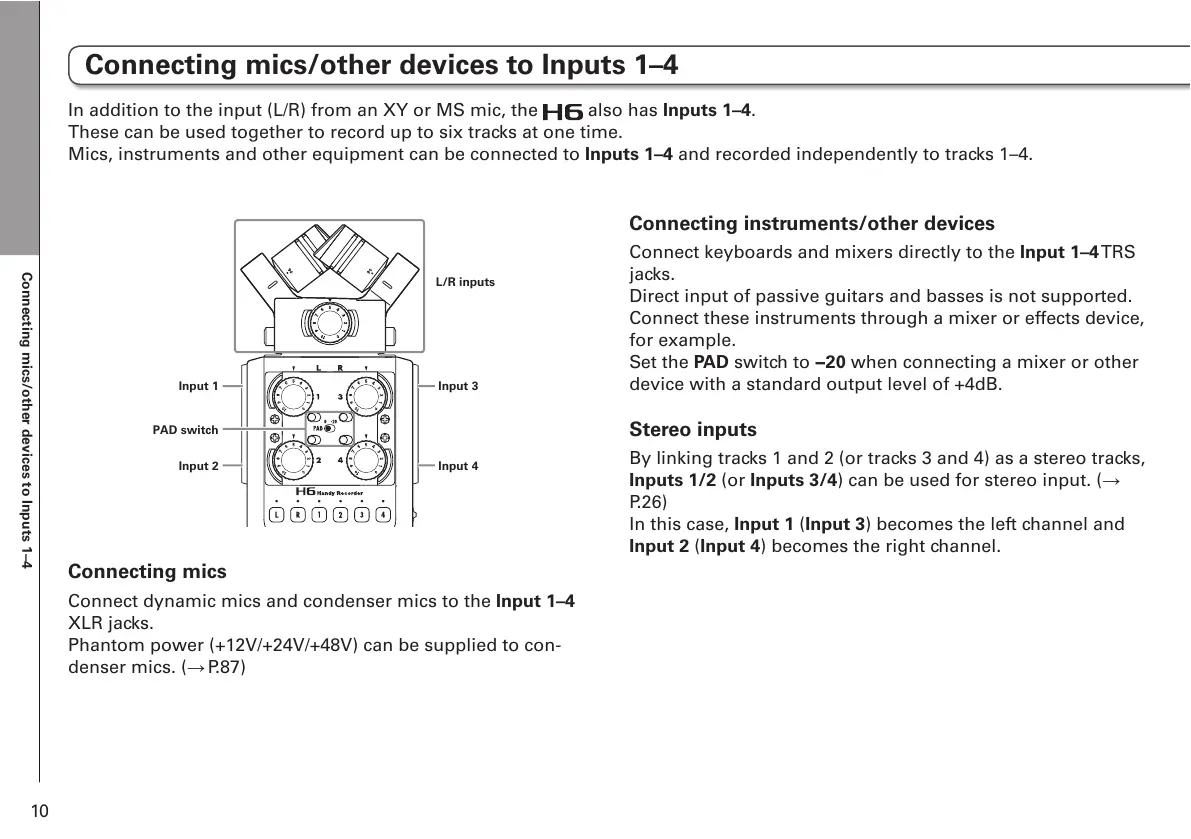

Connecting mics/other devices to Inputs 1–4
10
Connecting mics/other devices to Inputs 1–4
Connecting mics
Connect dynamic mics and condenser mics to the Input 1–4
XLR jacks.
Phantom power (+12V/+24V/+48V) can be supplied to con-
denser mics. (ĺP.87)
Connecting instruments/other devices
Connect keyboards and mixers directly to the Input 1–4 TRS
jacks.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects device,
for example.
Set the PAD switch to −20 when connecting a mixer or other
device with a standard output level of +4dB.
Stereo inputs
By linking tracks 1 and 2 (or tracks 3 and 4) as a stereo tracks,
Inputs 1/2 (or Inputs 3/4) can be used for stereo input. (ĺ
P.26)
In this case, Input 1 (Input 3) becomes the left channel and
Input 2 (Input 4) becomes the right channel.
Input 1
PAD switch
Input 2
Input 3
Input 4
L/R inputs
In addition to the input (L/R) from an XY or MS mic, the also has Inputs 1–4.
These can be used together to record up to six tracks at one time.
Mics, instruments and other equipment can be connected to Inputs 1–4 and recorded independently to tracks 1–4.
