RT100 Rough Terrain Crane 07 -
9

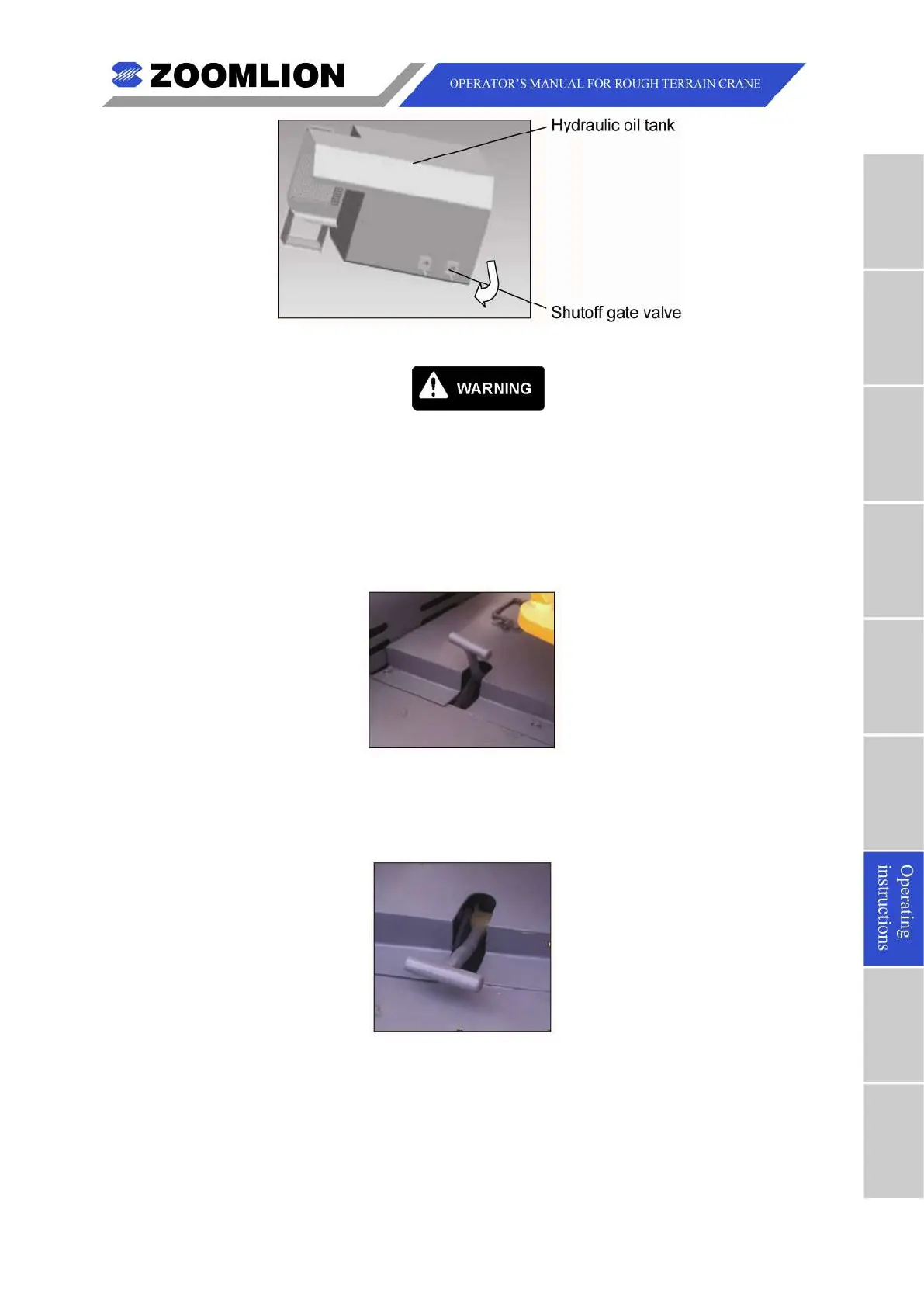

Figure 07 – 1 Hydraulic Oil Tank
You must open the shutoff gate valve before you engage the PTO. You can
cause damage the hydraulic system if the valve is closed when you engage
the PTO.
c) Engage the PTO.
d) The PTO handle is located near the superstructure. Pull the handle up to
engage the PTO.
Figure 07 – 2 Engage PTO Handle
(3) Disengage the PTO.
a) Push down the PTO handle to disengage the PTO.
Figure 07 – 3 Disengage PTO Handle
