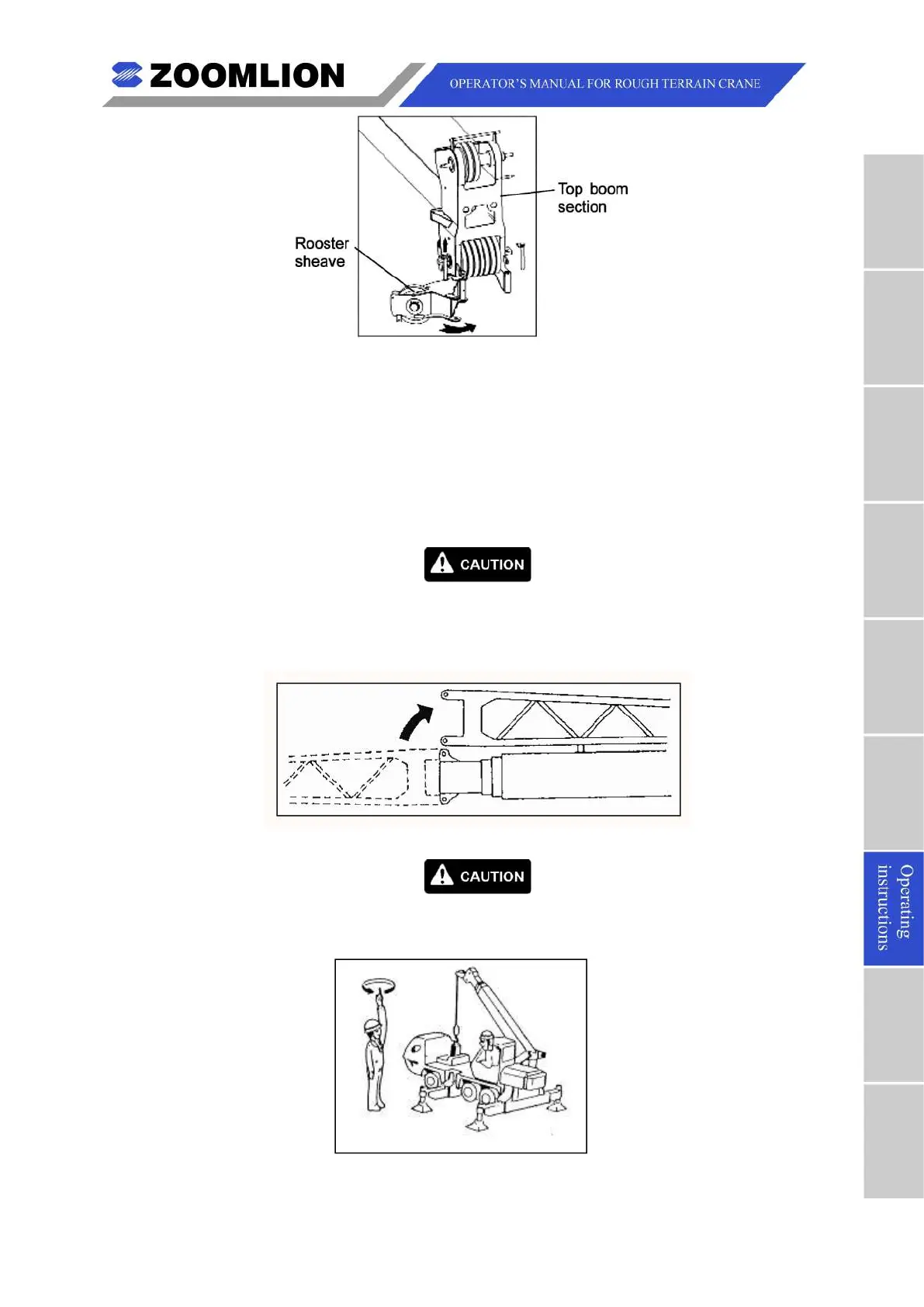

Figure 07 – 54 Rooster Sheave Assembly
(d) Reeve the auxiliary wire-rope through the rooster sheave. Install the auxiliary
hook and the anti-two block switch. Make sure that all connections are tight.
When it is not necessary to use the rooster sheave, make sure that it is attached to
the side of the boom. Disassemble it in the reverse order of the assemble
When it is not necessary to use the jib, make sure that it is attached to the
side of the boom. You cannot use rooster sheave when the jib is attached
to the front of the boom.
Figure 07 – 55 Attach the Jib to the Side of the Boom
When you remove the auxiliary hook and put it in the stow position, obey
the hand signals from the signal personnel.
Figure 07 – 56 Hand Signal – Stow Position
