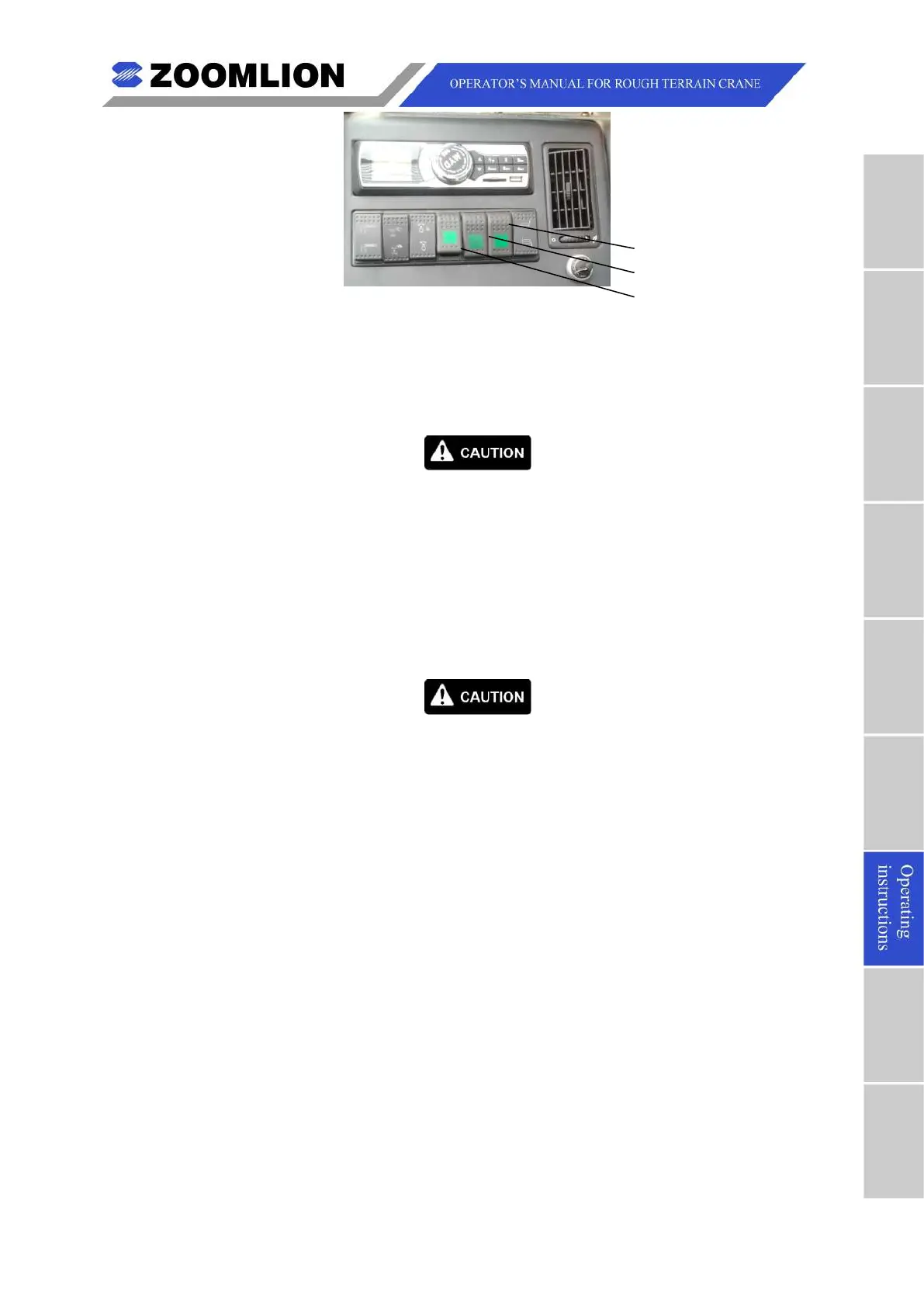

Figure 07 – 58 Dash
1 Left counterweight cylinder extend / retract select switch
2 Right counterweight cylinder extend / retract select switch
3 Counterweight cylinders extend / retract switch
If the left and right counterweight cylinders do not move together, use the
switch 1 and switch 2 (Refer to Figure 07 – 58) to make the cylinders move
together.
(7) Use the counterweight lock pins and spring pins to lock the counterweight to the
superstructure.
C. Disassembly
Disassemble the counterweight in reverse order of the assemble steps.

Assemble and disassemble the counterweight by TWO person.

Do not start the hydraulic motor for A/C if operate the counterweight.
