RT60 Rough Terrain Crane 07 - 21

d) Remove the socket;

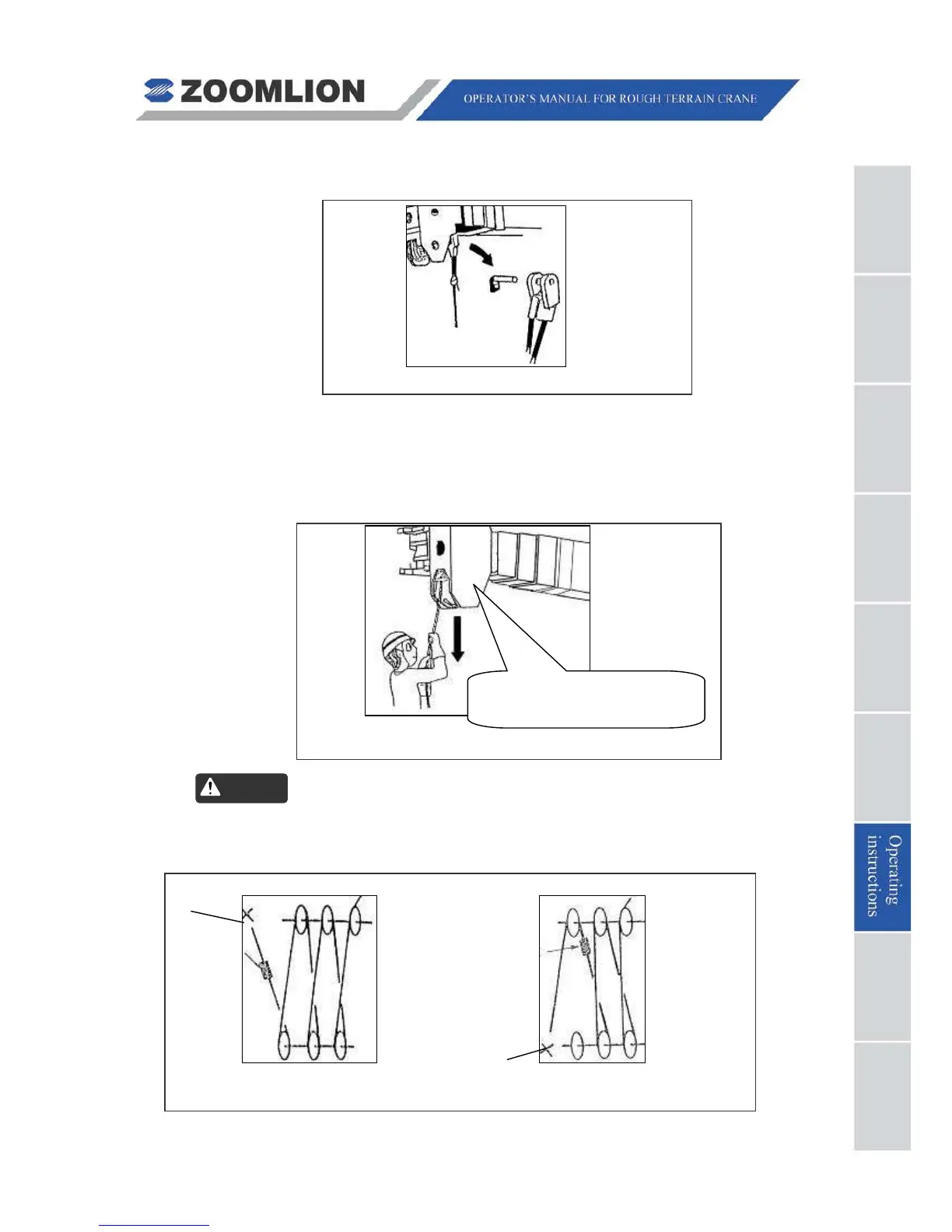

Fig. 07 - 14

Even line parts

NOTE:

Dead end the rope on the hook block for an even number of parts.

e) Change the line parts.

Fig. 07 - 15

(1) Install the counterweight of anti-two block according to the following

illustration;

Counterweight for even number of line parts Counterweight for odd number of line parts

Fig. 07 – 16

Note

Counterweight Counterweight

Socket on boom

head

Pull the wire rope outwards while

lowering the hook.

Socket on hook

block
