07 - 32 RT60 Rough Terrain Crane
MAIN WINCH + TELESCOPE

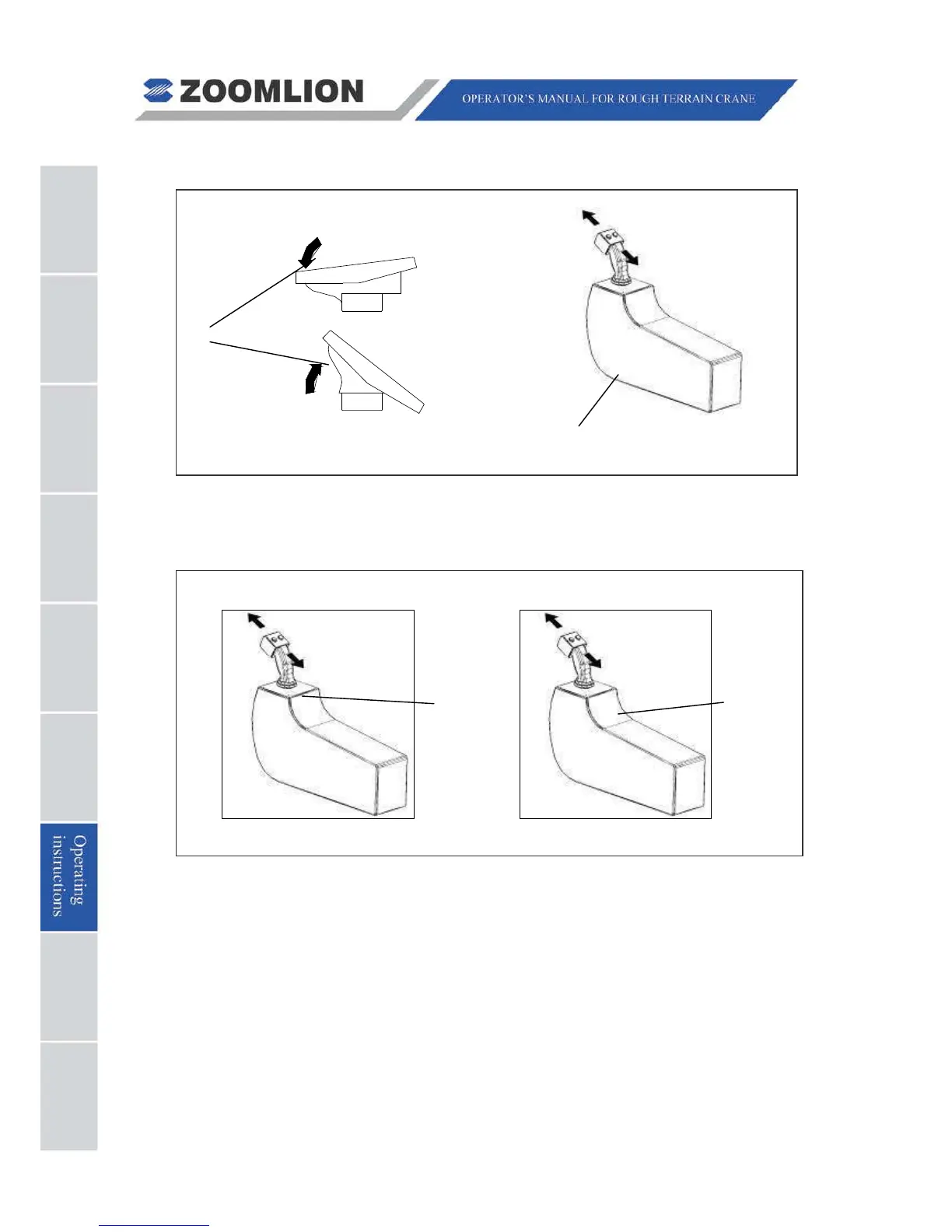

Fig. 07 – 27
Move the right joystick and tilt the boom extend / retract pedal at a time to initiate required
crane movements.
MAIN WINCH + AUXILIARY WINCH
Fig. 07 – 28
Move left and right joysticks at a time to initiate required crane movements.
Tilt forward to extend boom
Tilt backward to retract boom
Move forward to pay out main winch rope
Move backward to take in main
winch rope
Boom extend /
retract pedal
Right joystick
Move forward to pay out aux. winch rope
Move backward to take
in aux. winch rope
Left
joystick
Move forward to pay out main winch rope
Move backward to take in main
winch rope
Right
joystick
