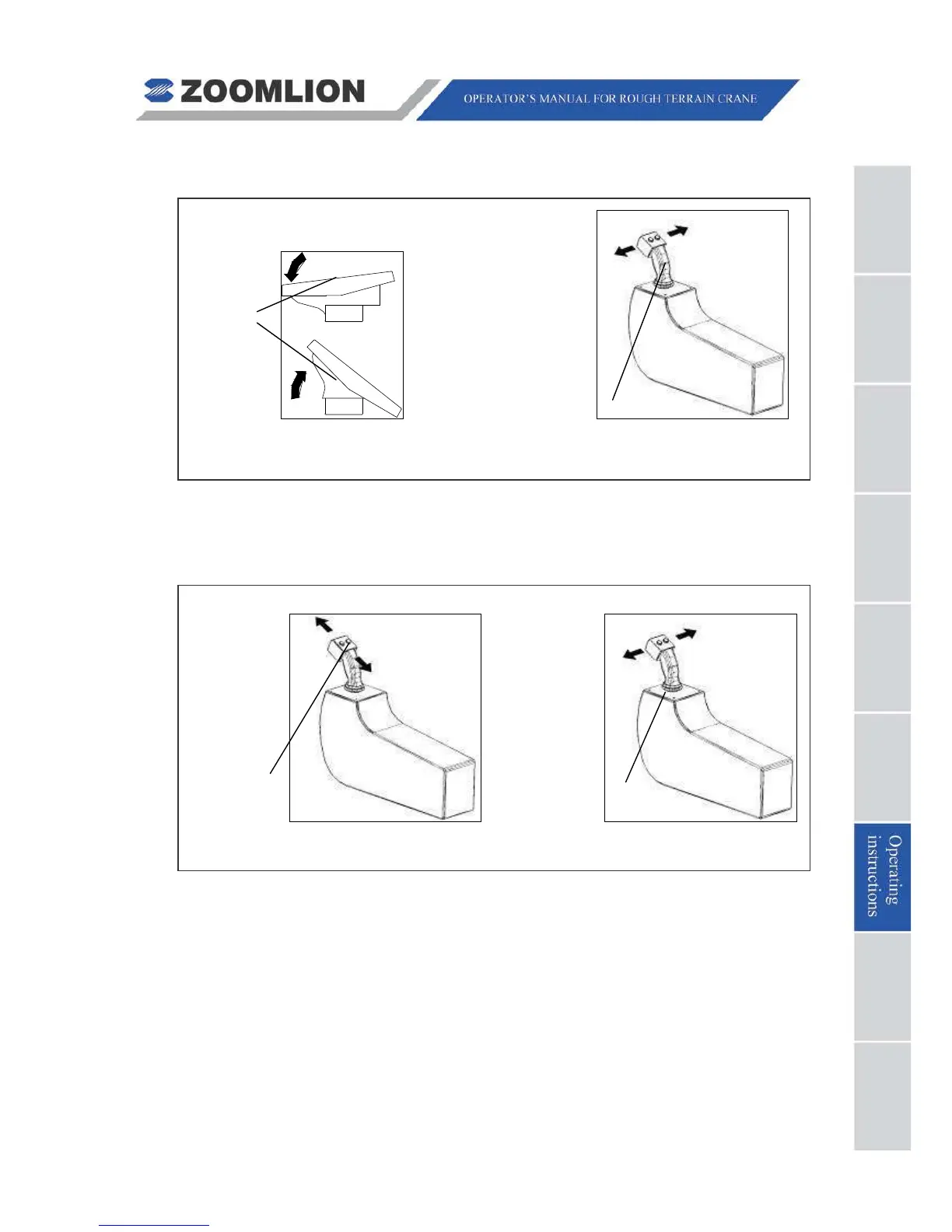

RT60 Rough Terrain Crane 07 - 33
LUFF + TELESCOPE
Fig. 07 3 Fig. 07 29
Fig. 07 – 29
Move the right joystick and tilt the boom extend / retract pedal at a time to initiate required
crane movements.
LUFF + AUXILIARY WINCH
按图示方向同时操作左、右手柄,即可使起重机主臂变幅和副卷扬同时动作。
Fig. 07 32
Fig. 07 – 30
Move left and right joysticks at a time to initiate required crane movements.
Move right to luff boom
down
Move left to luff boom up
Right joystick
Move forward to pay out aux.
winch rope
Move backward to
take in aux. winch
rope
Move right to luff
boom down
Move left to luff
boom up
Left joystick
Right joystick
Tilt forward to extend boom
Tilt backward to retract boom
Boom extend /
retract pedal
