07 - 34 RT60 Rough Terrain Crane
SWING + LUFF

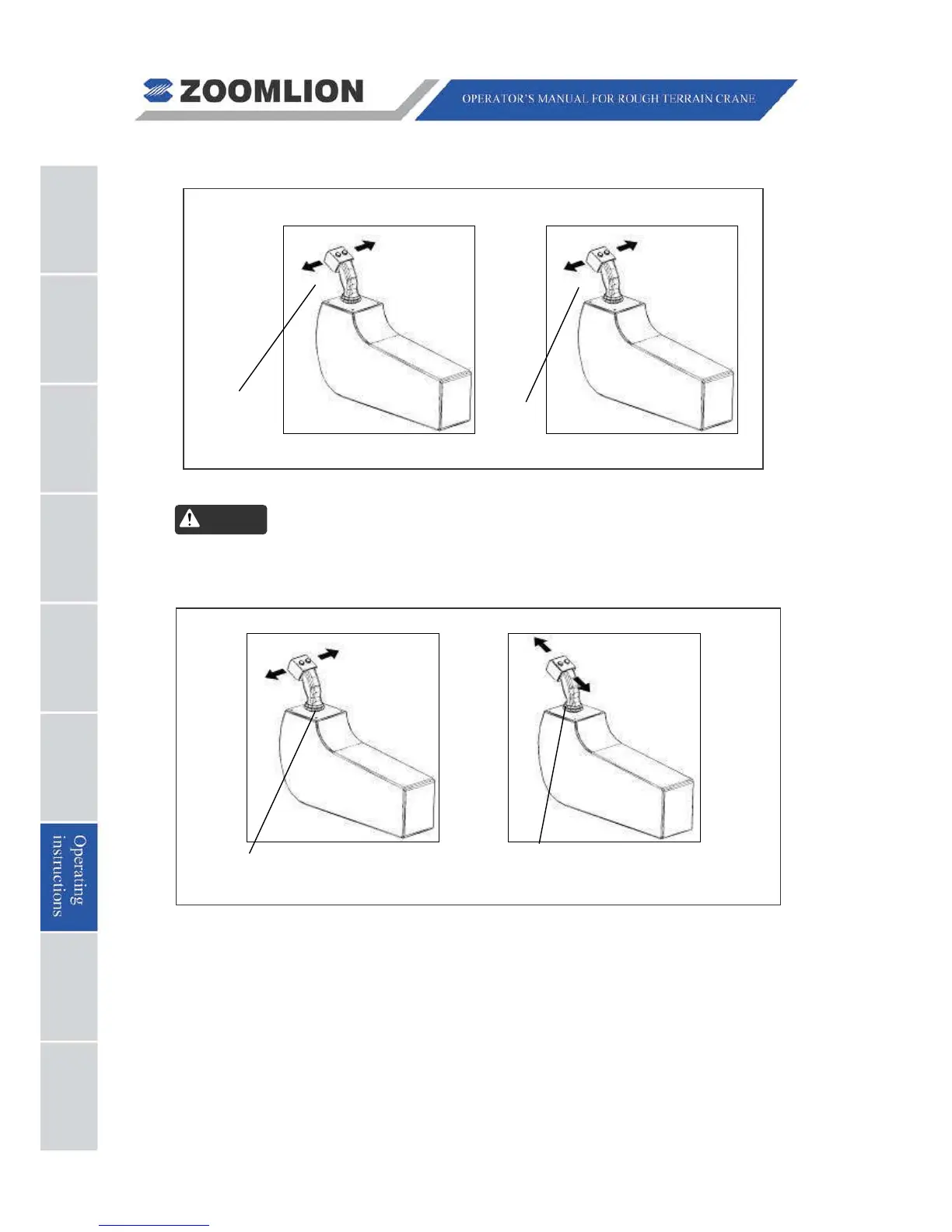

Fig. 07 – 31
Move left and right joysticks at a time to initiate required crane movements.
Pay attention to avoid the load colliding with outriggers.
SWING + MAIN WINCH
Fig. 07 – 31
Move left and right joysticks at a time to initiate required crane movements.
Caution
Move right to swing right
Move left to swing left
Move right to luff boom down
Move right to
luff boom up
Left joystick
Right joystick
Move right to swing right
Move left to swing left
Move forward to pay out
main winch rope
Move backward to take in
main winch rope
Left joystick
Right joystick
