Zoomlion RT60 User Manual

RT60 Rough Terrain Crane 07 - 35

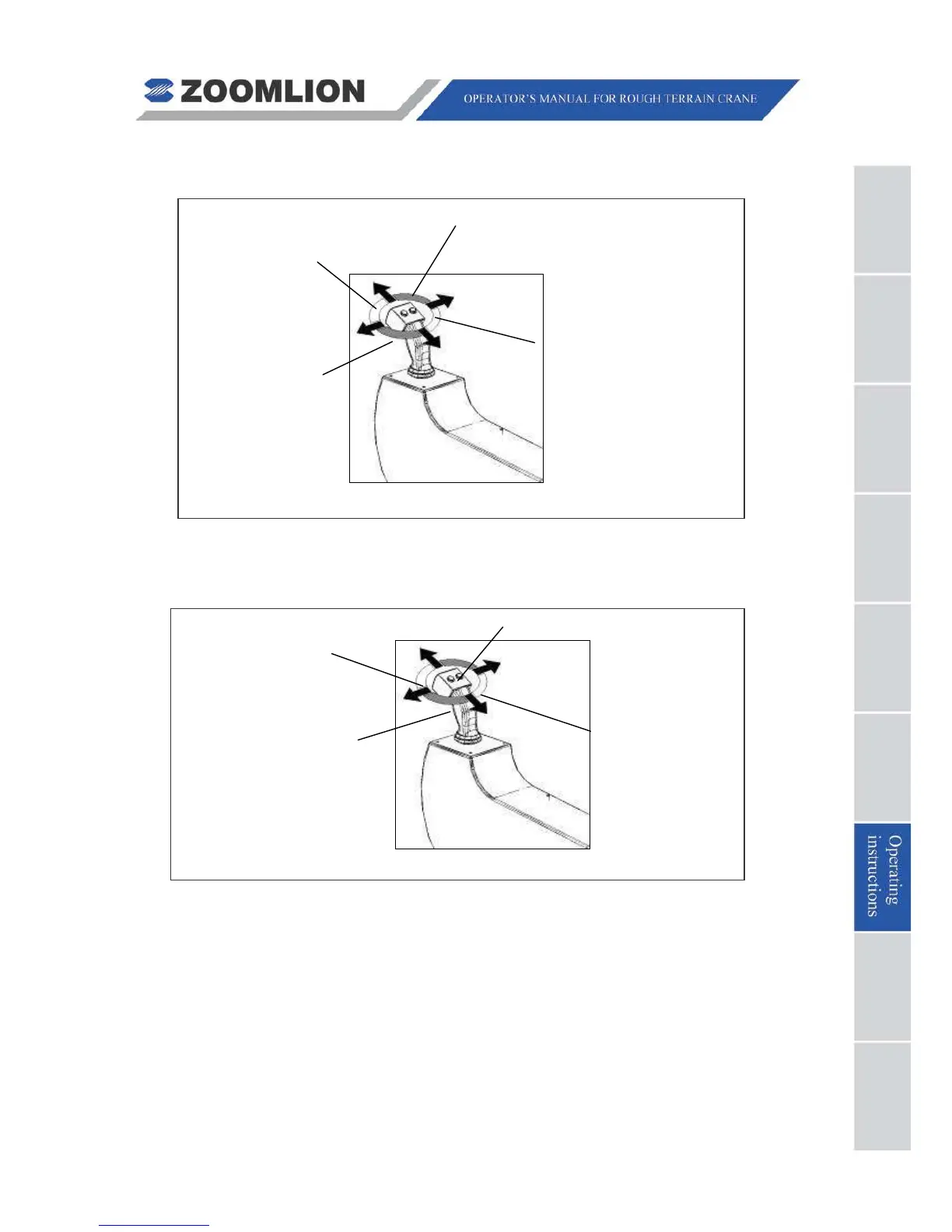

LUFF + MAIN WINCH
Fig. 07 – 32
Move the right joystick between any two adjacent arrows to initiate required crane
movements.
SWING + AUXILIARY WINCH
Fig. 07 – 33
Move the left joystick between any two adjacent arrows to initiate required crane movements.
Luff boom down /
Take in main winch
rope
Luff boom down / Pay out
main winch rope
Luff boom up /
Pay out main
winch rope
Luff boom up /
Take in main
winch rope
Take in aux. winch
rope / Swing to right
Pay out aux. winch
rope / Swing to right
Pay out aux. winch
rope / Swing to left
Take in aux. winch
rope / Swing to left
